Front Brake Pads: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid
PM-1-C (US); CPM-1-C (Canada)
WSS-M6C62-A or WSS-M6C65-A1

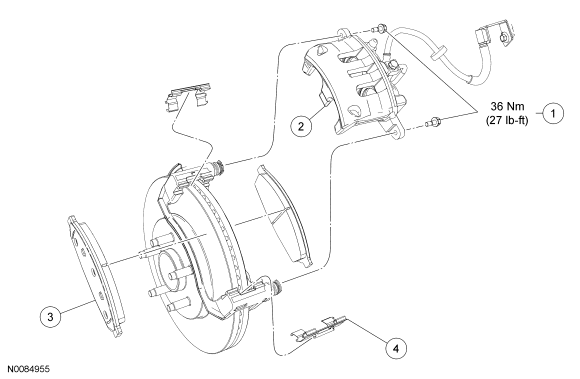

Fig 1: Replacing Brake Pads With Torque Specifications
GF0046748Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2N386 Brake caliper bolts (2 required)
2 2B120 Brake caliper
3 2001 Brake pad (2 required)
4 - Stainless steel slide (2 required) (part of 2001)
