Accelerator Pedal and Bracket: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

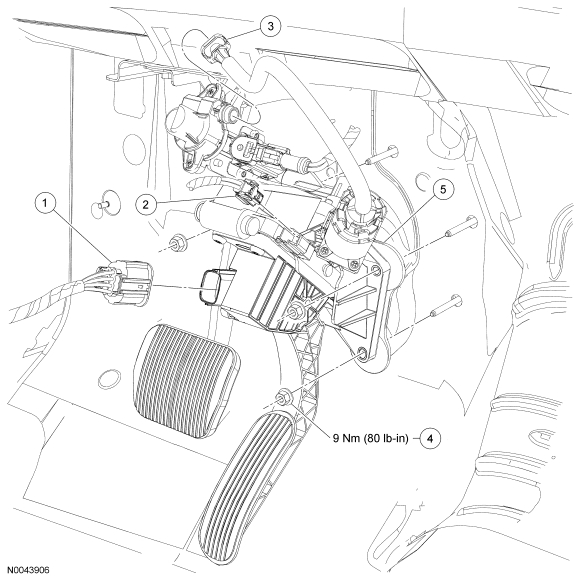

Fig 1: Adjustable Accelerator Pedal And Bracket Without Memory With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Accelerator pedal sensor electrical connector
2	14489	Accelerator pedal motor electrical connector
3	9825	Accelerator pedal motor drive cable connector
4	N806385	Accelerator pedal and bracket nut (3 required)
5	9F836	Accelerator pedal and bracket

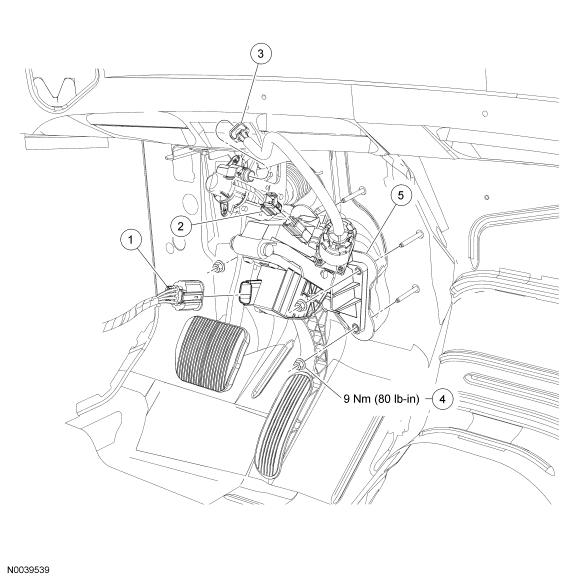

Fig 2: Adjustable Accelerator Pedal and Bracket With Memory With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Accelerator pedal sensor electrical connector
2	14489	Accelerator pedal motor electrical connector
3	9825	Accelerator pedal motor drive cable connector
4	N806385	Accelerator pedal and bracket nut (3 required)
5	9F836	Accelerator pedal and bracket
