Block Heater: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

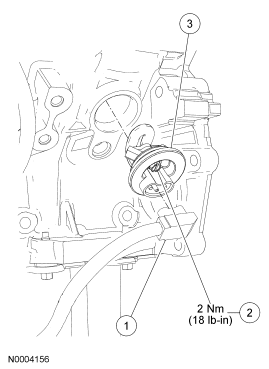

Fig 1: Exploded View Of Block Heater With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6B019	Block heater electrical connector
2	6A051	Block heater retaining screw
3	6A051	Block heater
