Removal & Installation: Radiator: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

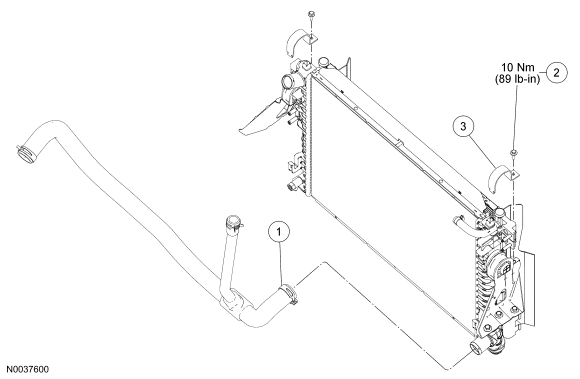

| Item |
Part Number |
Description |
| 1 |
8B273 |
Lower radiator hose |
| 2 |
W505424 |
Radiator support bracket bolt (2 required) |
| 3 |
8A194 |
Radiator support bracket (2 required) |
Courtesy of FORD MOTOR CO.

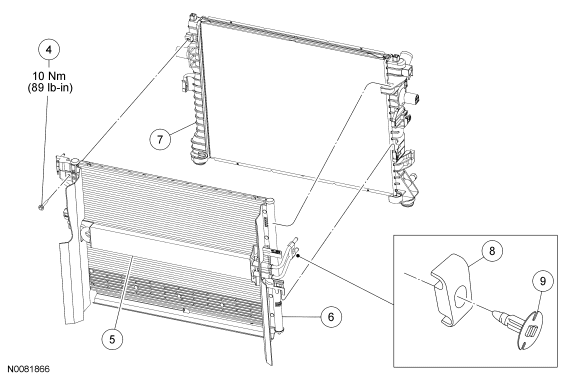

| Item |
Part Number |
Description |
| 4 |
W505428 |
A/C condenser-to-radiator bolt |
| 5 |
3D746 |
Power steering fluid cooler |
| 6 |
19E908 |
A/C condenser |
| 7 |
8005 |
Radiator |
| 8 |
- |
Power steering fluid cooler tube bracket |
| 9 |
41201 |
Power steering fluid cooler tube bracket pin-type retainer |
