Engine Front Cover: Material

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
ITEM SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Fig 1: Exploded View Of Engine Front Cover (1 Of 2)
G03990114Courtesy of FORD MOTOR CO.

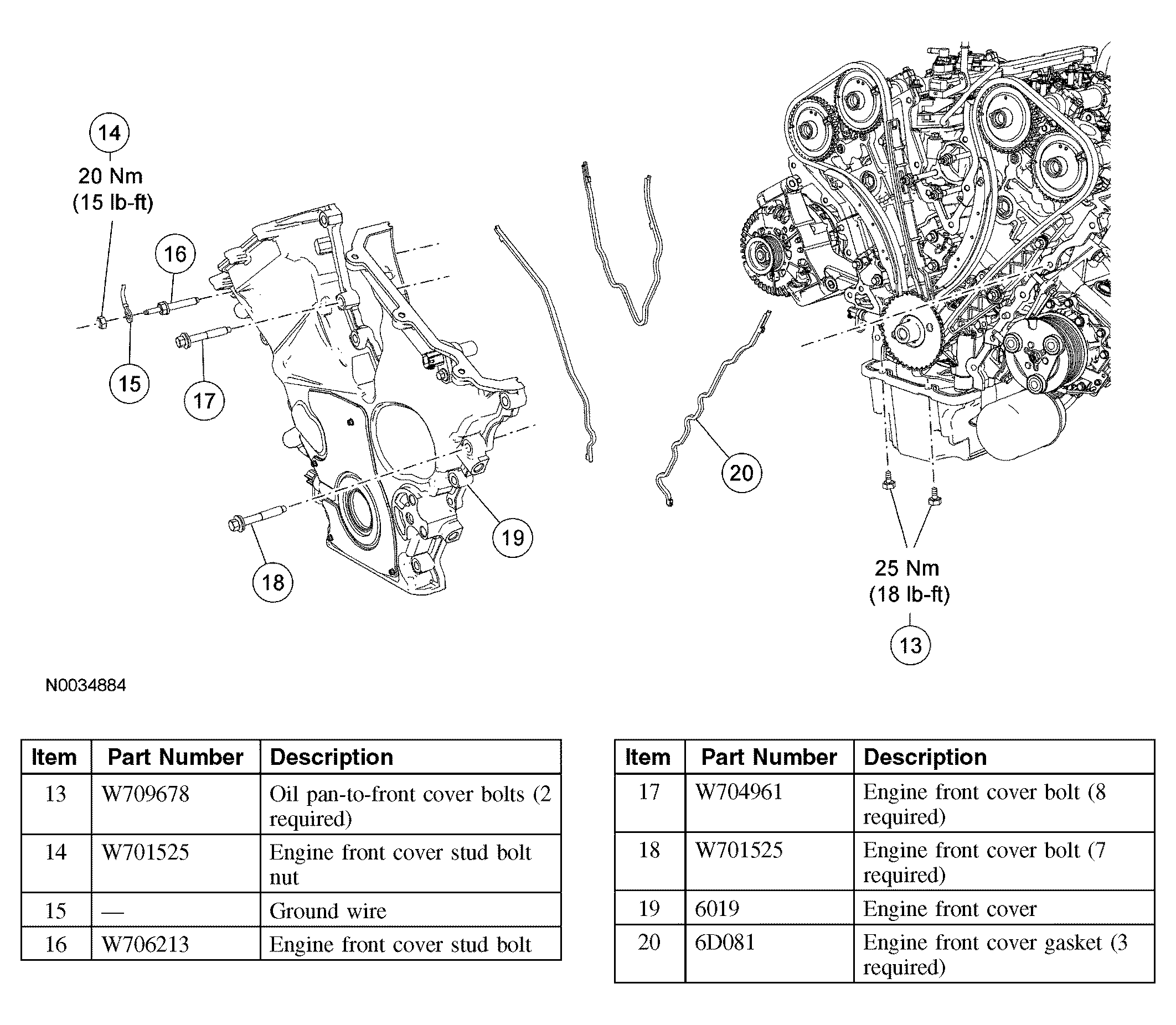

Fig 2: Exploded View Of Engine Front Cover (2 Of 2)
G03990115Courtesy of FORD MOTOR CO.
