Lower Intake Manifold: Installation
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
- Position the lower intake manifold.
- Connect the fuel charging wiring harness electrical connector.
- Connect the fuel rail pressure and temperature sensor electrical connector and vacuum tube.
- Connect the fuel tube to the fuel rail.

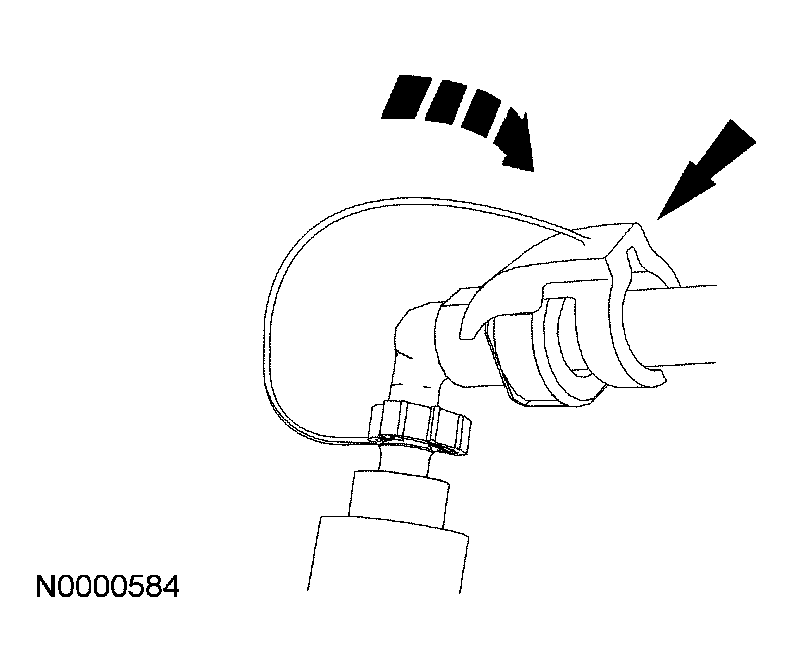

- Connect the fuel tube redundant clip.
- Install the upper intake manifold. For additional information, refer to UPPER INTAKE MANIFOLD .
- Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
NOTE:
Clean and inspect all sealing surfaces. Install new gaskets.
CAUTION:
Make sure that the fuel tube coupling clicks into place when installing the tube. To make sure that the fuel tube is fully seated, pull on the tube.
NOTE:
Apply clean engine oil to the end of the tube before inserting a tube into the connector.
