Timing Drive Components: Removal

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
CAUTION: Failure to verify correct timing drive component alignment will result in severe engine damage.
  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  2. CAUTION: This pulse wheel is used in several different engines. Install the pulse wheel with the keyway in the slot stamped "30" or "30RFF" (orange in color).
    Fig 1: Identifying Ignition Pulse Wheel
    G03898322Courtesy of FORD MOTOR CO.
  3. Remove the ignition pulse wheel.
  4. Install the damper bolt.
    Fig 2: Installing Damper Bolt
    G03898296Courtesy of FORD MOTOR CO.
  5. Remove the LH and RH spark plugs.
  6. Rotate the crankshaft clockwise to position the crankshaft keyway in the 11 o'clock position and position the camshafts in the correct position. This will position the No. 1 cylinder at top dead center (TDC).
    • Verify that the camshafts are correctly located. If not, rotate the crankshaft one additional turn and recheck.
      Fig 3: Rotating Crankshaft
      G03898298Courtesy of FORD MOTOR CO.
  7. Rotate the crankshaft clockwise 120 degrees to the 3 o'clock position to locate the RH camshafts in the neutral position.
    Fig 4: Identifying Crankshaft Keyway
    G03898299Courtesy of FORD MOTOR CO.
  8. Verify that the RH camshafts are in the neutral position.
    Fig 5: Aligning Camshafts
    G03898496Courtesy of FORD MOTOR CO.

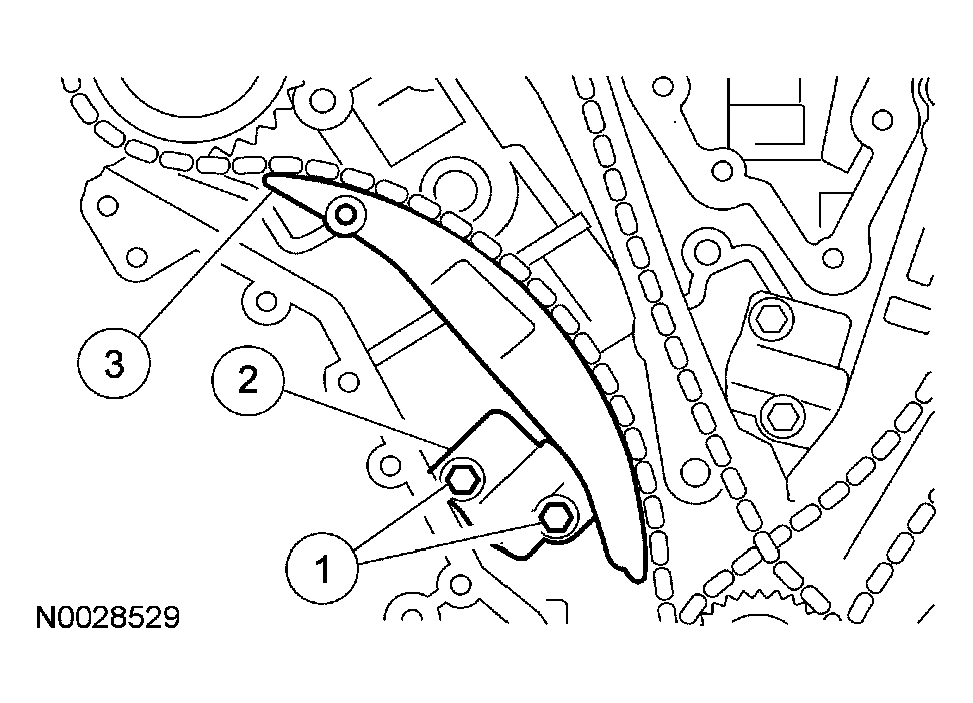

  9. Remove the RH timing chain tensioner arm.
    1. Remove the bolts.
    2. Remove the tensioner.
    3. Remove the tensioner arm.
      Fig 6: Removing RH Timing Chain Tensioner Arm
      G03898301Courtesy of FORD MOTOR CO.
  10. Remove the bolts, RH timing chain guide and the timing chain.
    Fig 7: Removing Bolts
    G03898302Courtesy of FORD MOTOR CO.
  11. Rotate the crankshaft clockwise 600 degrees (1-2/3 turns) to position the crankcase key way in the 11 o'clock position. This will position the LH camshafts in the neutral position.
    Fig 8: Rotating Crankcase Clockwise
    G03898303Courtesy of FORD MOTOR CO.
  12. Verify the LH camshafts are in the neutral position.
    Fig 9: Aligning Camshafts
    G03955709Courtesy of FORD MOTOR CO.

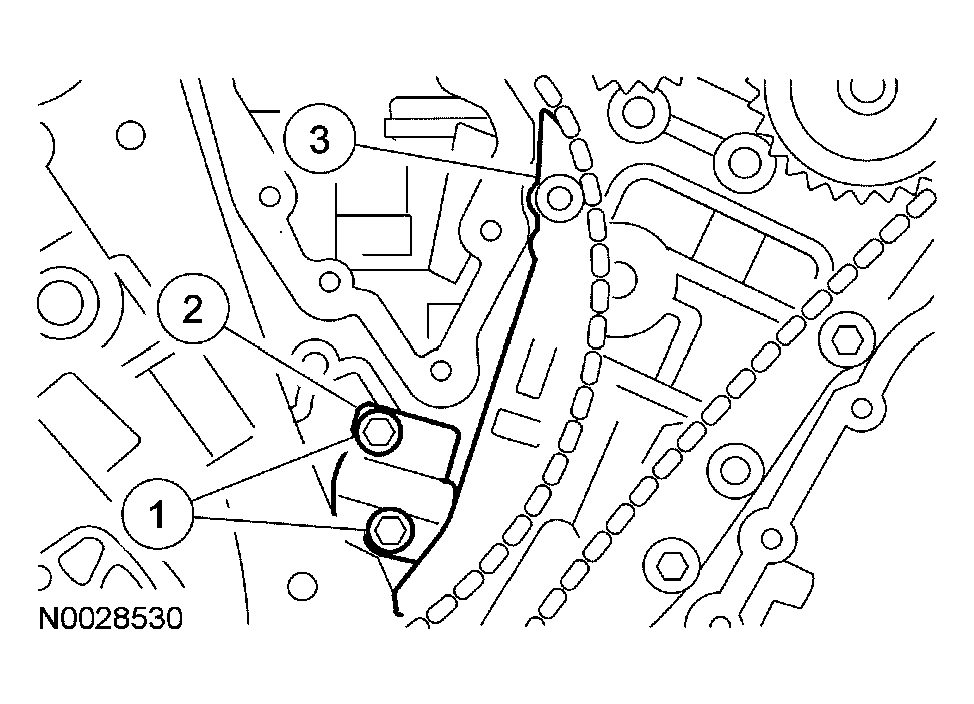

  13. Remove the LH timing chain and tensioner arm.
    1. Remove the bolts.
    2. Remove the tensioner.
    3. Remove the tensioner arm.
      Fig 10: Removing LH Timing Chain And Tensioner Arm
      G03898305Courtesy of FORD MOTOR CO.
  14. Remove the LH timing chain and timing chain guide.
    Fig 11: Removing LH Timing Chain And Timing Chain Guide
    G03898306Courtesy of FORD MOTOR CO.
  15. Remove the damper bolt and the crankshaft sprocket.
    Fig 12: Removing Damper Bolt And Crankshaft Sprocket
    G03898307Courtesy of FORD MOTOR CO.
