WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

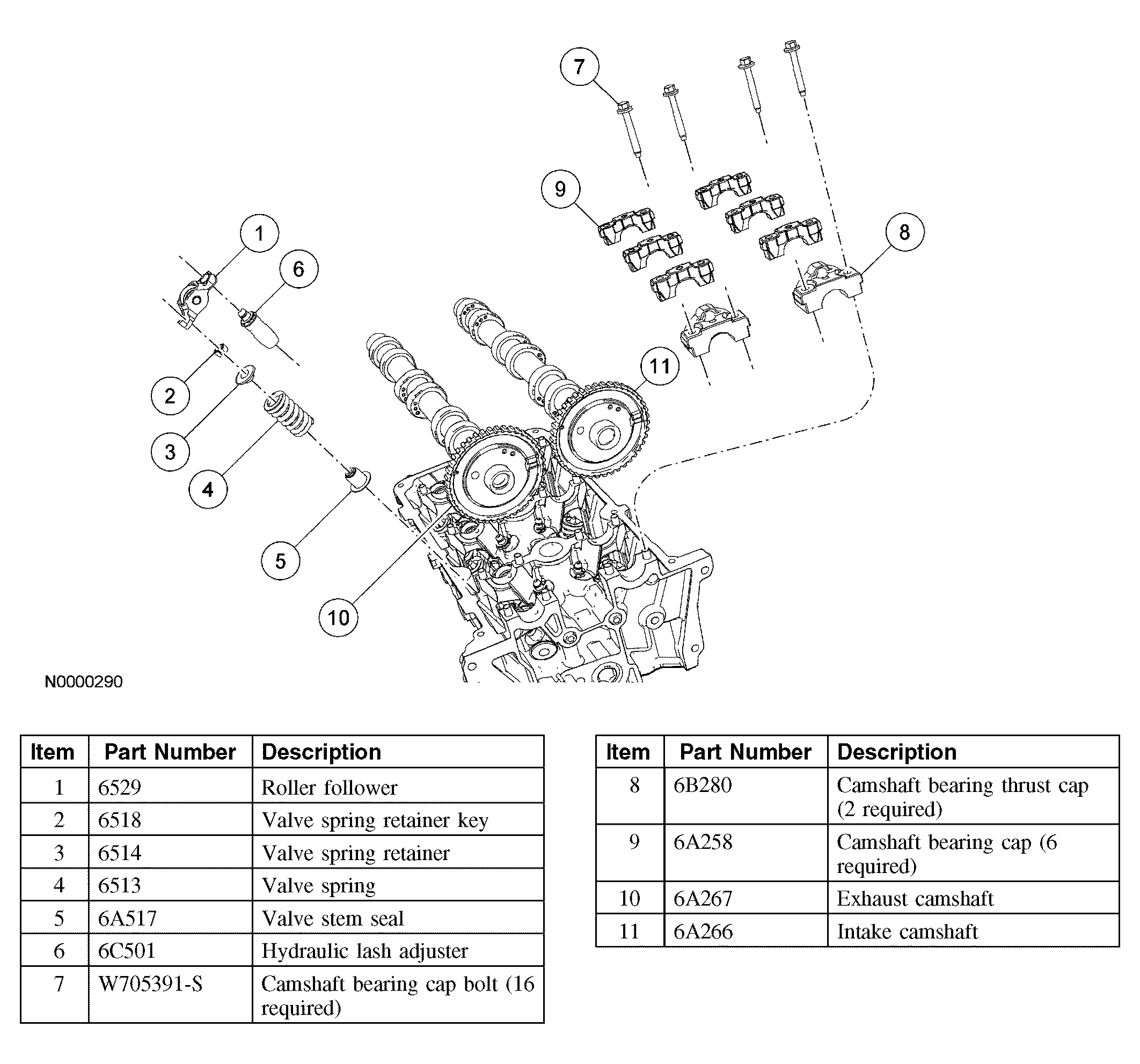

Fig 1: Exploded View Of Valve Train Components - LH
Courtesy of FORD MOTOR CO.

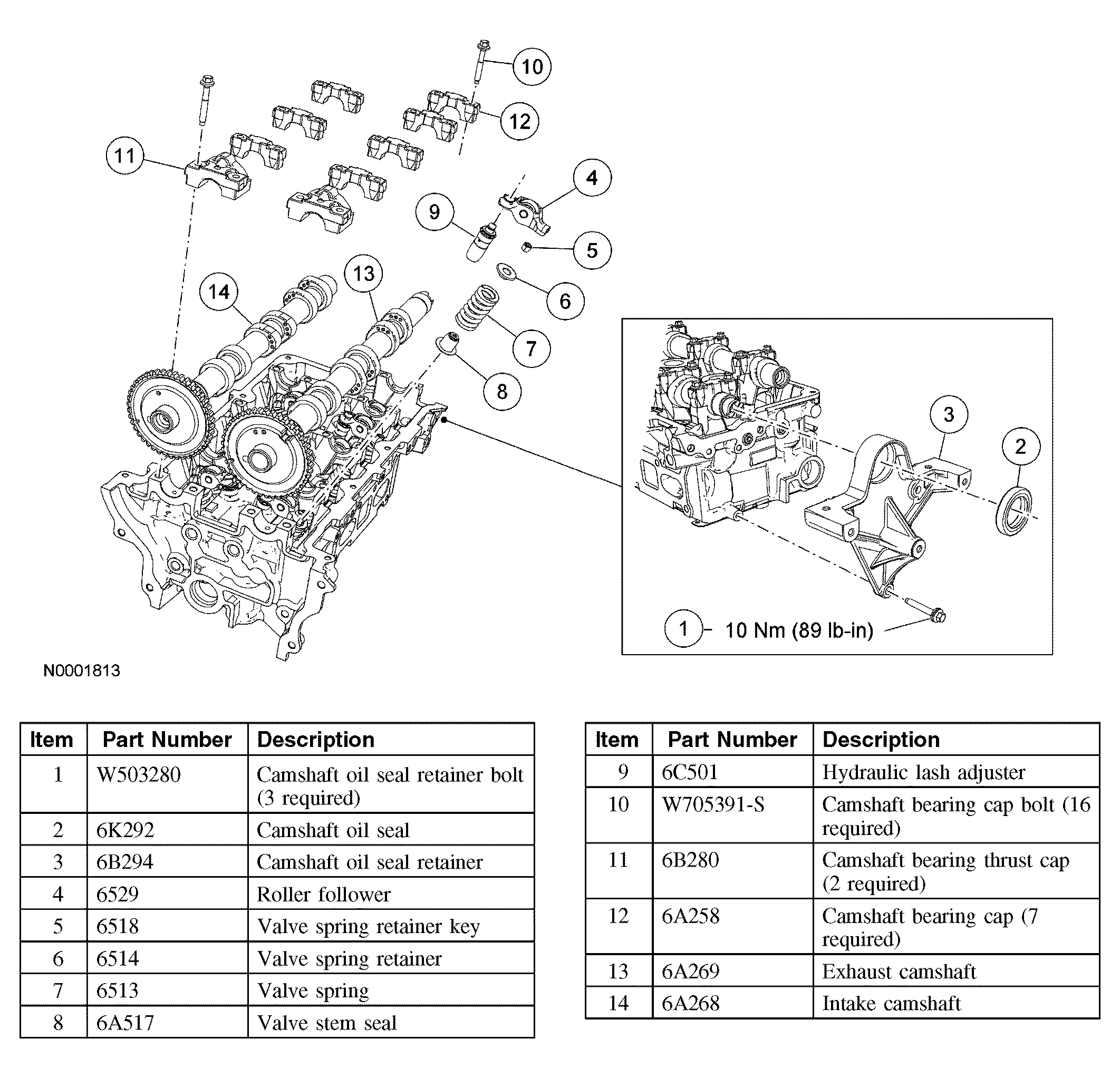

Fig 2: Exploded View Of Valve Train Components - RH
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures below.
