Special Tool(s)
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
AXLE ASSEMBLY SPECIAL TOOLS SPECIFICATIONS

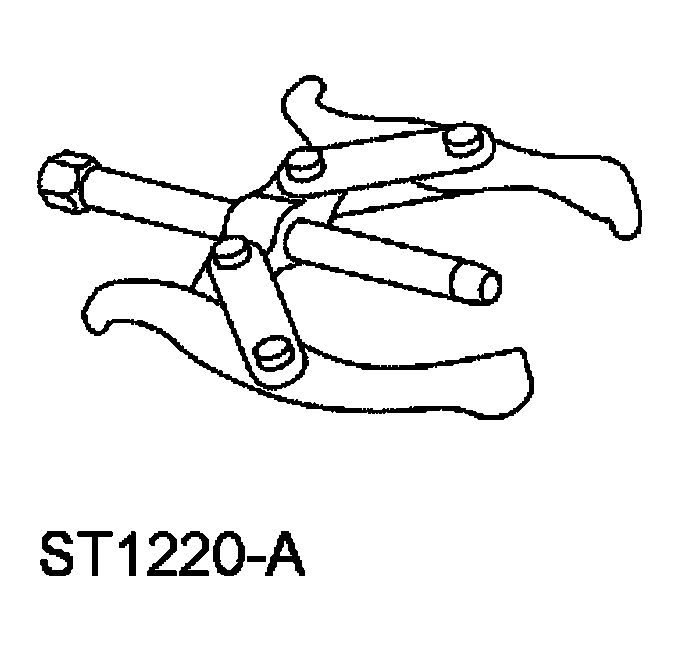

| 2-Jaw Puller 205-116 (T77F-4220-B1) | |
| Depth Gauge/Aligner Depth Pinion 205-477 | |

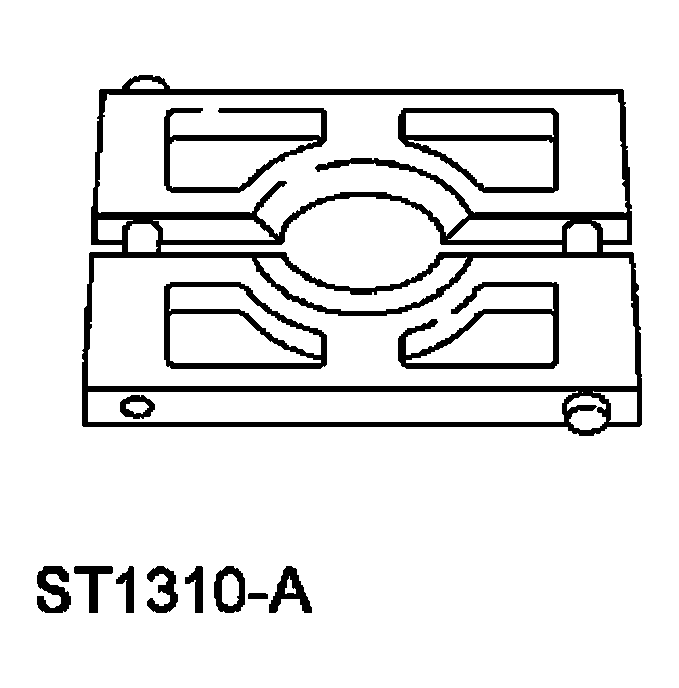

| Plate, Bearing/Oil Seal 205-090 (T75L-1165-B) | |

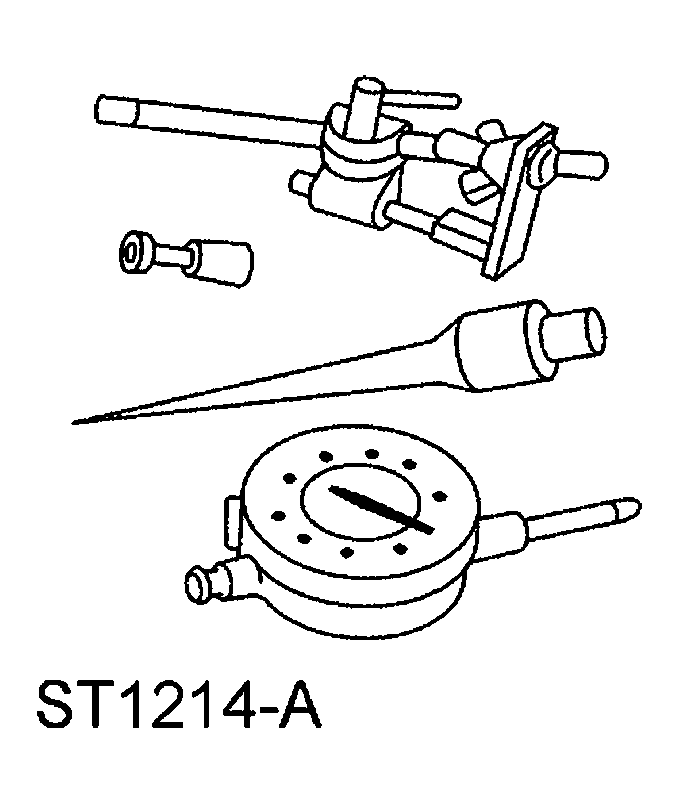

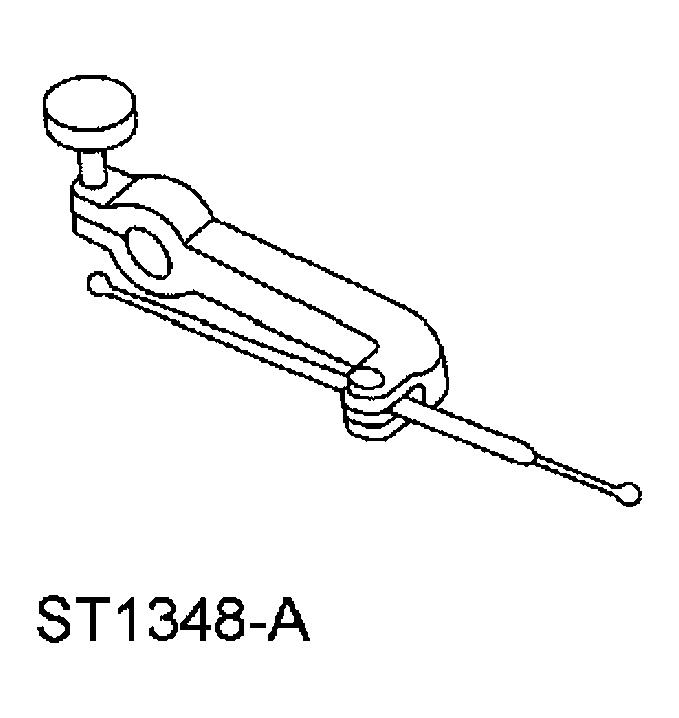

| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent | |
| Adapter for 205-S127 205-110 (T76P-4020-A10) | |
| Gauge Tube, Drive Pinion 205-336 (T93P-4020-A) | |
| Depth Gauge, Drive Pinion 205-476 | |
| Adapter for 205-S127 205-111 (T76P-4020-A11) | |

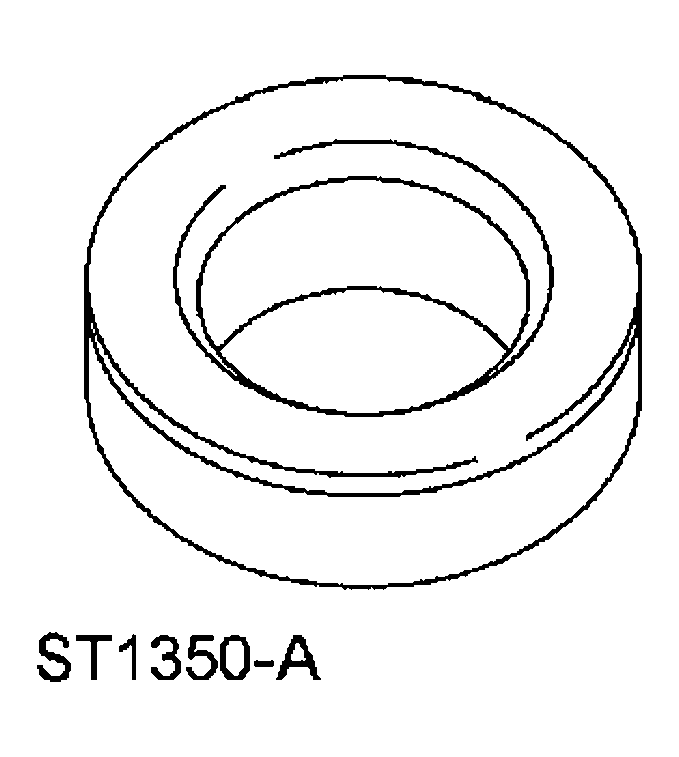

| Installer, Drive Pinion Bearing Cone 205-005 (T53T-4621-C) | |
| Installer, Drive Pinion Bearing Cup 205-024 (T67P-4616-A) | |
| Adapter for 205-S127 205-109 (T76P-4020-A9) | |
| Step Plate 205-D061 (D83T-4205-C2) or equivalent | |
| Remover, Bearing 205-055 (T71P-4621-B) | |
| Holding Fixture, Transmission 307-003 (T57L-500-B) | |

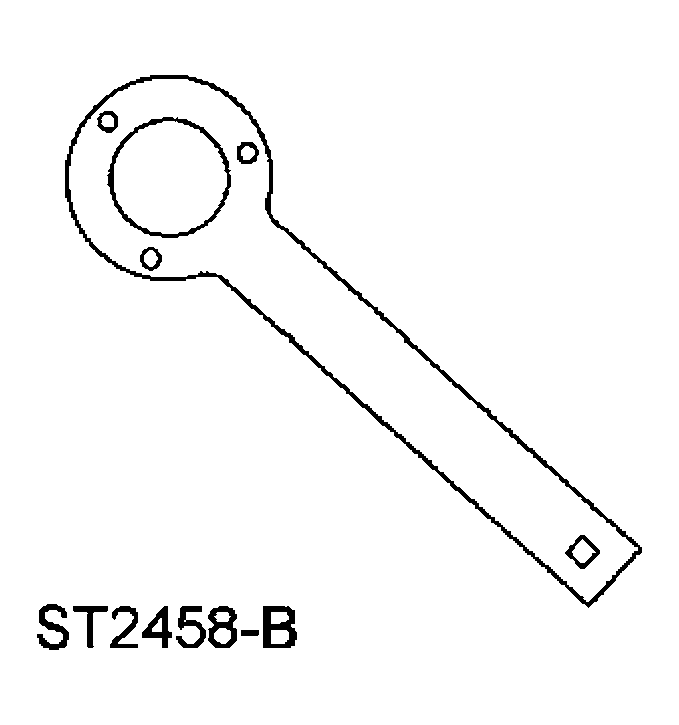

| Holding Fixture, Drive Pinion Flange 205-478 | |
| Installer, Drive Pinion Flange 205-479 | |
| Remover, Output Flange 307-408 | |
| Installer, Drive Pinion Oil Seal 205-208 (T83T-4676-A) | |

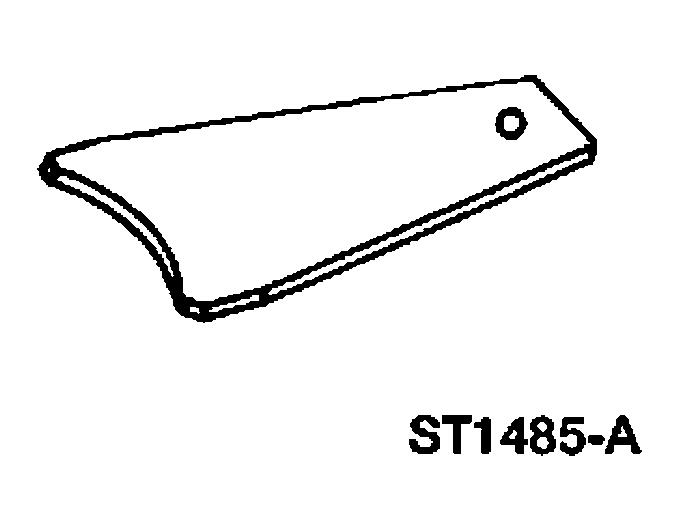

| Gauge, Clutch Housing 308-021 (T75L-4201-A) | |

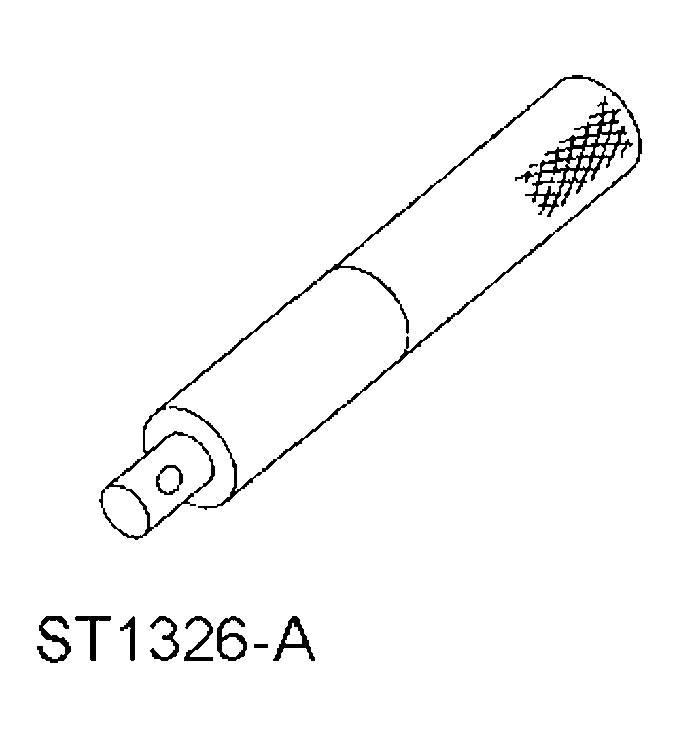

| Adapter for 303-224 (Handle) 205-153 (T80T-4000-W) | |
| Installer, Differential Shim 205-220 (T85L-4067-AH) | |
| Halfshaft Seal Installer 205-539 | |
| Gauge, Differential Bearing 205-540 | |
| Gauge, Differential Bearing 205-541 |
