Datc Module C228A

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

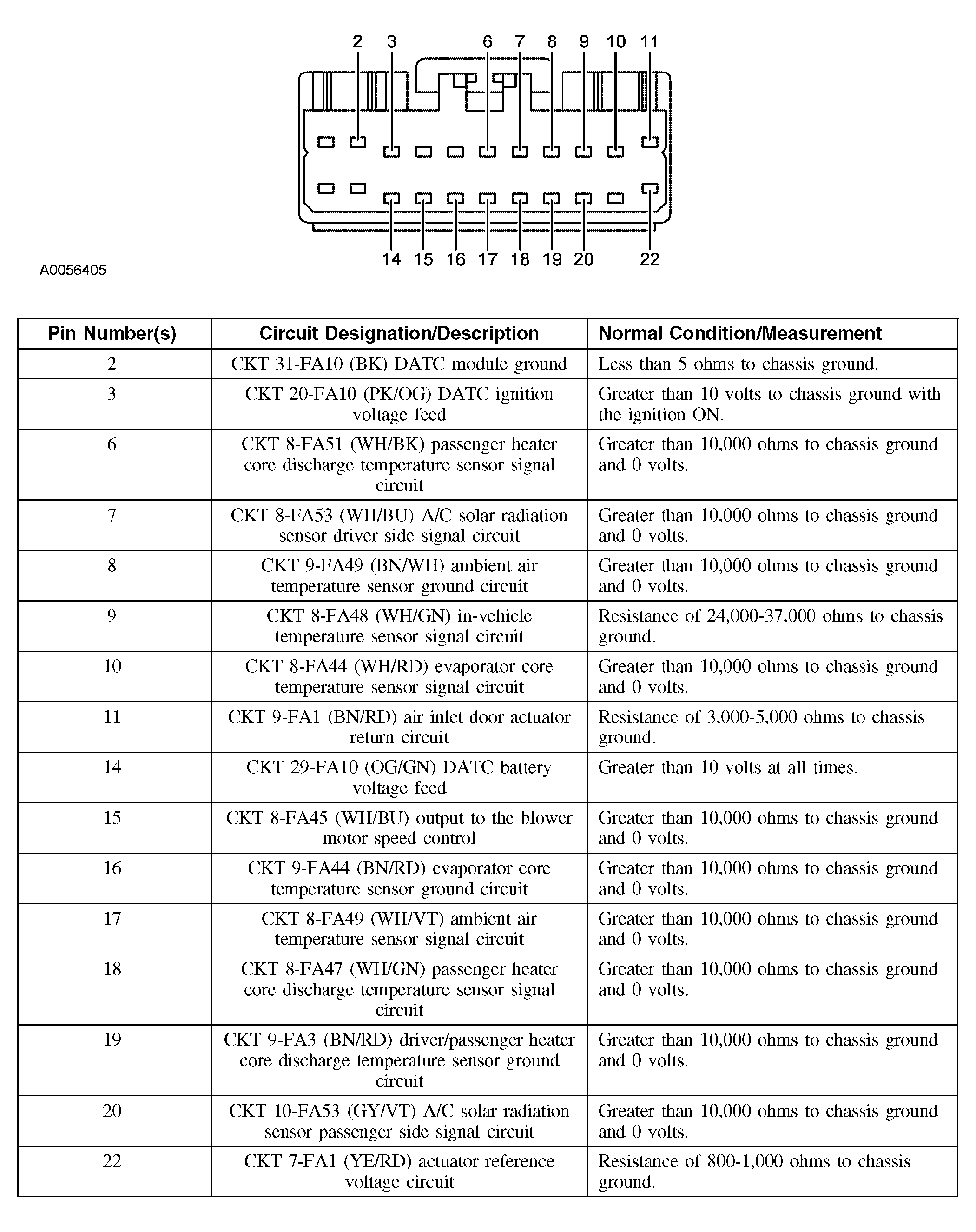

Fig 1: Identifying DATC Module C228A Connector Pins
G03997972Courtesy of FORD MOTOR CO.
