Powertrain Control Module (PCM) C175a

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

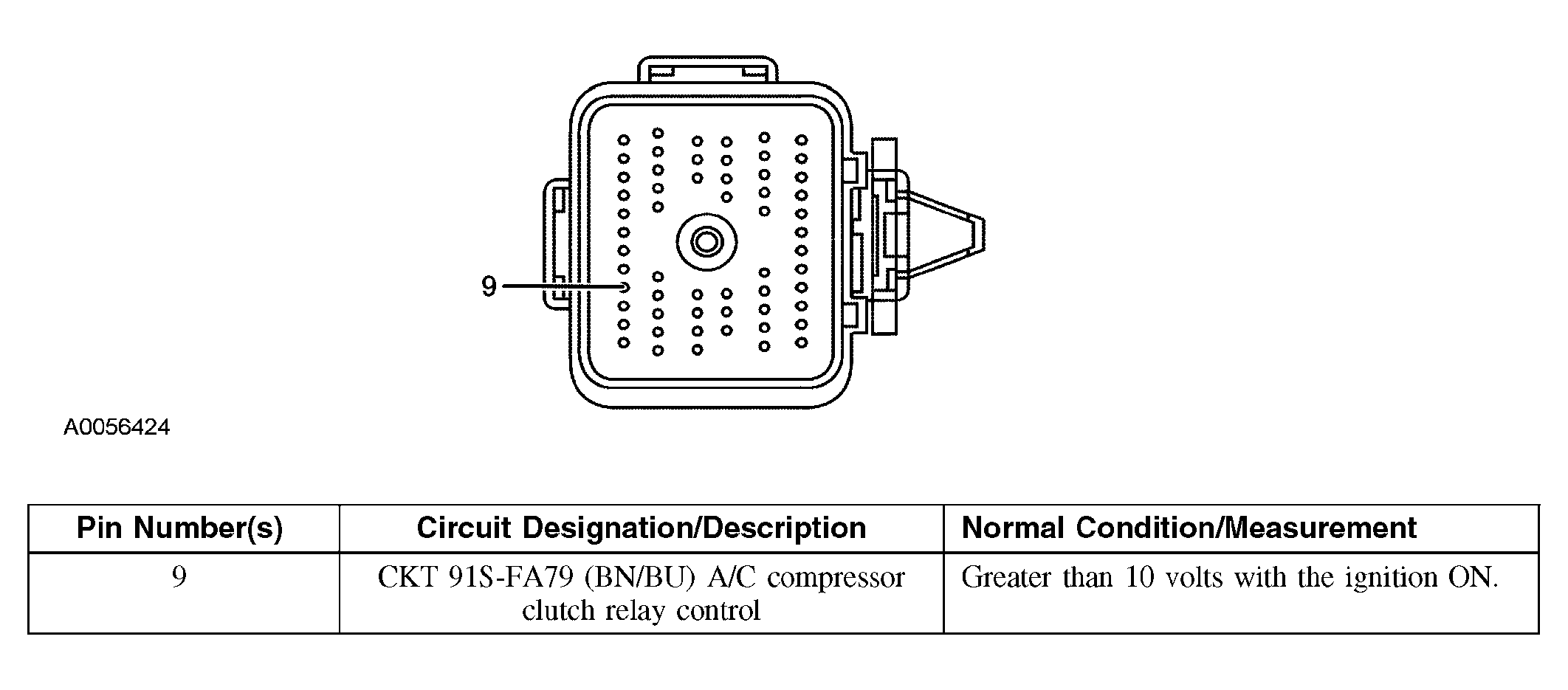

Fig 1: Identifying Powertrain Control Module (PCM) C175a Connector Pins
G03997986Courtesy of FORD MOTOR CO.
