Climate Control System: Notes
WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
Refer to AIR CONDITIONING for schematic and connector information.
CLIMATE CONTROL SYSTEM SPECIAL TOOL SPECIFICATIONS
| Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool |
|
| Fluke 77 III Automotive Meter 105-R0056 or equivalent | |

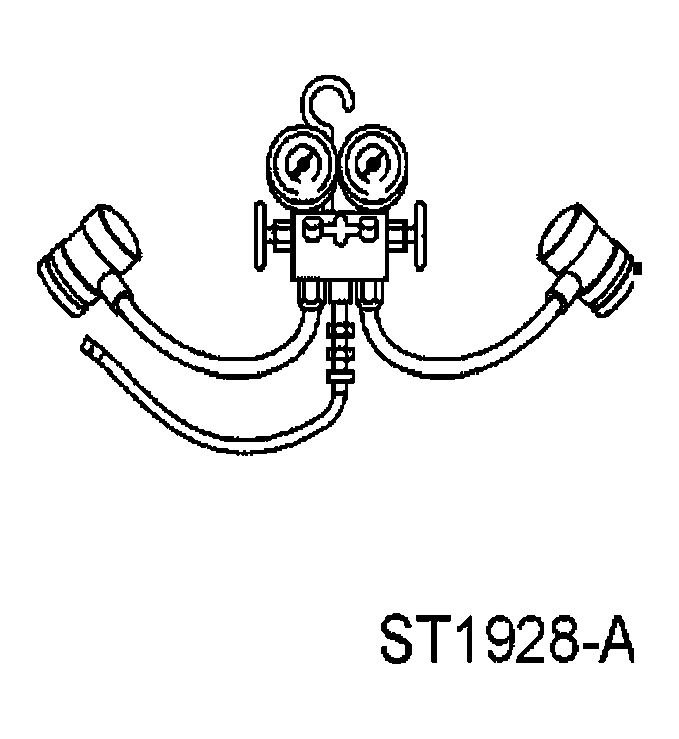

| R-134a Manifold Gauge Set 176-R032A or equivalent | |

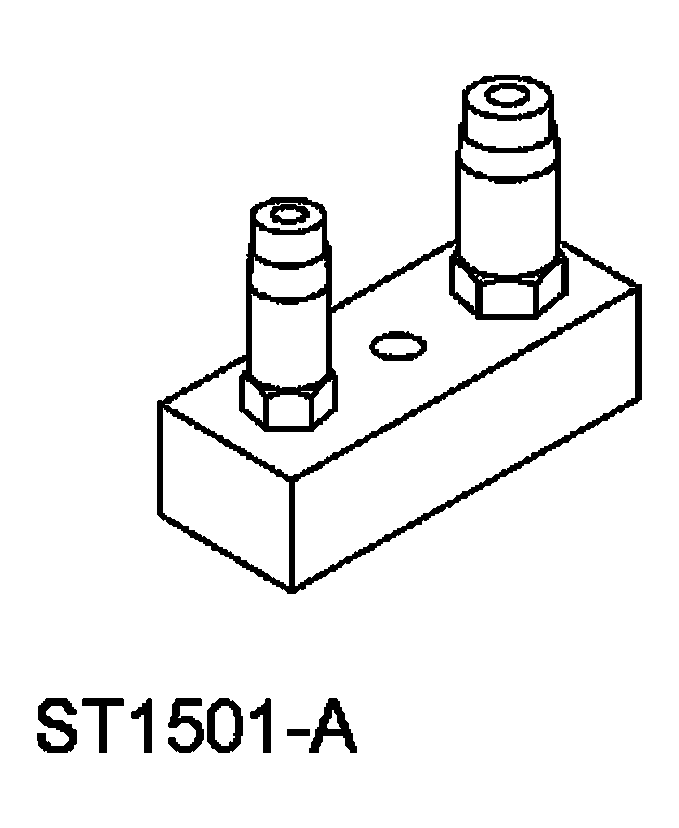

| A/C Pressure Test Adapter 412-093 (T94P-19623-E) | |

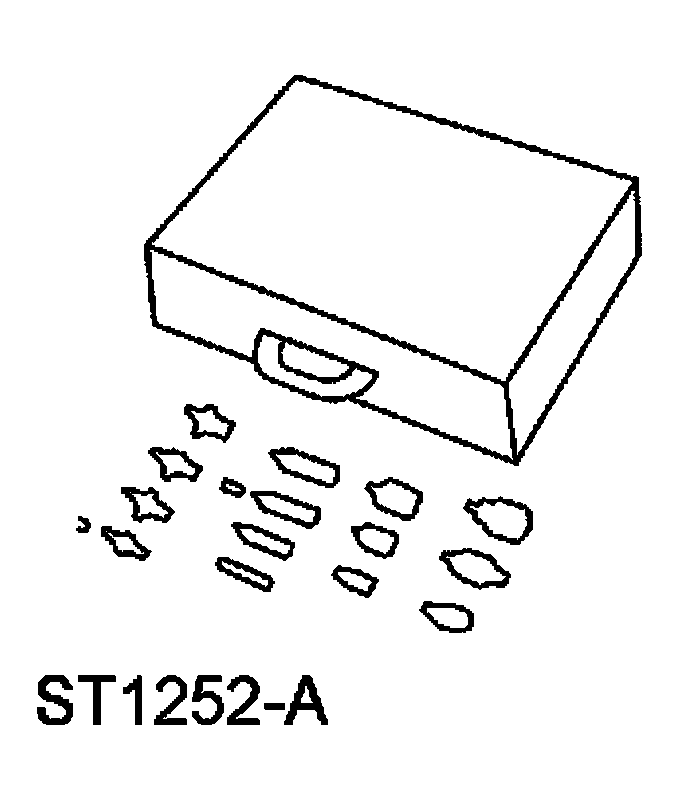

| Set, A/C Fittings 412-DS028 (014-00333, D93L-19703B) or equivalent | |

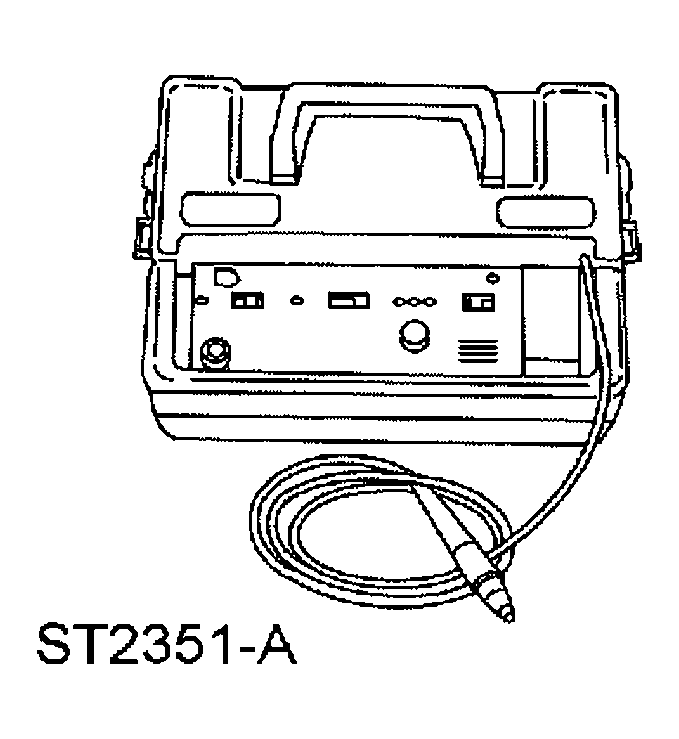

| Refrigerant Leak Detector 216-00001 or equivalent | |

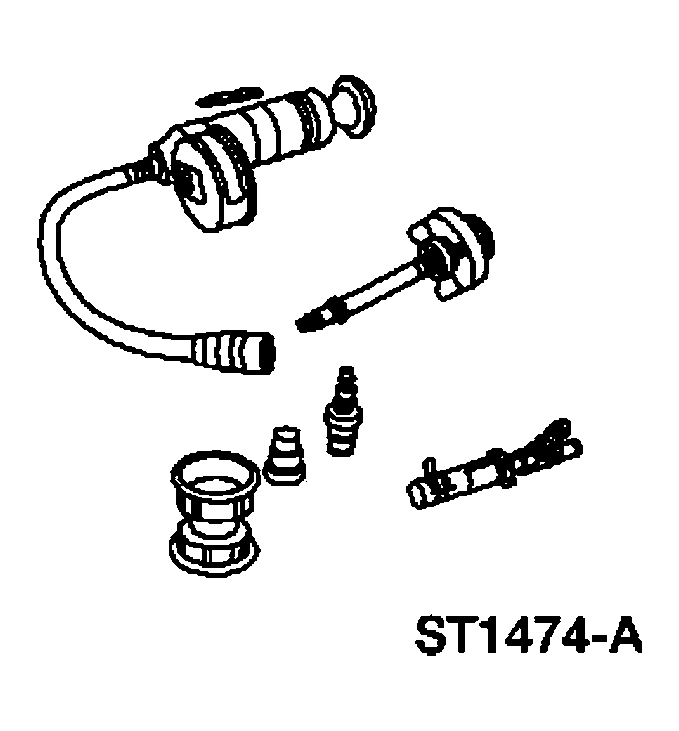

| Pressure Test Kit 014-R1072 or equivalent | |

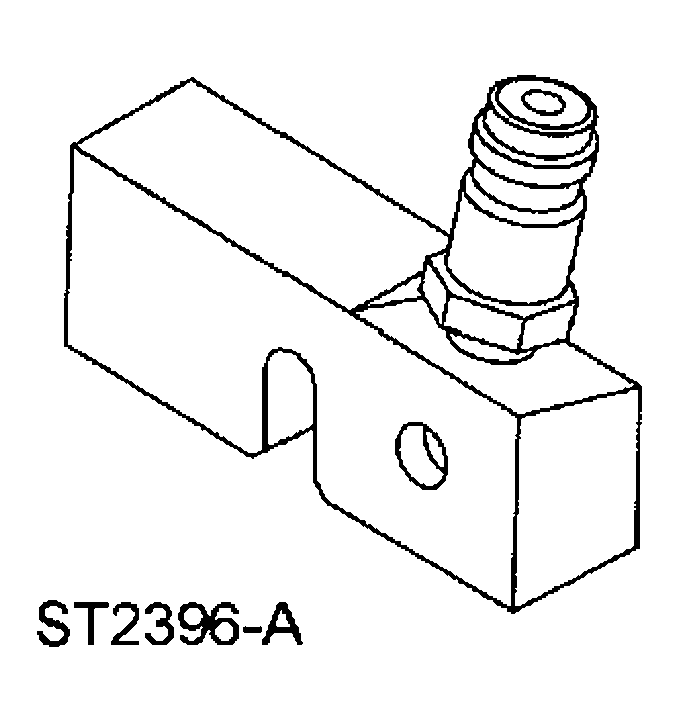

| Vacuum Check Fitting, TXV 412-129 or equivalent |
