Manifold Gauge Set Connection

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

MANIFOLD GAUGE SET CONNECTION SPECIAL TOLL SPECIFICATIONS

R-134a Manifold Gauge Set 176-R032A or equivalent

Turn both valves on the R-134a Manifold Gauge Set clockwise to close the low- and high-pressure hoses to the center manifold and center hose.

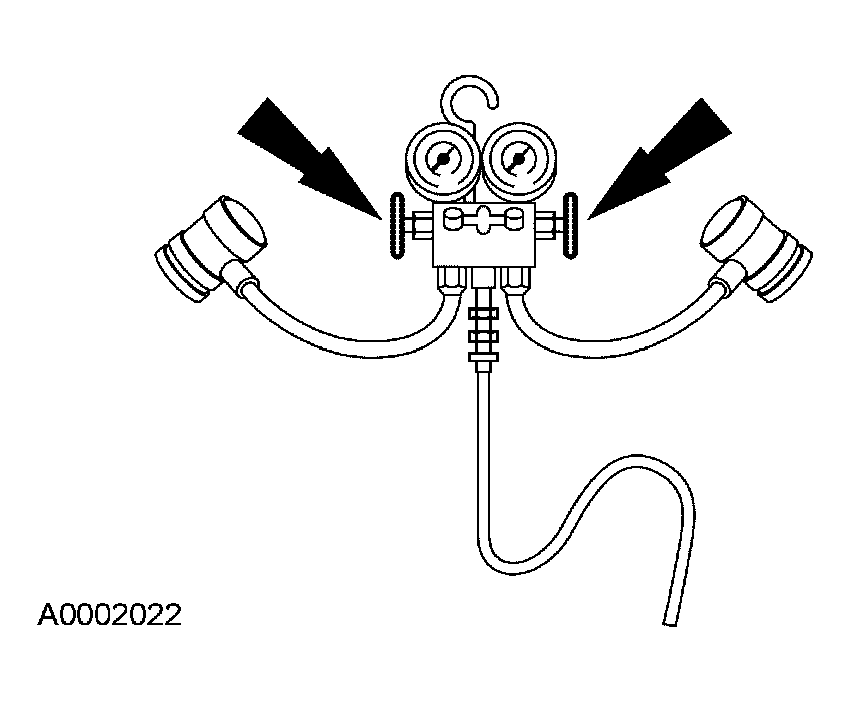

Fig 1: Identifying R-134A Manifold Gauge Set & Valve Handles
Courtesy of FORD MOTOR CO.

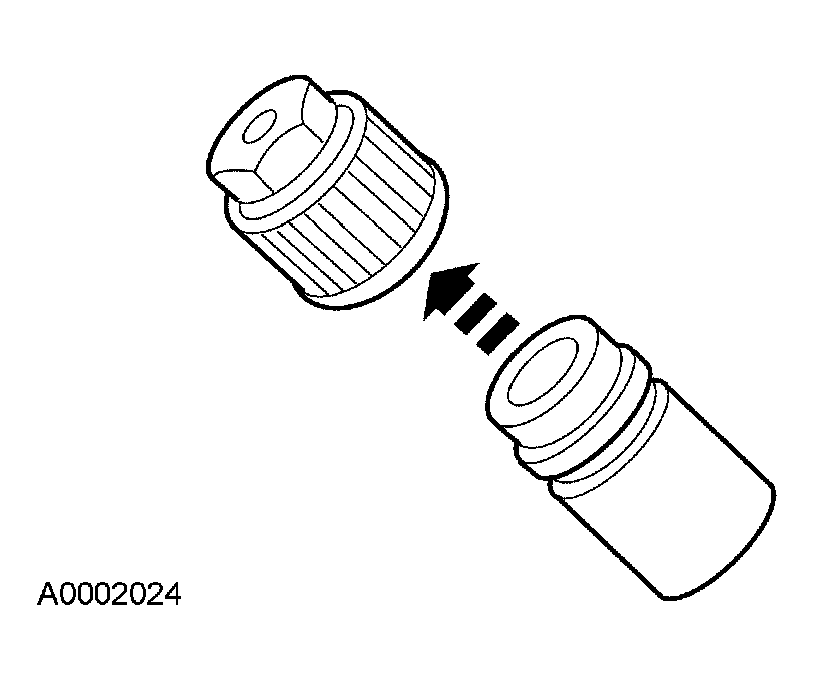

Remove the A/C charging valve cap from the high-pressure service gauge port valve.

Fig 2: Removing A/C Charging Valve Cap - High-Pressure Port
Courtesy of FORD MOTOR CO.

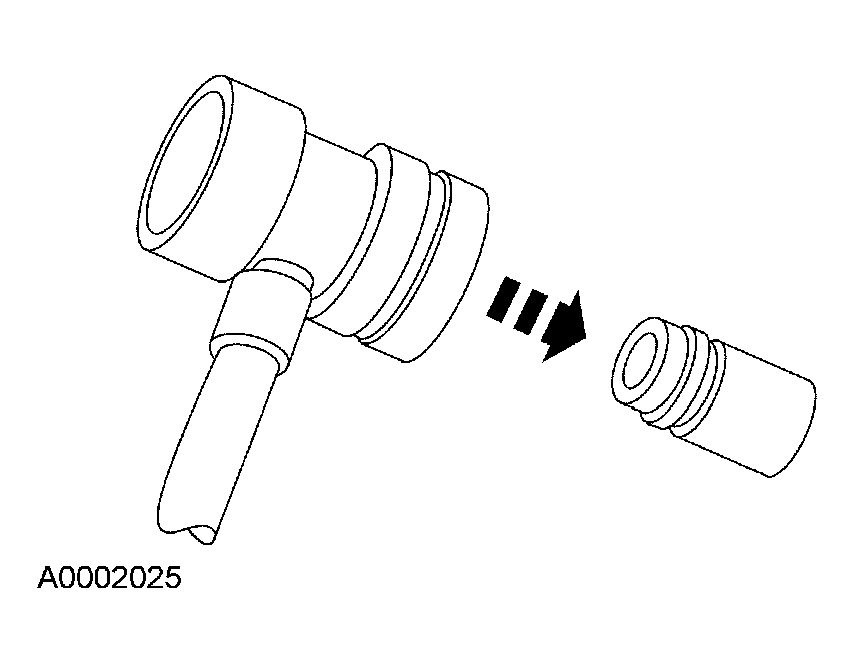

Connect the R-134a Manifold Gauge Set high-pressure hose and the R-134a high side quick disconnect to the high-pressure service gauge port valve.

Fig 3: Connecting R-134A Manifold Gauge Set
Courtesy of FORD MOTOR CO.
Raise the vehicle. For additional information, refer to JACKING & LIFTING .

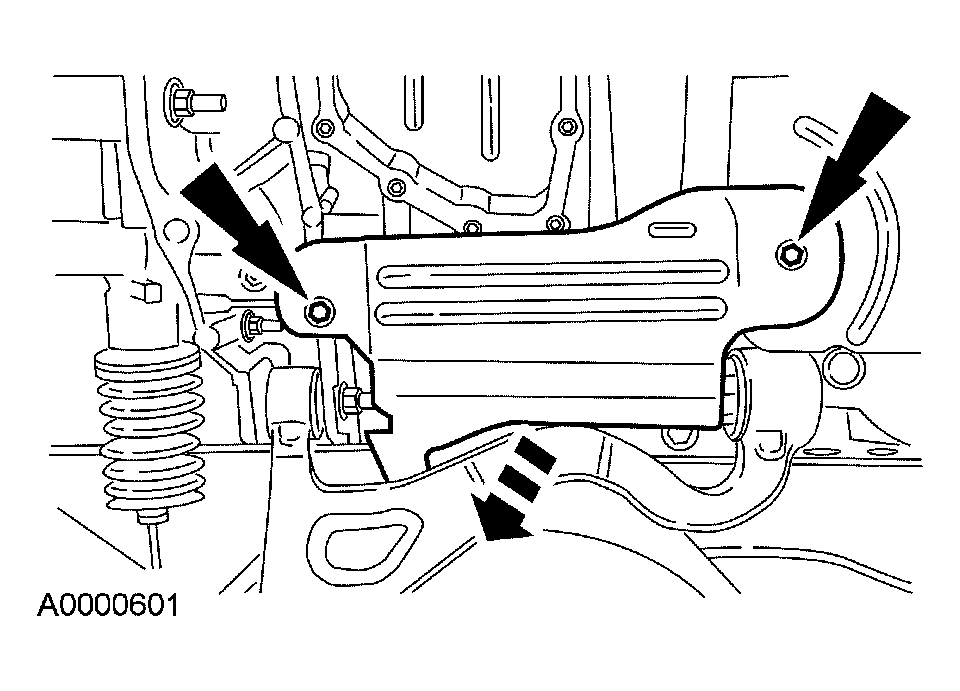

Remove the screws and the left sight shield.

Fig 4: Locating Splash Shields
Courtesy of FORD MOTOR CO.

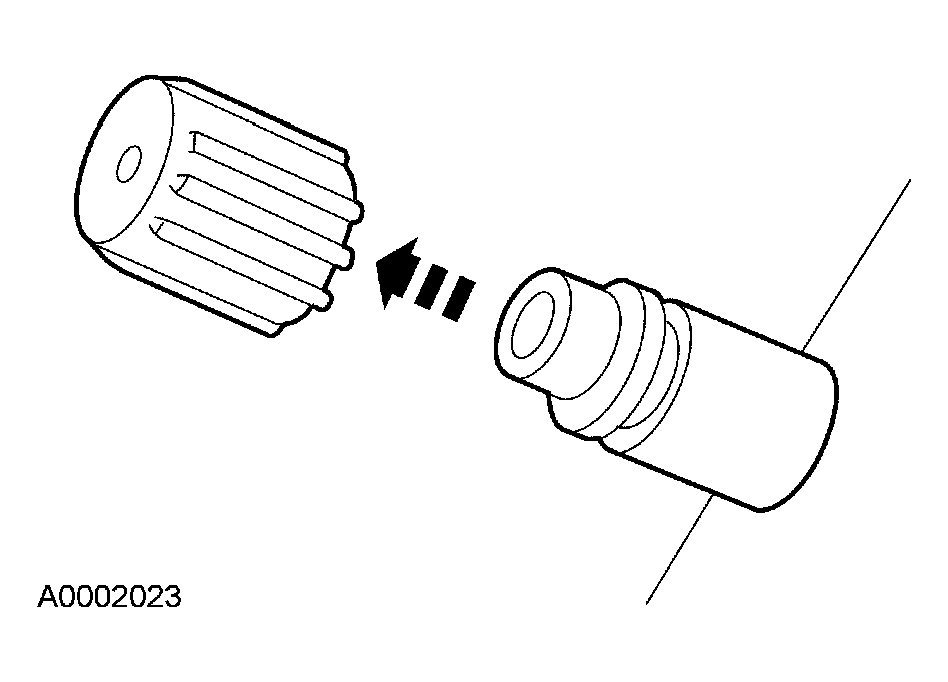

Remove the A/C charging valve cap from the low-pressure service gauge port valve.

Fig 5: Removing A/C Charging Valve Cap - Low Pressure Port
Courtesy of FORD MOTOR CO.
Connect the R-134a Manifold Gauge Set low-pressure hose and the R-134a low side quick disconnect to the low-pressure service gauge port valve.

Fig 6: Connecting R-134A Manifold Gauge Set
Courtesy of FORD MOTOR CO.
To disconnect the manifold and gauge set, reverse the connection procedure.
