Seat Cushion - Front: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S) CHART

Courtesy of FORD MOTOR CO.

Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

NOTE: Power seat track shown, manual seat track similar.

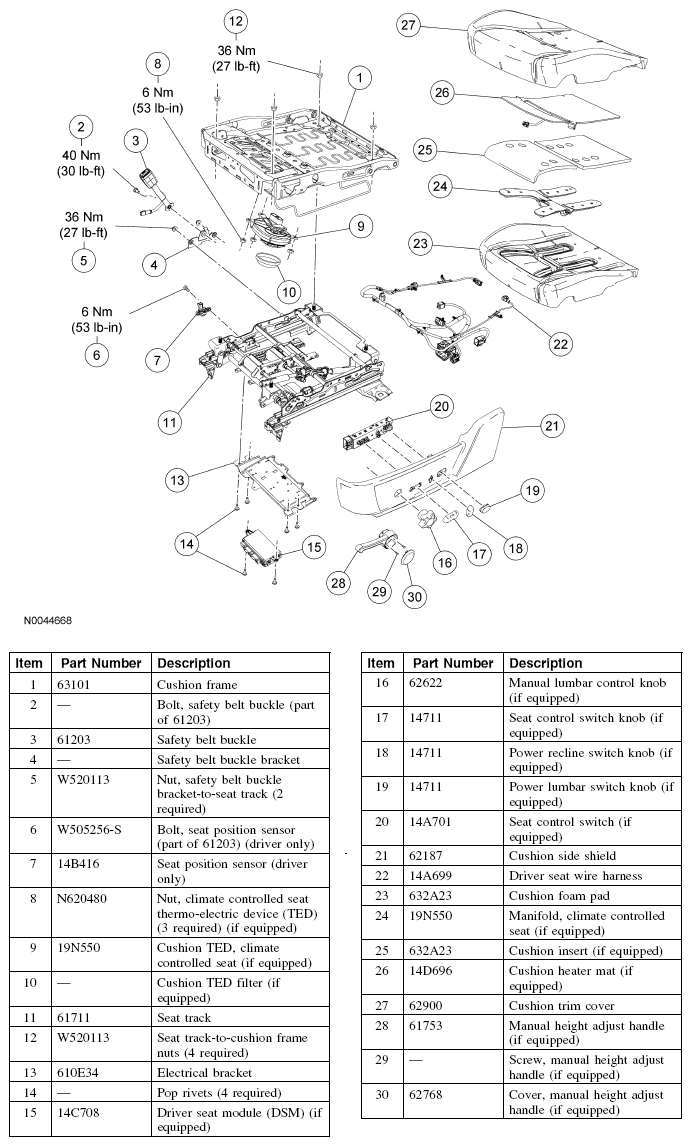

Fig 1: Exploded View Of Front Seat Cushion Driver Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

NOTE: Power seat track shown, manual seat track similar.

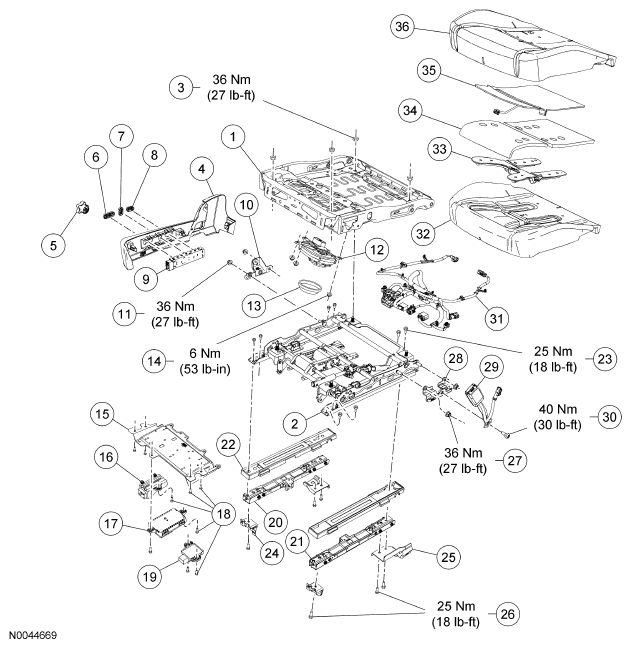

Fig 2: Exploded View Of Front Seat Cushion Passenger Seat Cushion With Torque Specifications

Courtesy of FORD MOTOR CO.

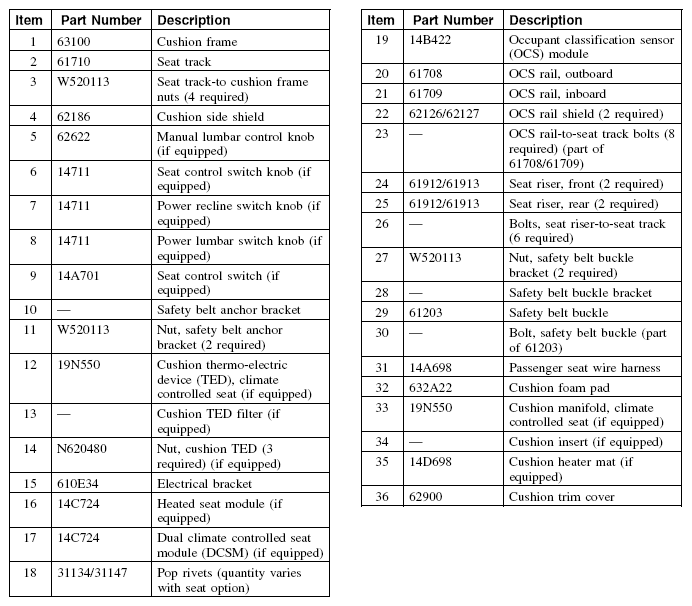

Fig 3: Item Description Of Front Seat Cushion (Passenger Seat Cushion)

Courtesy of FORD MOTOR CO.
