Coil Spring & Strut Assembly: Installation

To install, reverse removal procedure. Install NEW nuts and bolts. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS  . Check front end alignment, and adjust as necessary. See SPECIFICATIONS & PROCEDURES - TRUCKS article in WHEEL ALIGNMENT.

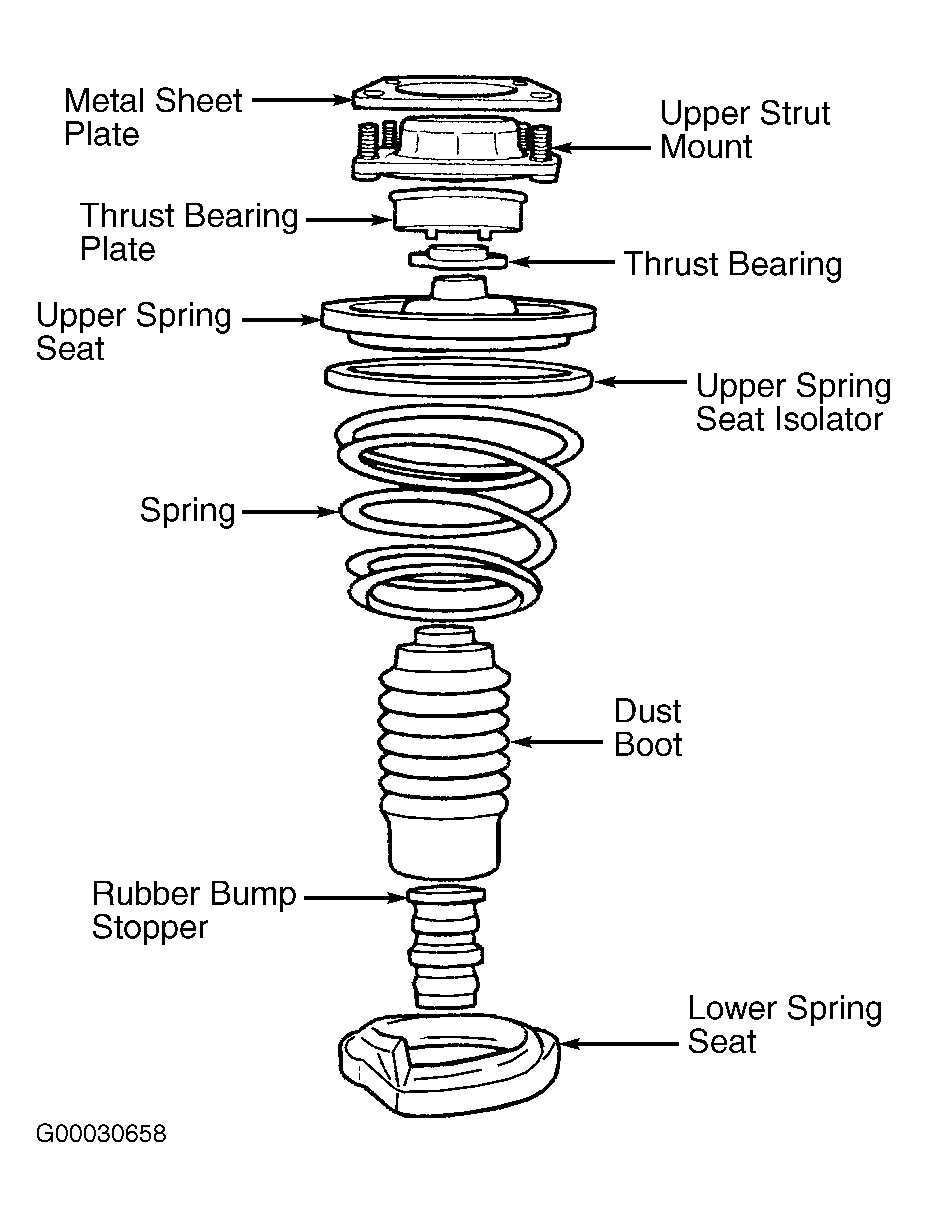

Fig 1: Exploded View Of Strut Spring Assembly (Escape)

Courtesy of FORD MOTOR CO.

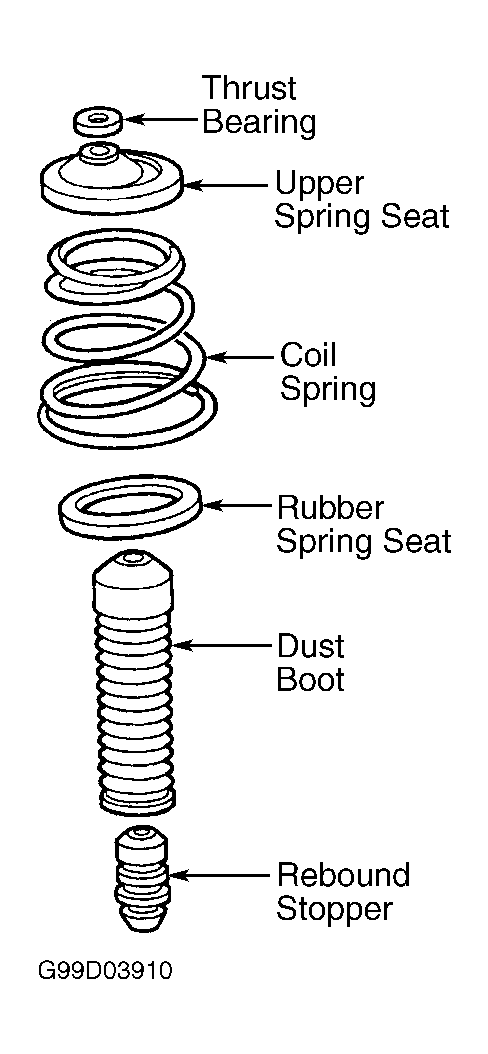

Fig 2: Exploded View Of Strut Spring Assembly (Escort Shown; Focus Is Similar)

Courtesy of FORD MOTOR CO.
