Oil Pan Gasket

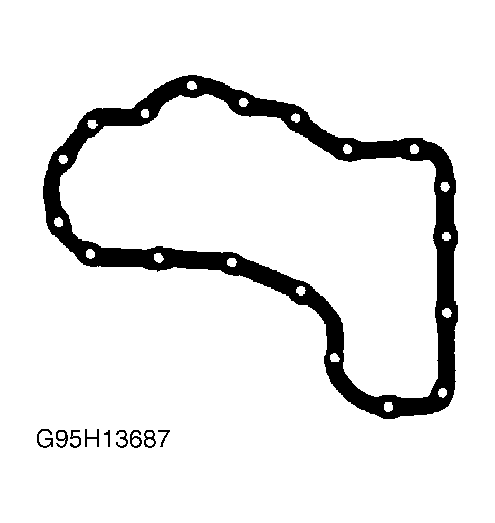

Fig 1: Identifying Oil Pan Gasket (AX4N & 4F50N)

G95H13687

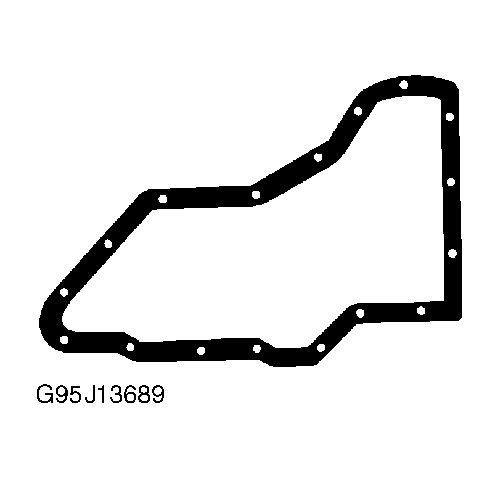

Fig 2: Identifying Oil Pan Gasket (AX4S)

G95J13689

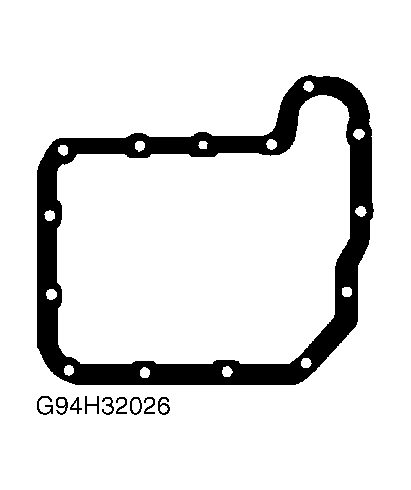

Fig 3: Identifying Oil Pan Gasket (CD4E)

G94H32026

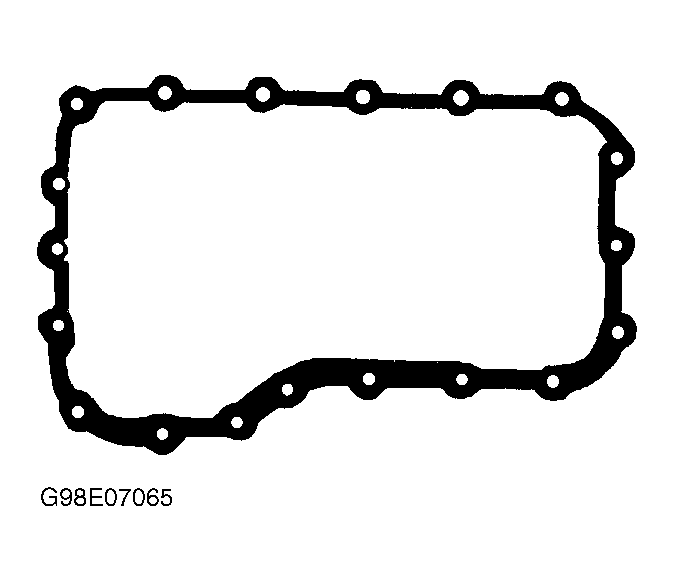

Fig 4: Identifying Oil Pan Gasket (F4E-III)

G98E07065

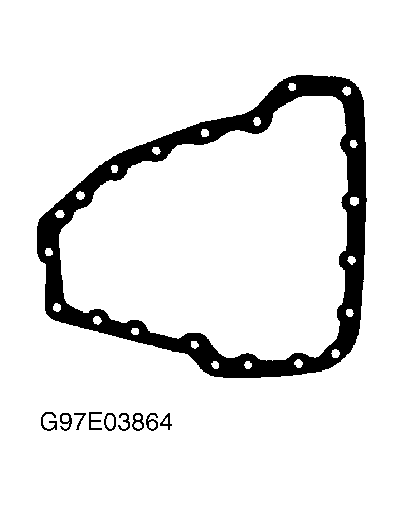

Fig 5: Identifying Oil Pan Gasket (4F20E)

G97E03864

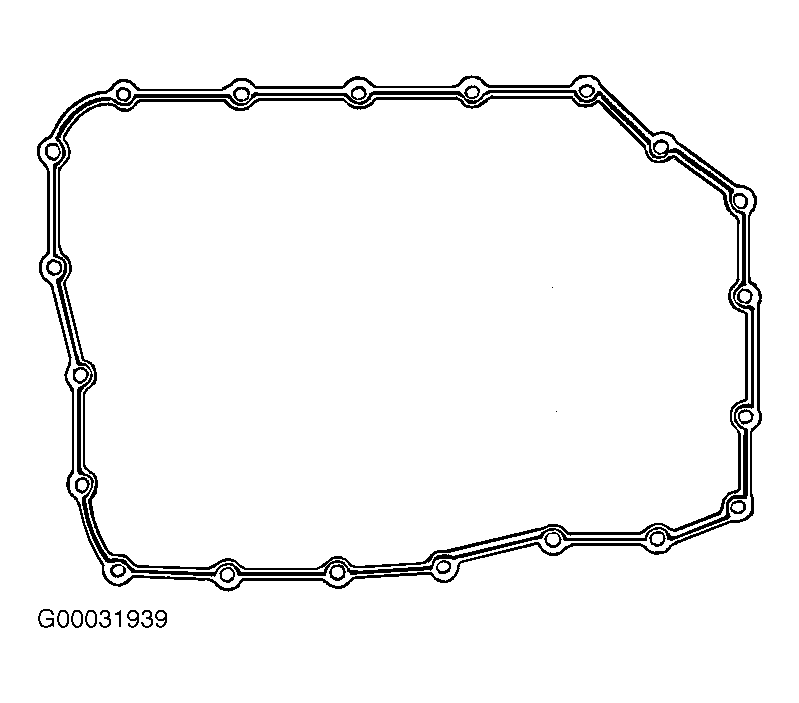

Fig 6: Identifying Oil Pan Gasket (4F27E)

G00031939

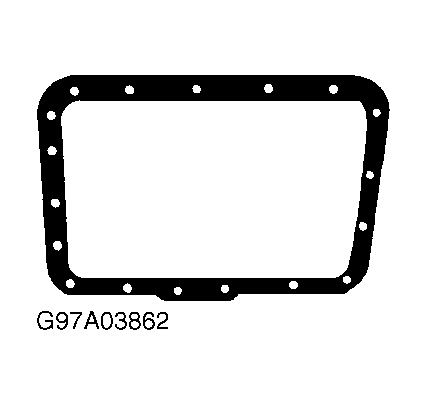

Fig 7: Identifying Oil Pan Gasket (4R44E & 5R55E)

G97A03862

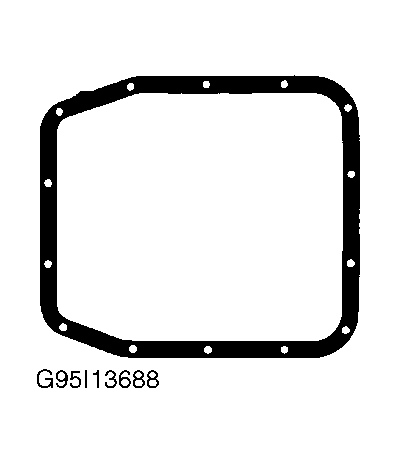

Fig 8: Identifying Oil Pan Gasket (4R70W)

G95I13688

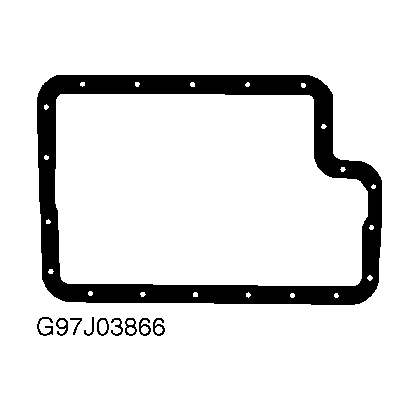

Fig 9: Identifying Oil Pan Gasket (4R100)

G97J03866

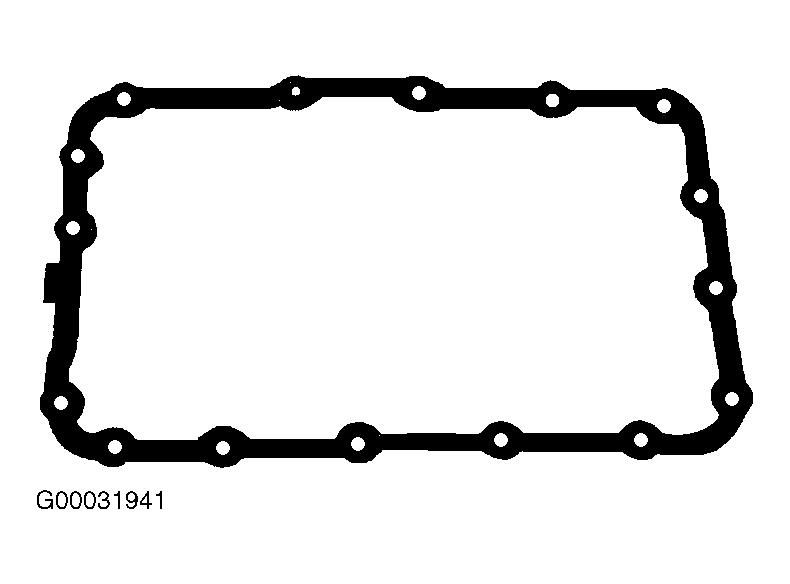

Fig 10: Identifying Oil Pan Gasket (5R55N)

G00031941
