ITEM SPECIFICATION
Item
Specification
Threadlock and Sealer TA-25
WSK-M2G351-A5

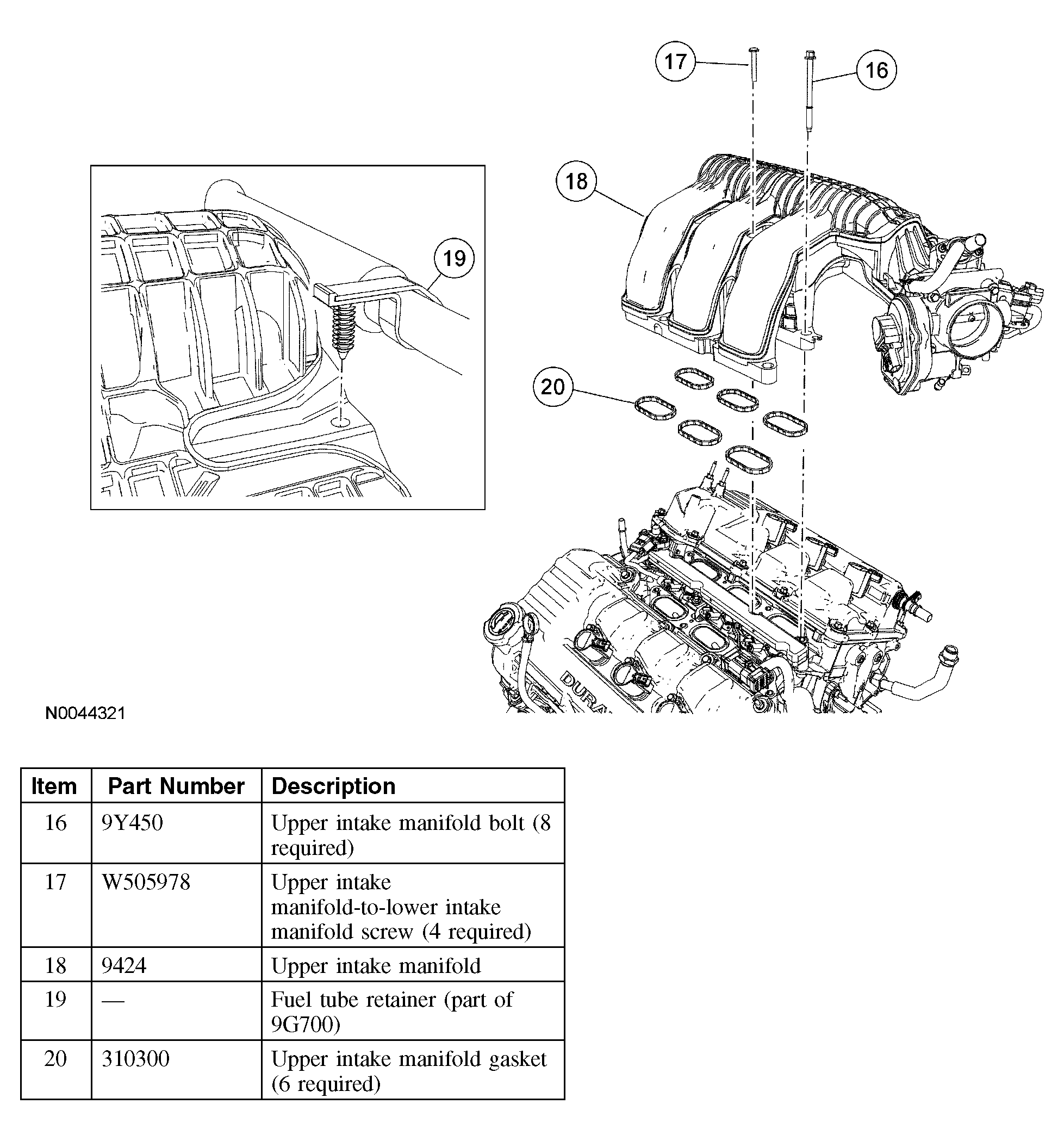

Fig 1: Identifying Upper Intake Manifold Components (1 Of 3)
Courtesy of FORD MOTOR CO.

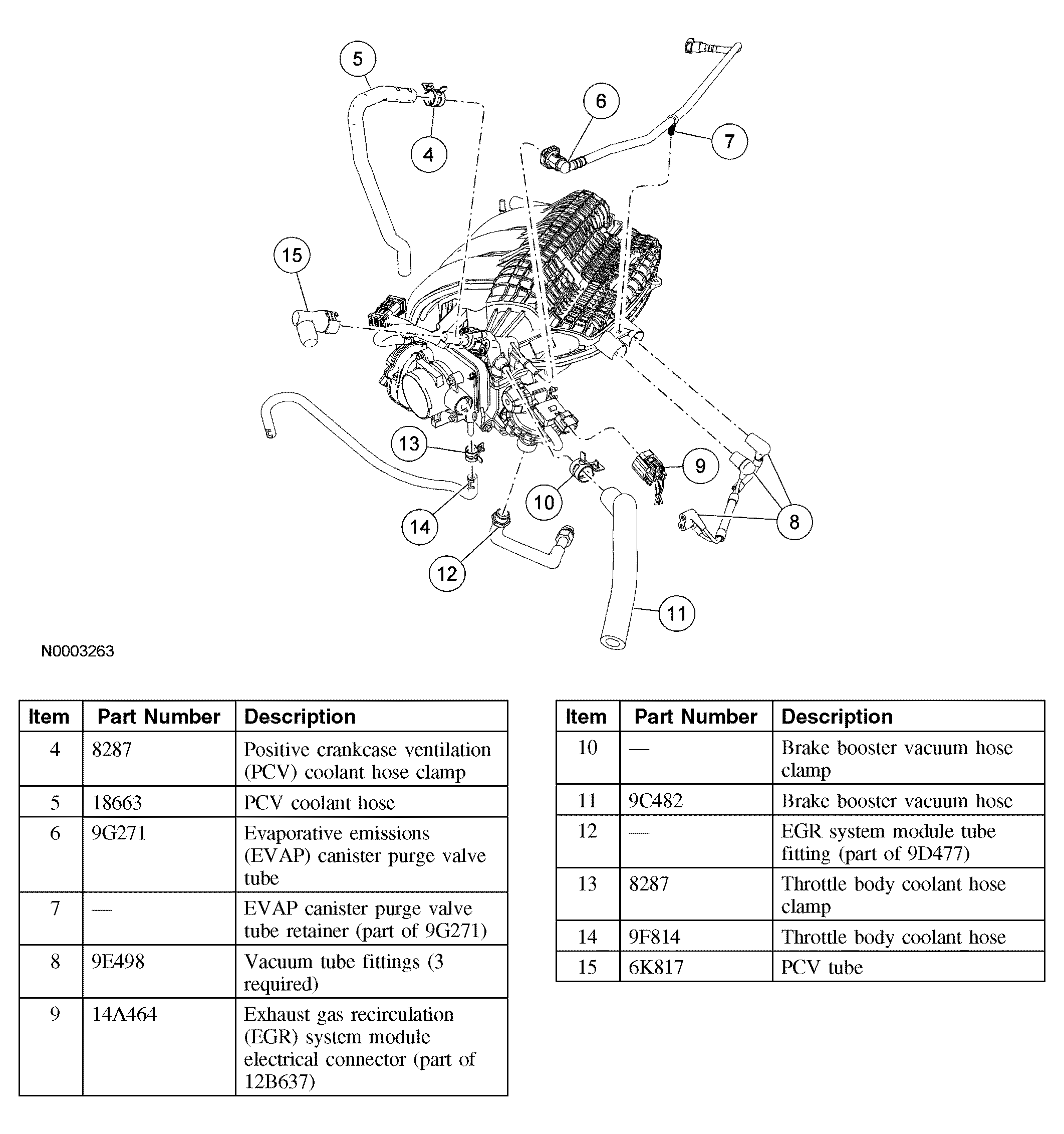

Fig 2: Identifying Upper Intake Manifold Components (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Identifying Upper Intake Manifold Components (3 Of 3)
