Clockspring C2274a

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

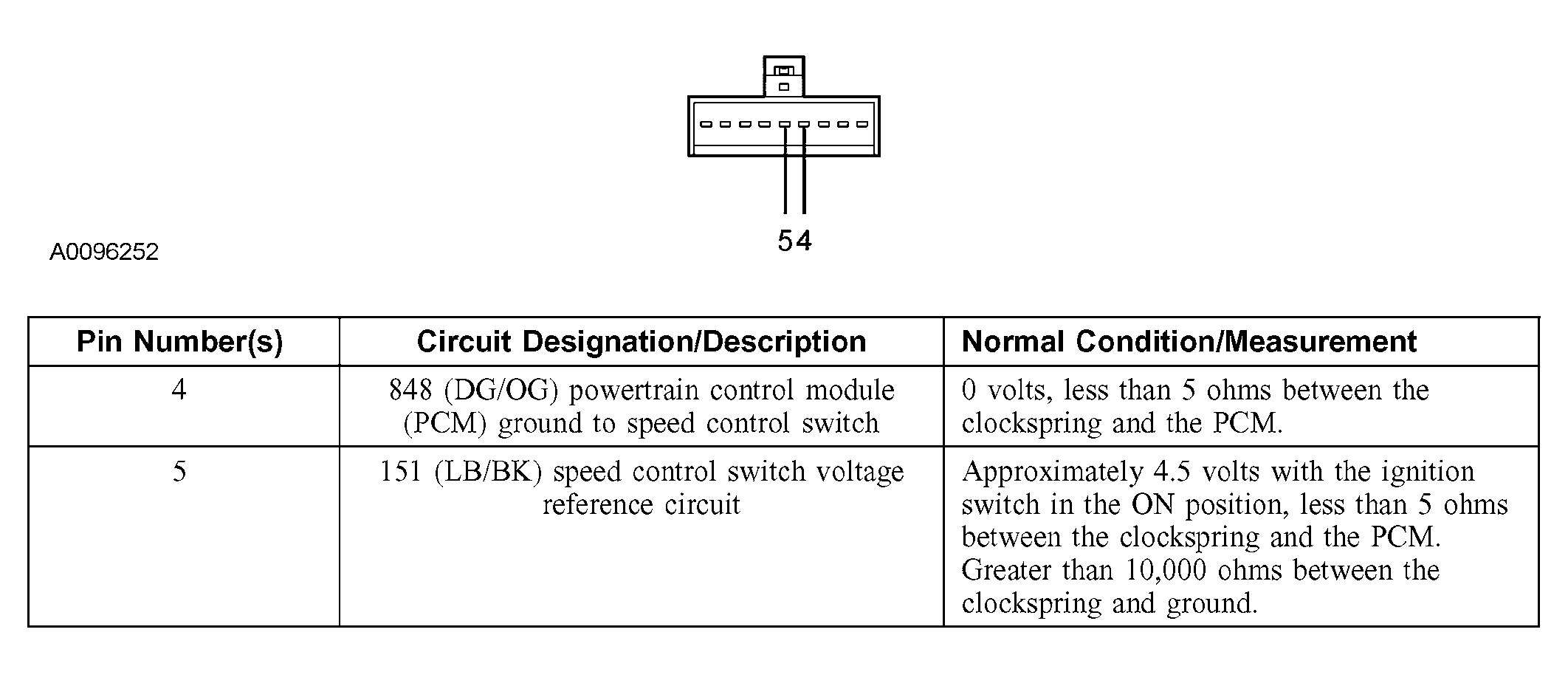

Fig 1: Identifying Clockspring C2274a Pins
G03992120Courtesy of FORD MOTOR CO.
