Removal and Installation
WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

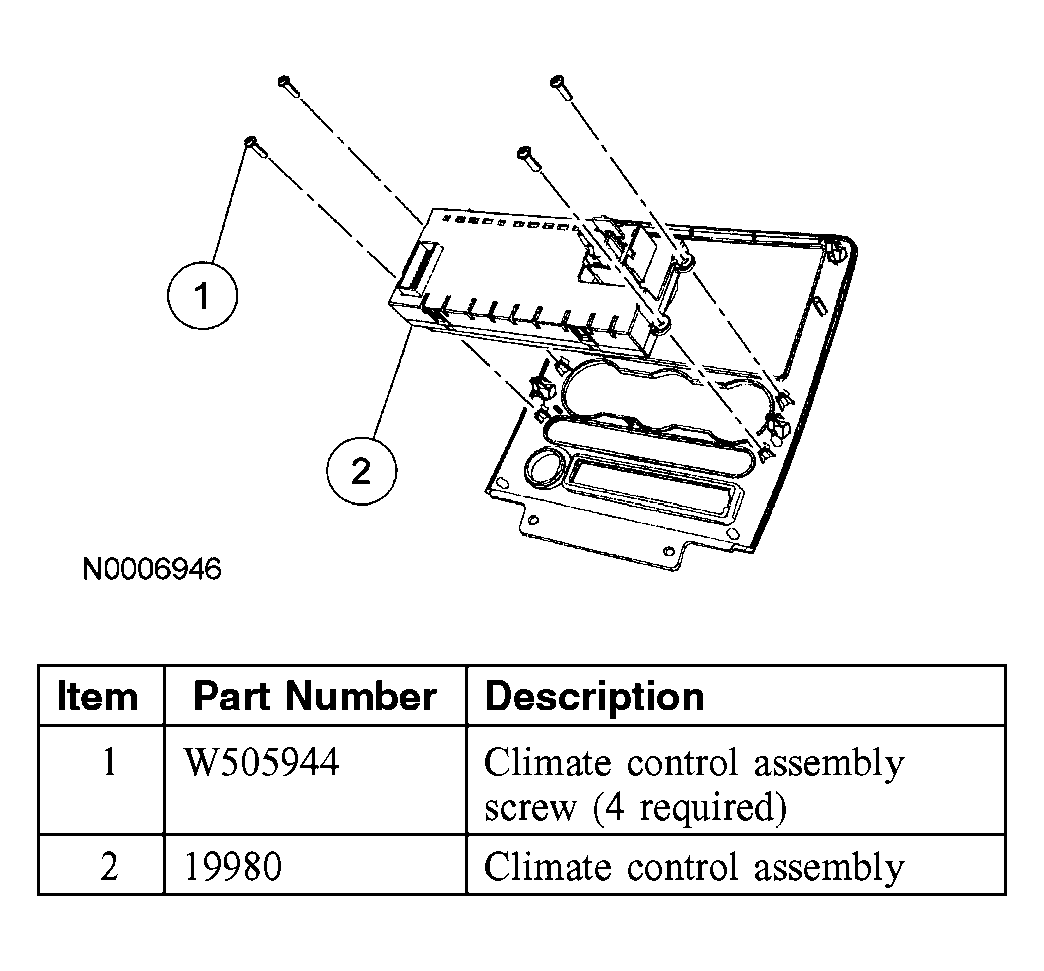

- Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
- Remove the 4 climate control assembly screws.
- Remove the climate control assembly.
- To install, reverse the removal procedure.
