Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

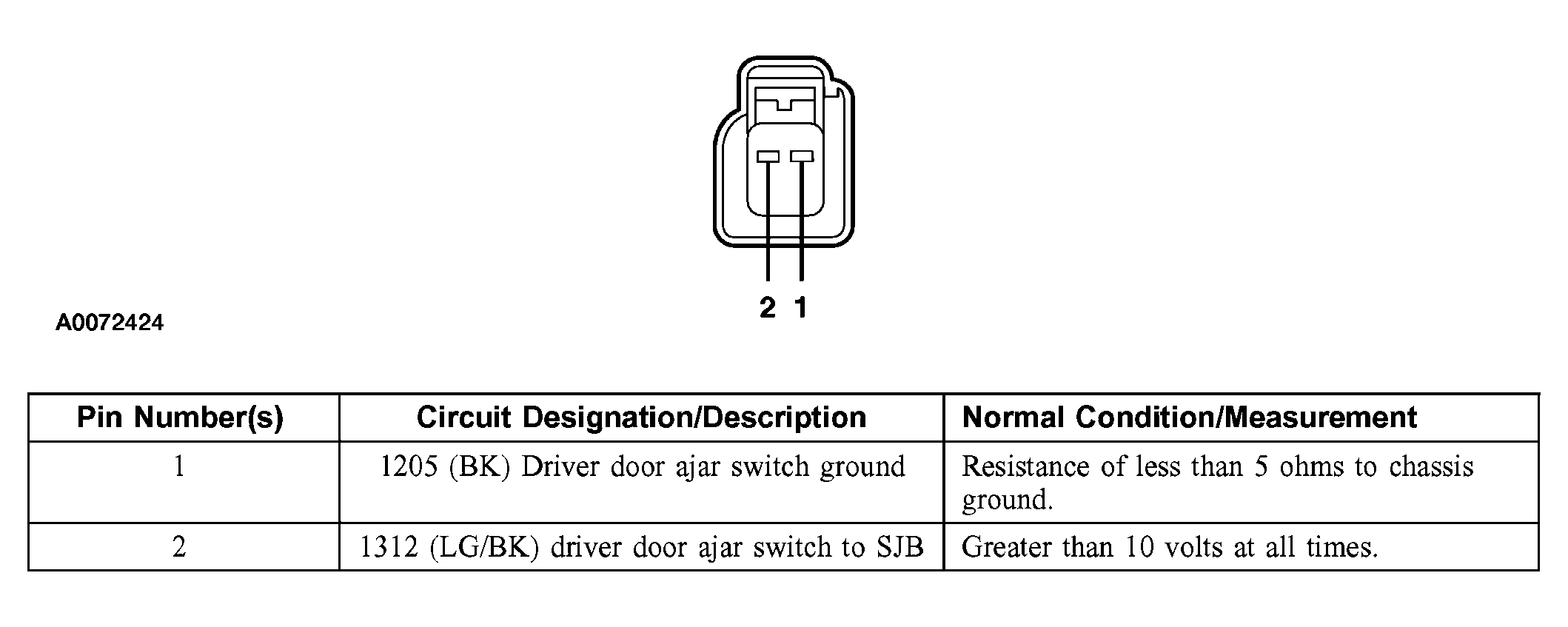

Fig 1: Identifying Driver Door Ajar Switch Connector Pin C526
G03992879Courtesy of FORD MOTOR CO.

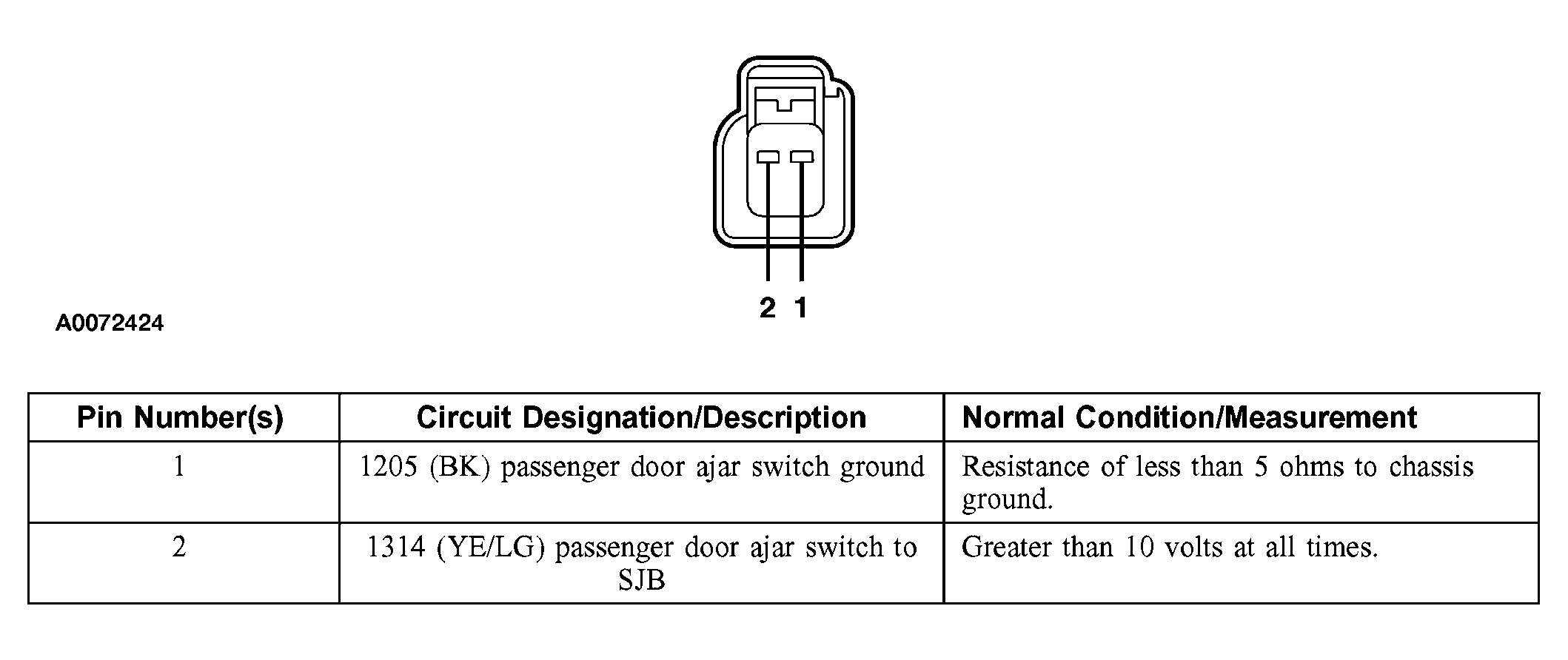

Fig 2: Identifying Passenger Door Ajar Switch Connector Pin C602
G03992880Courtesy of FORD MOTOR CO.

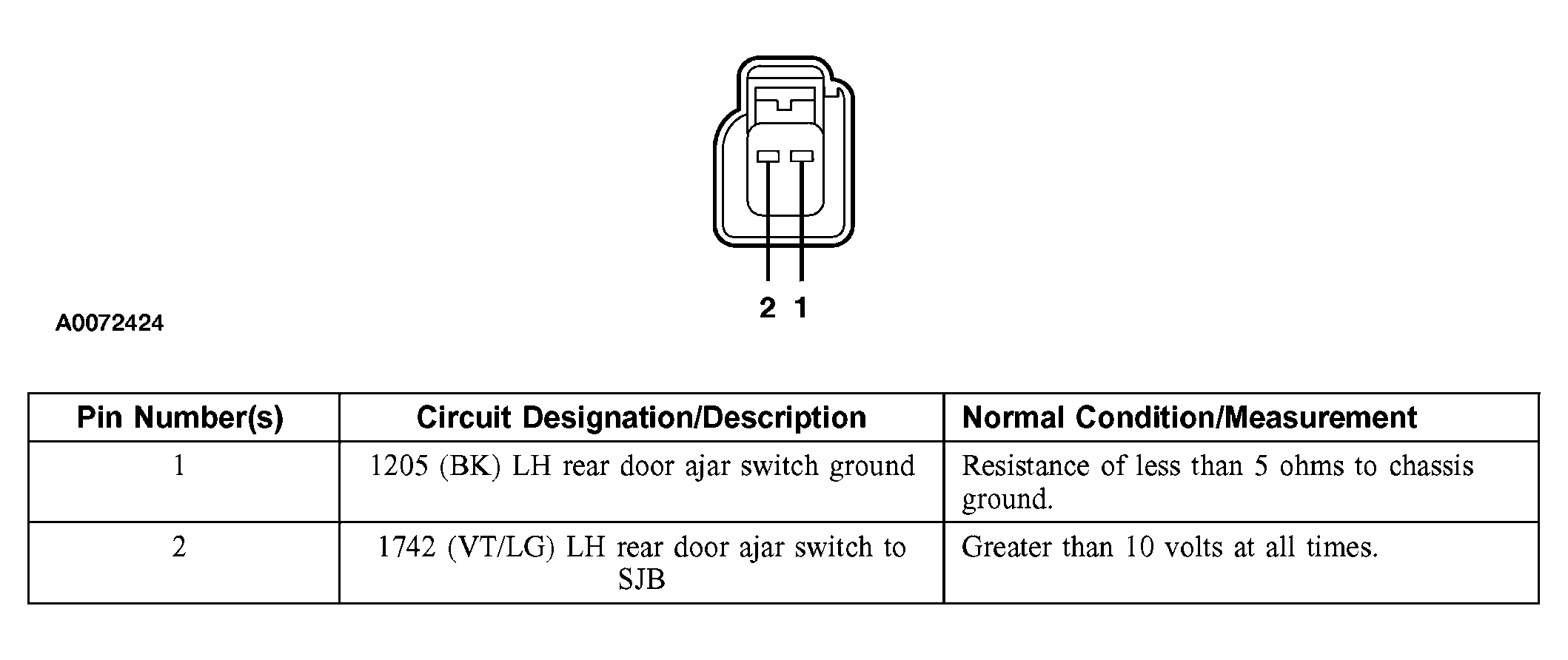

Fig 3: Identifying Rear Door Ajar Switch Connector Pin C715 (LH)
G03992881Courtesy of FORD MOTOR CO.

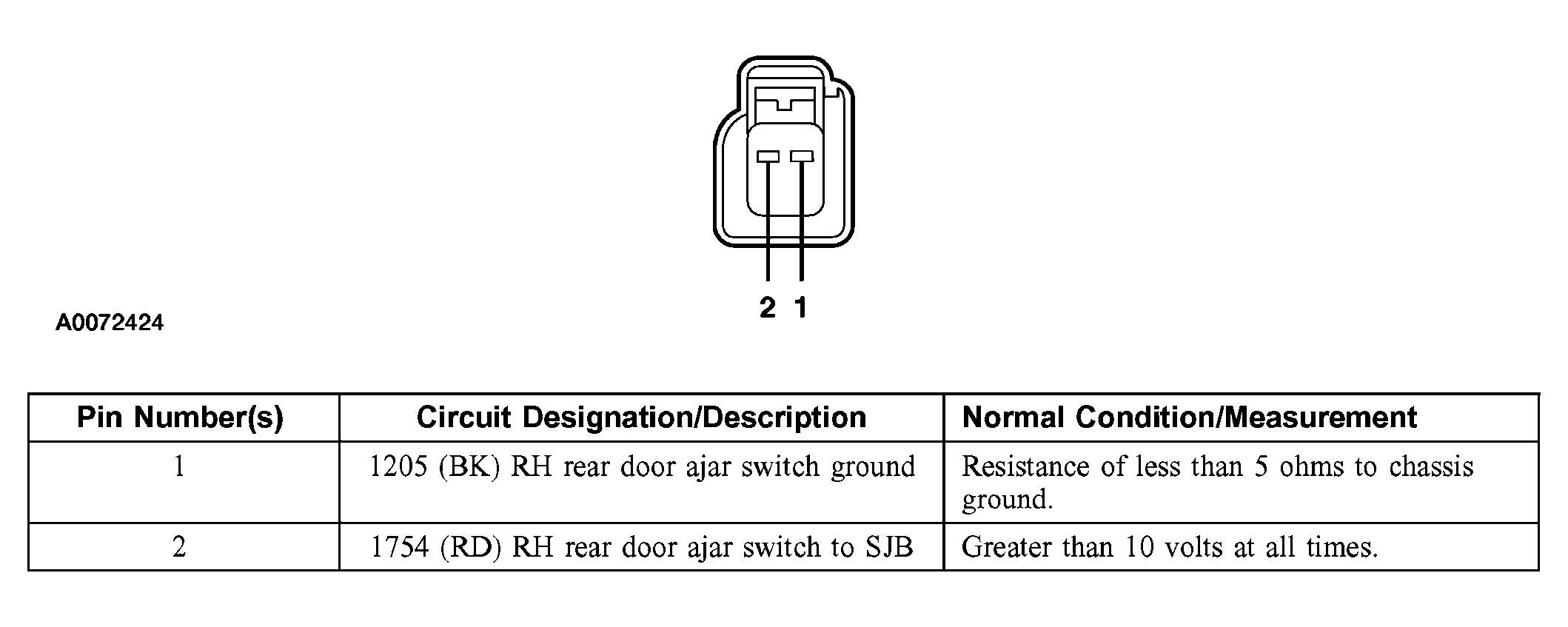

Fig 4: Identifying Rear Door Ajar Switch connector pin C820 (RH)
G03992882Courtesy of FORD MOTOR CO.

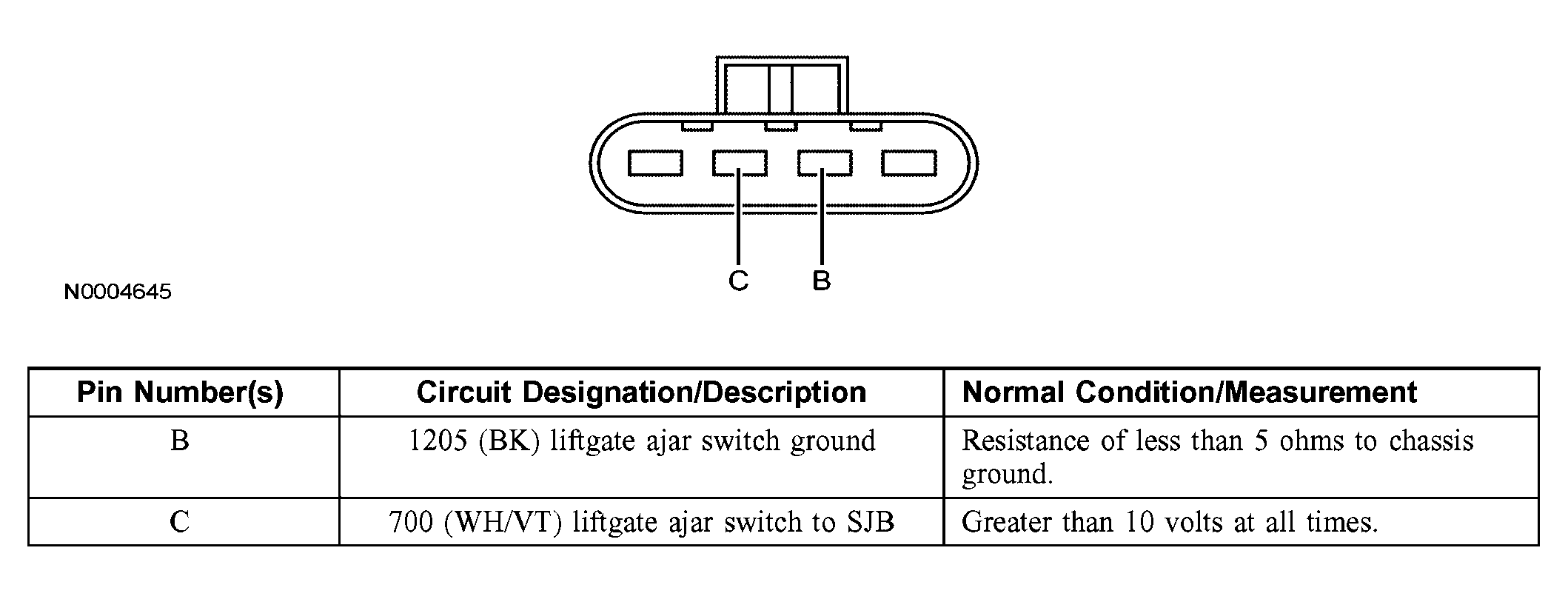

Fig 5: Identifying Liftgate Ajar Switch Connector Pin C479
G03992883Courtesy of FORD MOTOR CO.

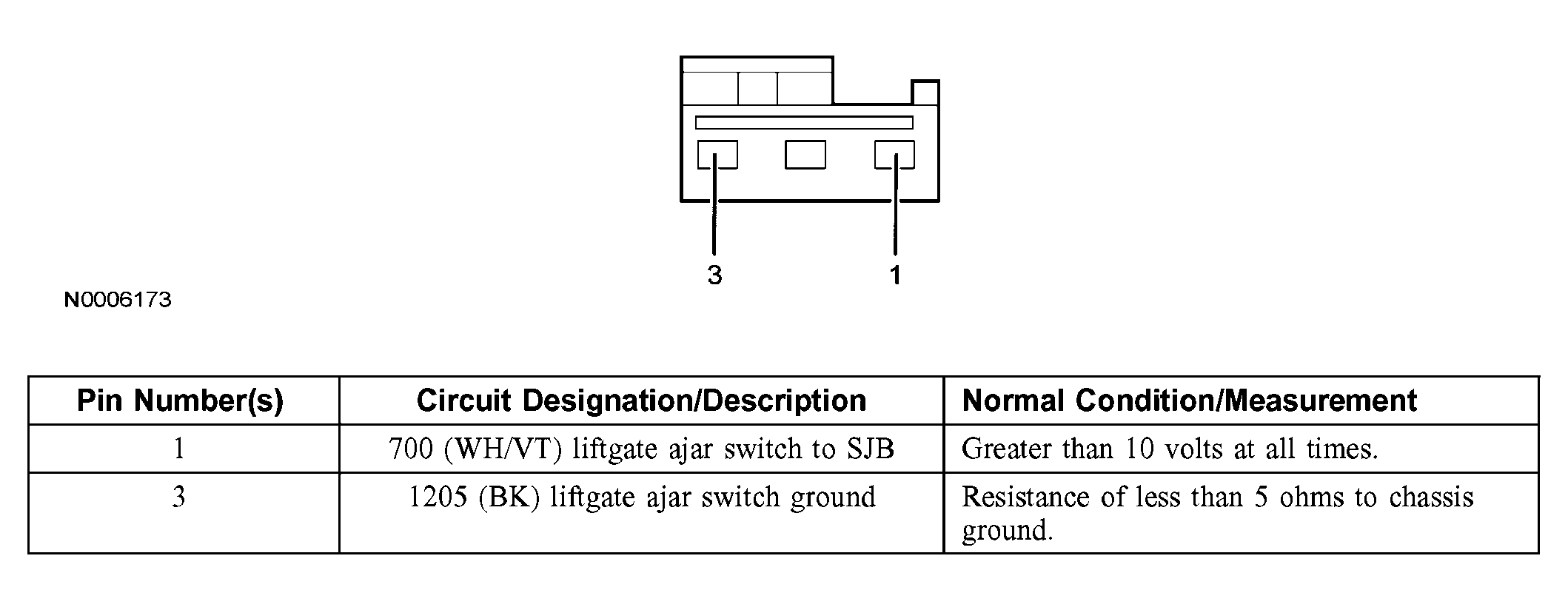

Fig 6: Identifying Decklid Ajar Switch Connector Pin C4302
G03992884Courtesy of FORD MOTOR CO.

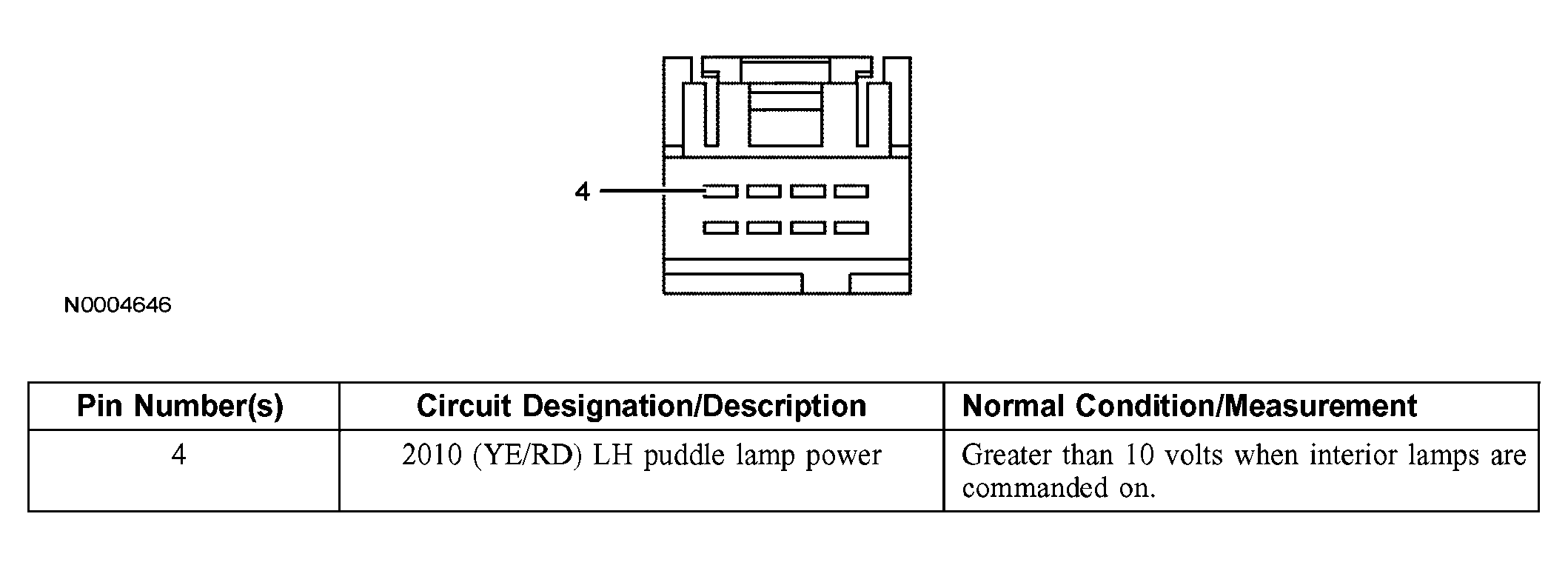

Fig 7: Identifying Puddle Lamp Without Memory Mirrors Connector Pin C522 (LH)
G03992885Courtesy of FORD MOTOR CO.
Fig 8: Identifying Puddle Lamp Without Memory Mirrors connector pin C622 (RH)
G03992886Courtesy of FORD MOTOR CO.
Fig 9: Identifying Puddle Lamp With Memory Mirrors connector pin C516 (RH)
G03992887Courtesy of FORD MOTOR CO.

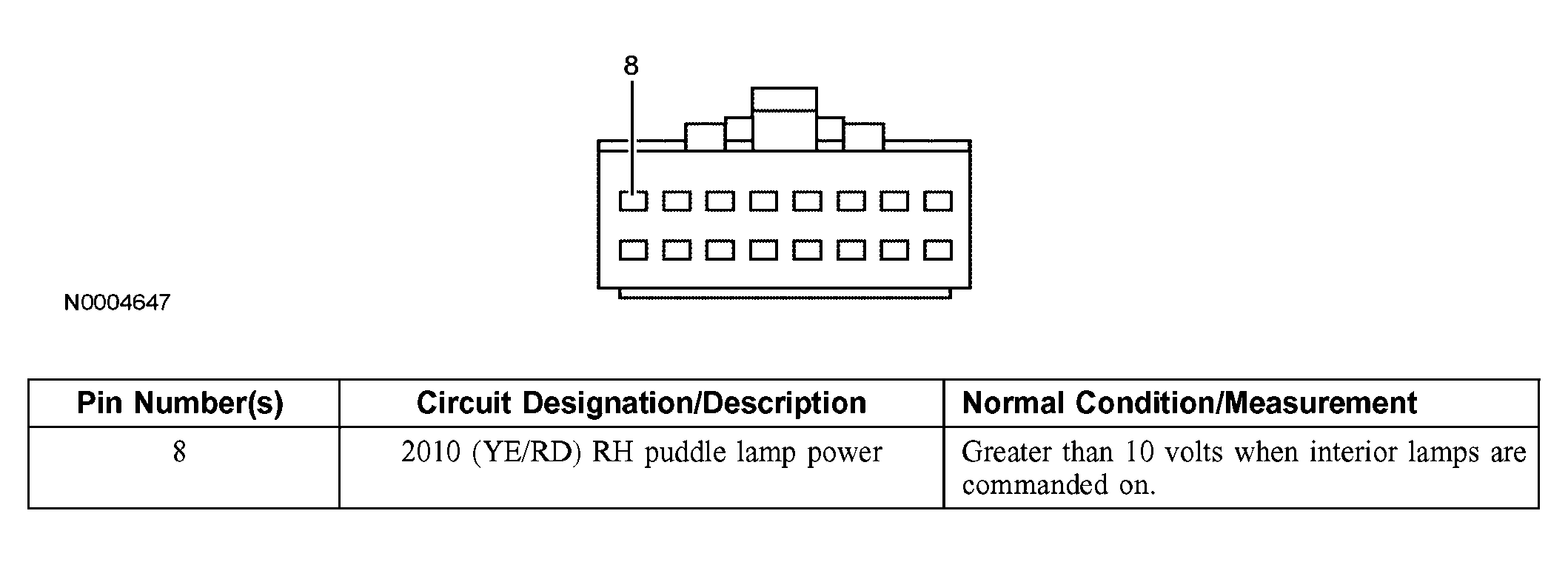

Fig 10: Identifying Puddle Lamp With Memory Mirrors connector pin C625 (RH)
G03992888Courtesy of FORD MOTOR CO.

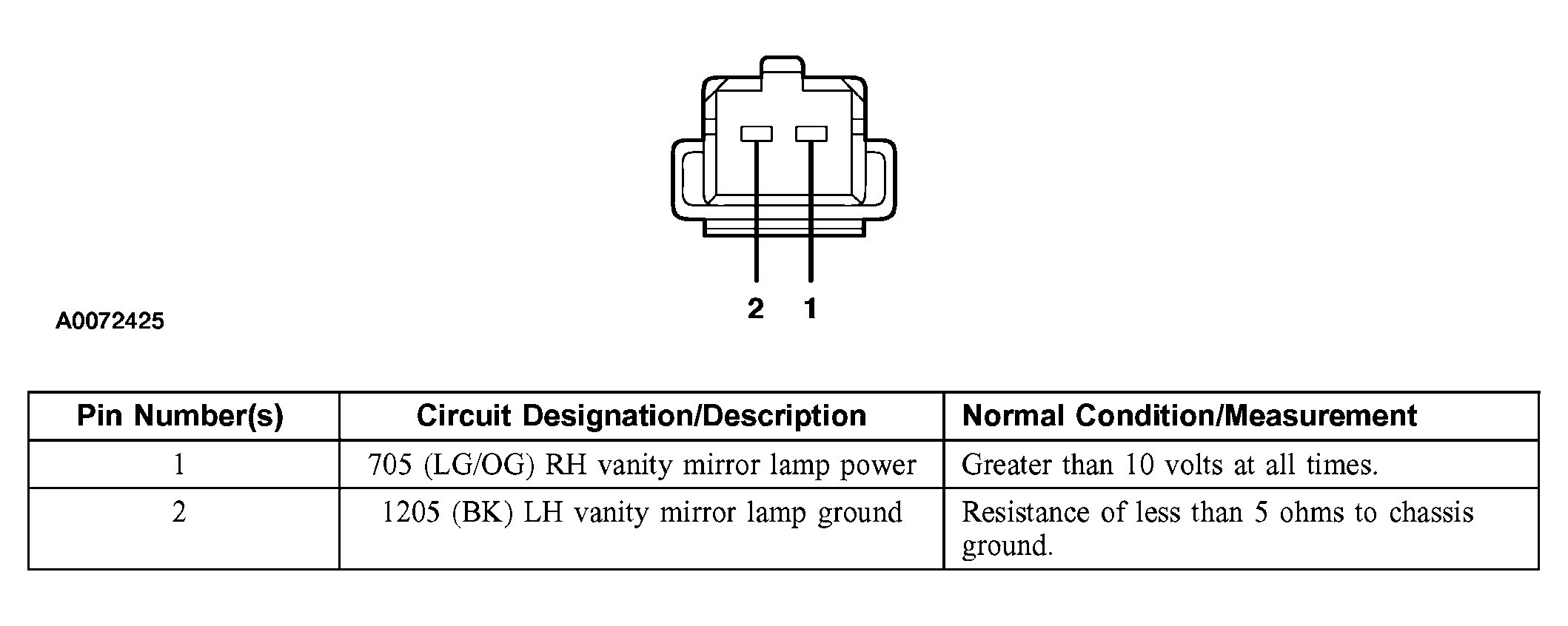

Fig 11: Identifying Vanity Mirror Lamp connector pin C906 (RH)
G03992889Courtesy of FORD MOTOR CO.

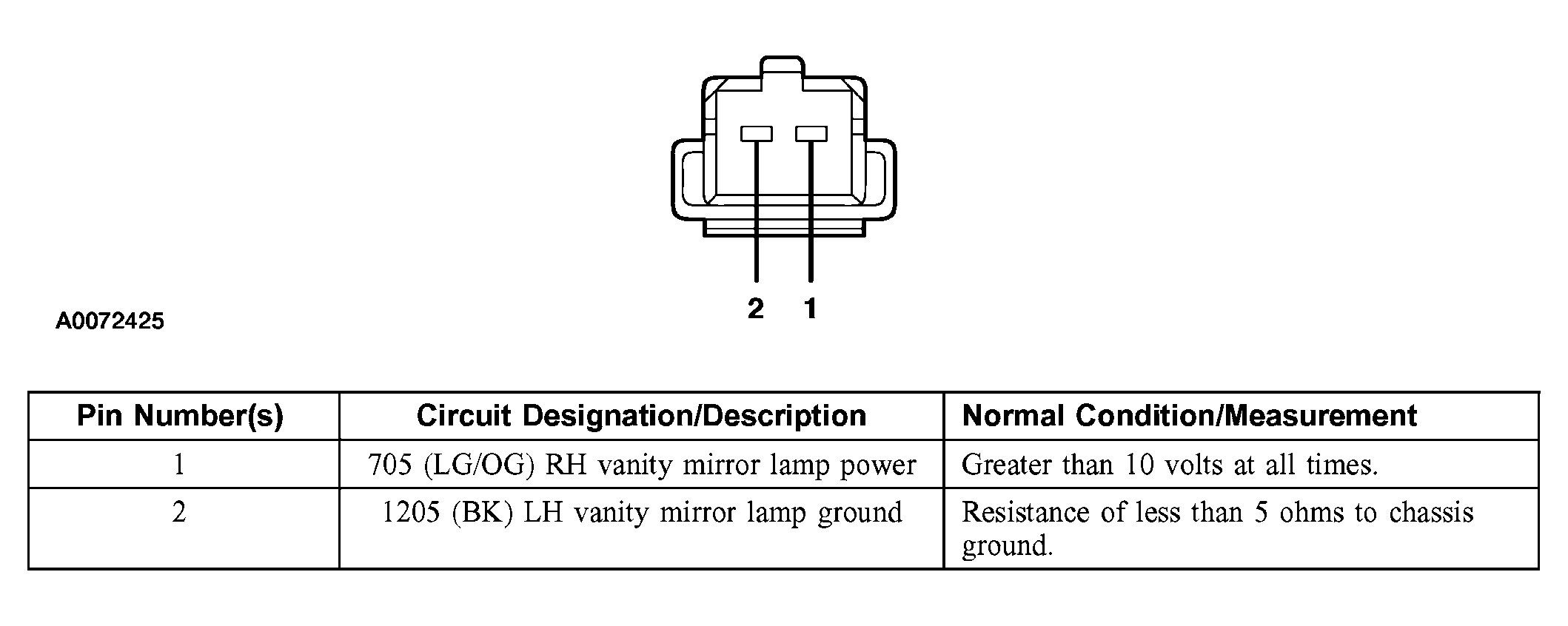

Fig 12: Identifying Vanity Mirror Lamp connector pin C907 (LH)
G03992890Courtesy of FORD MOTOR CO.

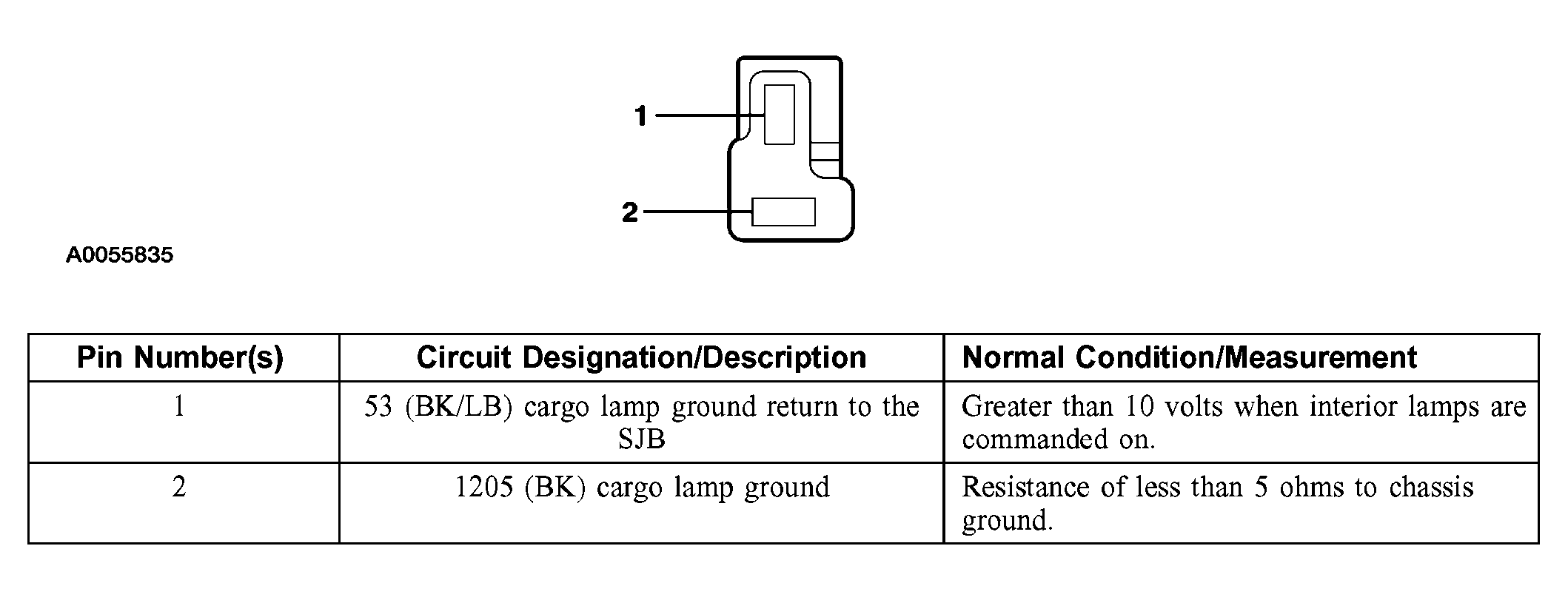

Fig 13: Identifying Cargo Lamp Connector Pin C428
G03992891Courtesy of FORD MOTOR CO.

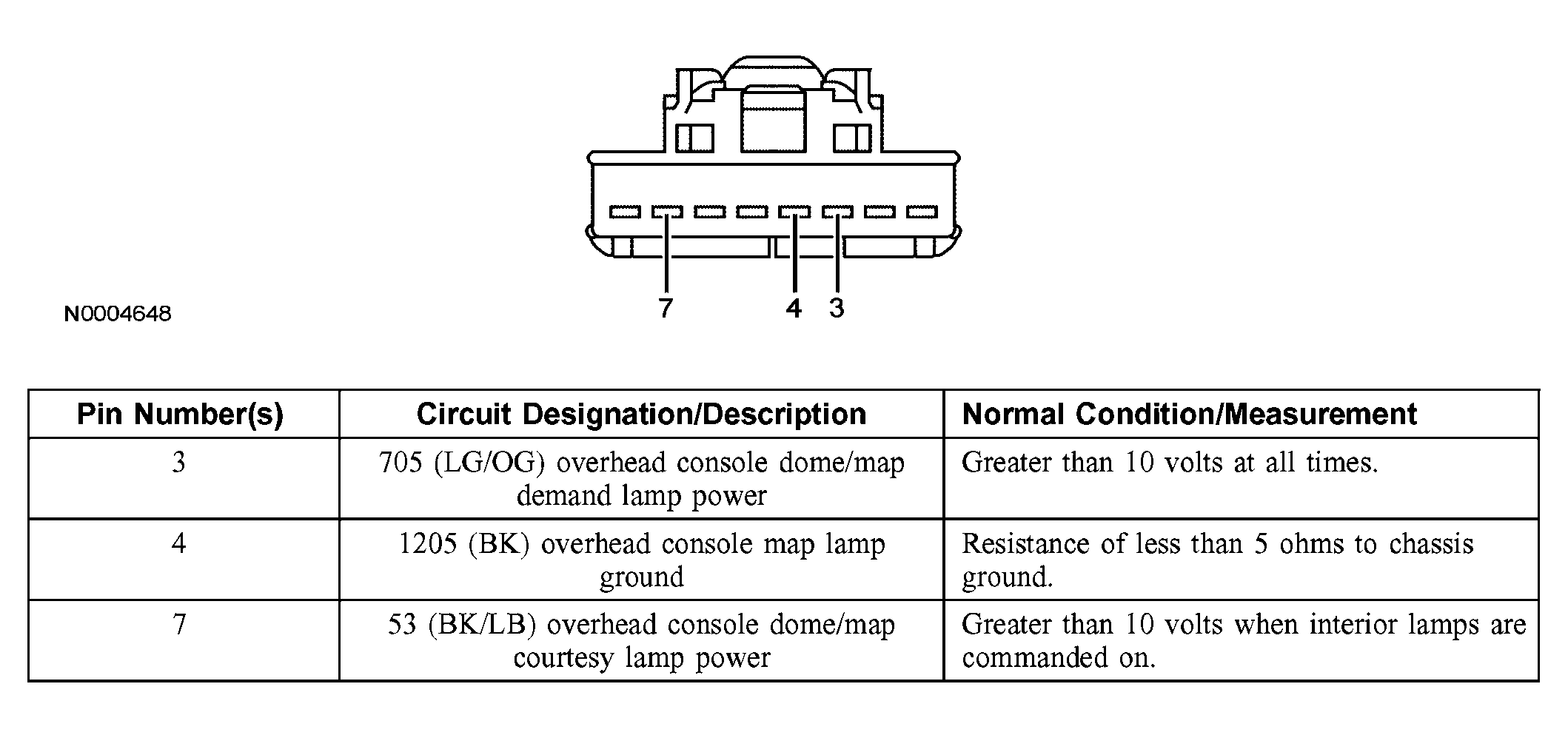

Fig 14: Identifying Overhead Console With Roof Opening Panel Connector Pin C930
G03992892Courtesy of FORD MOTOR CO.

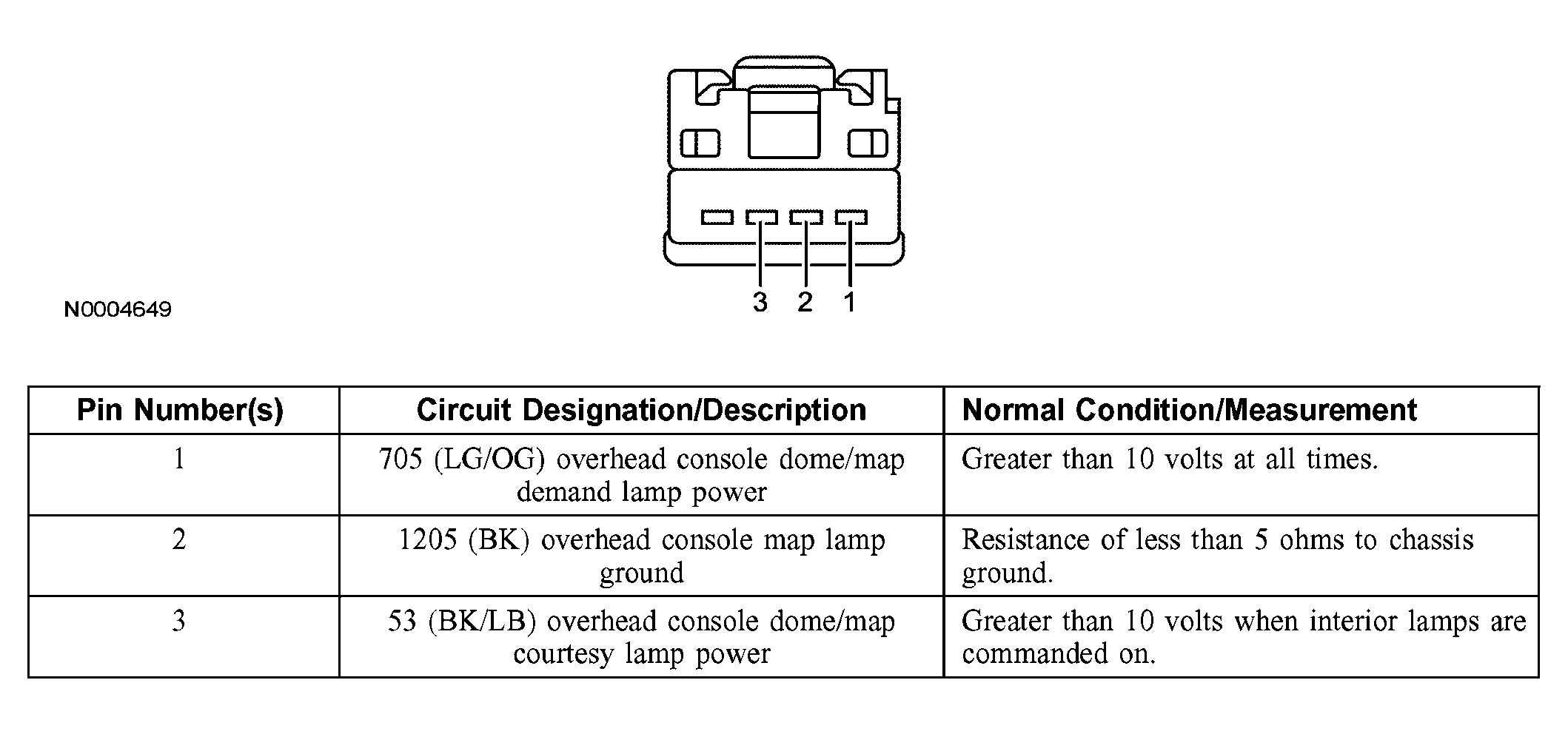

Fig 15: Identifying Overhead Console Without Roof Opening Panel Connector Pin C929
G03992893Courtesy of FORD MOTOR CO.
Fig 16: Identifying Second Row Dome Lamp Connector Pin C961
G03992894Courtesy of FORD MOTOR CO.

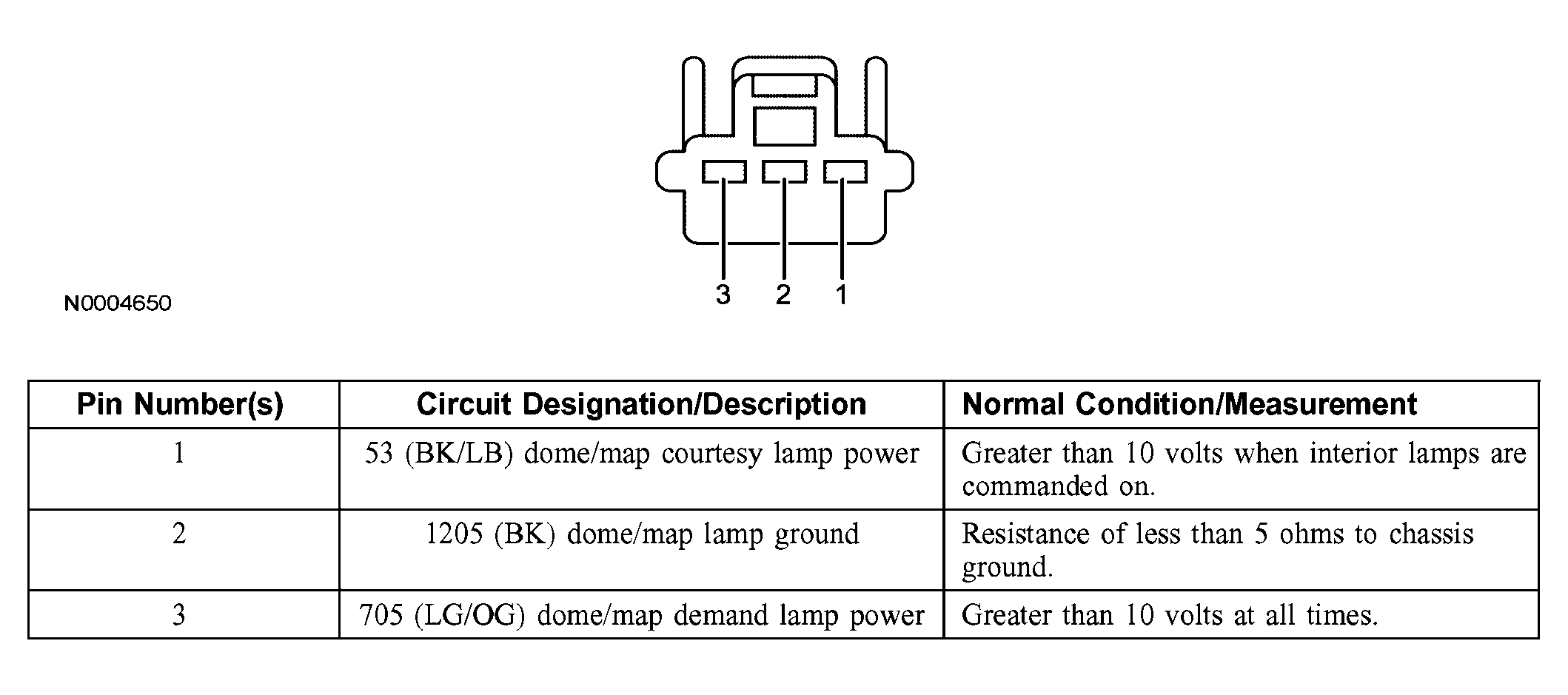

Fig 17: Identifying Third Row Dome Lamp Connector Pin C963
G03992895Courtesy of FORD MOTOR CO.

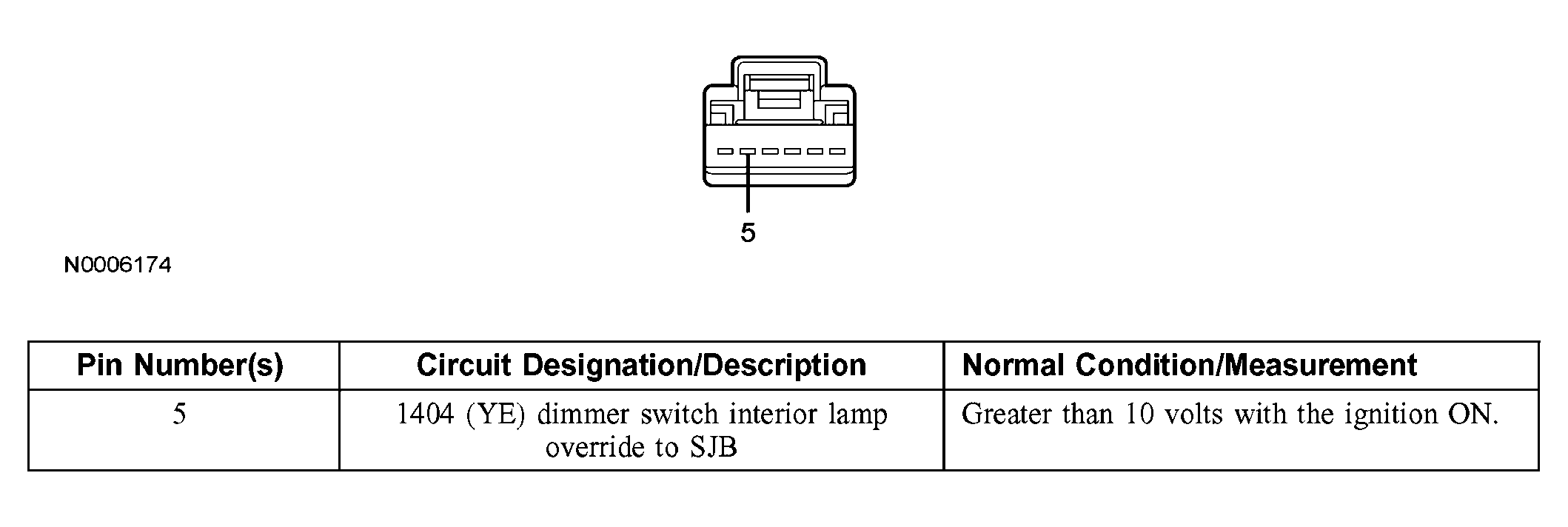

Fig 18: Identifying Dimmer Switch Connector Pin C2065
G03992896Courtesy of FORD MOTOR CO.

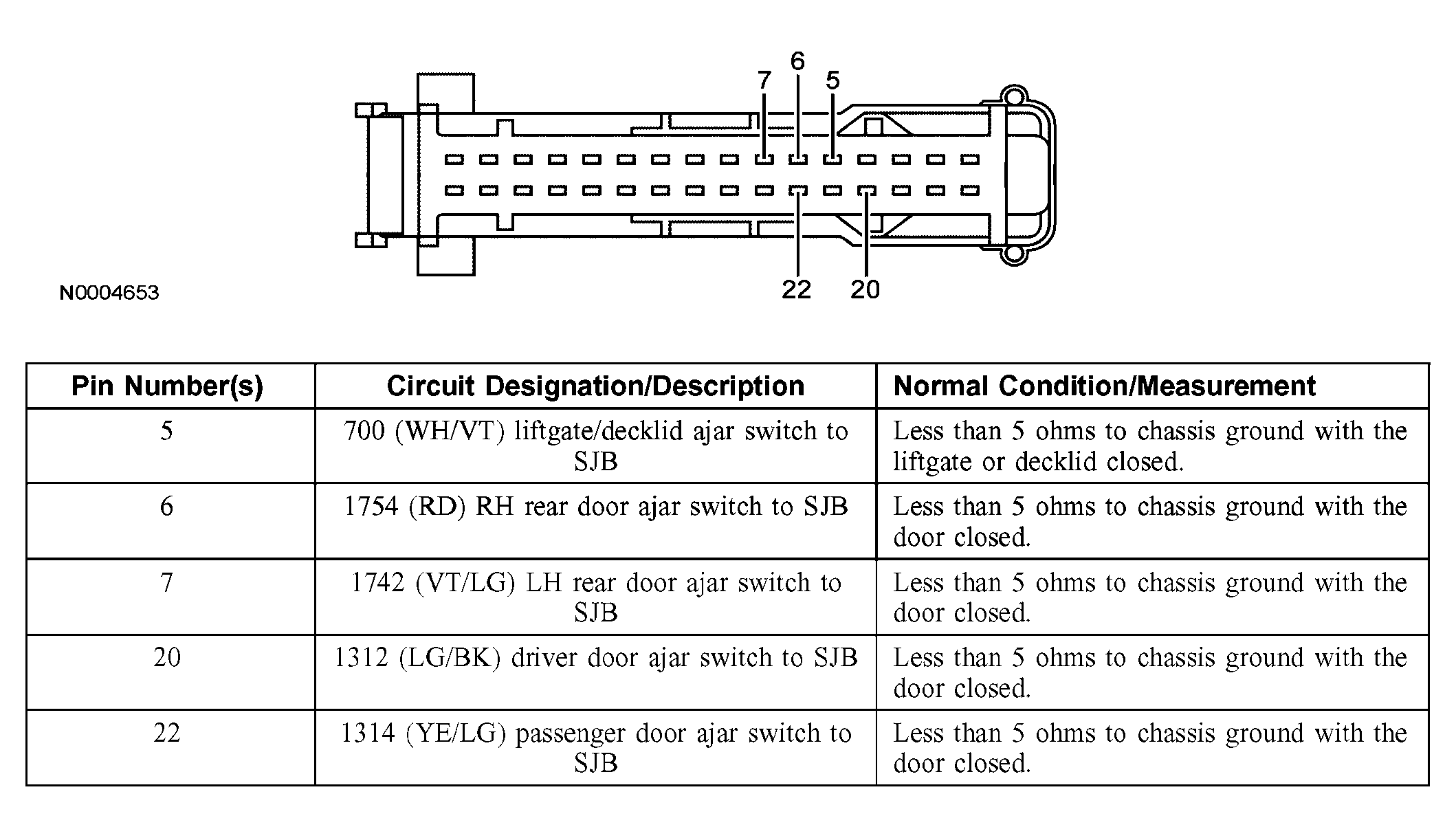

Fig 19: Identifying SJB Connector Pin C2280C
G03992897Courtesy of FORD MOTOR CO.

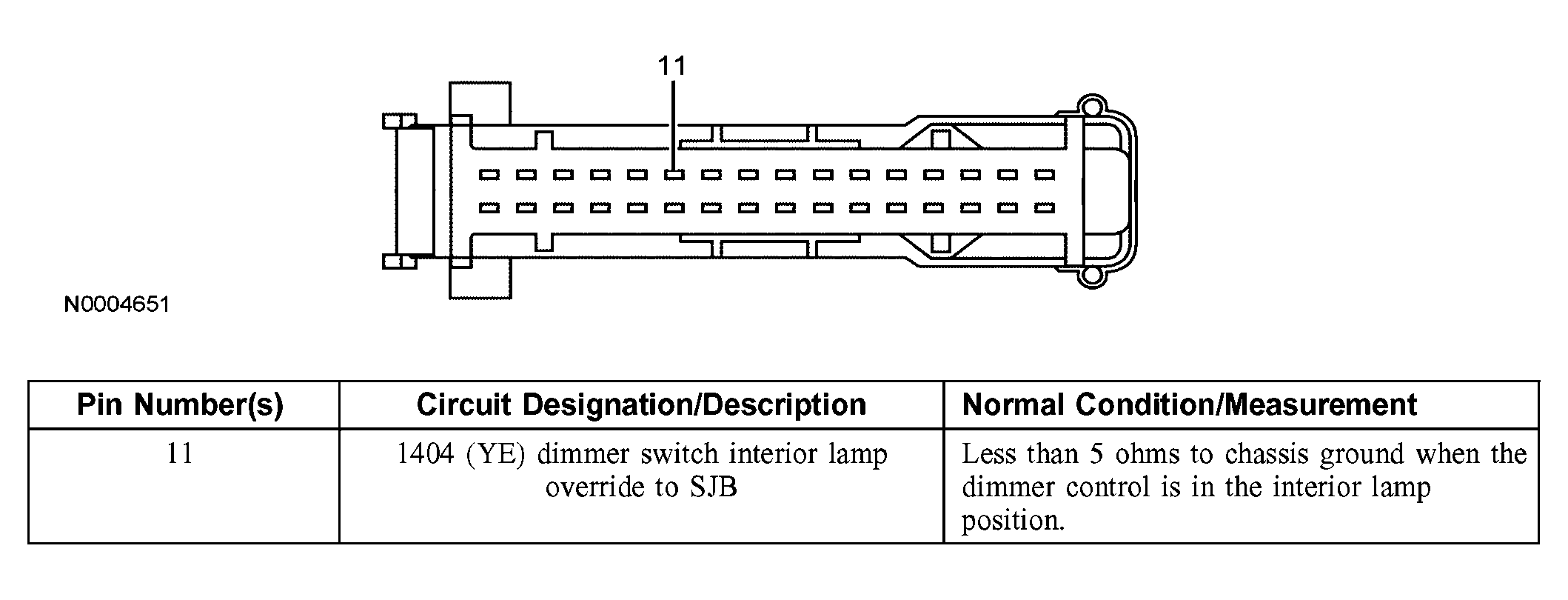

Fig 20: Identifying SJB Connector Pin C2280D
G03992898Courtesy of FORD MOTOR CO.

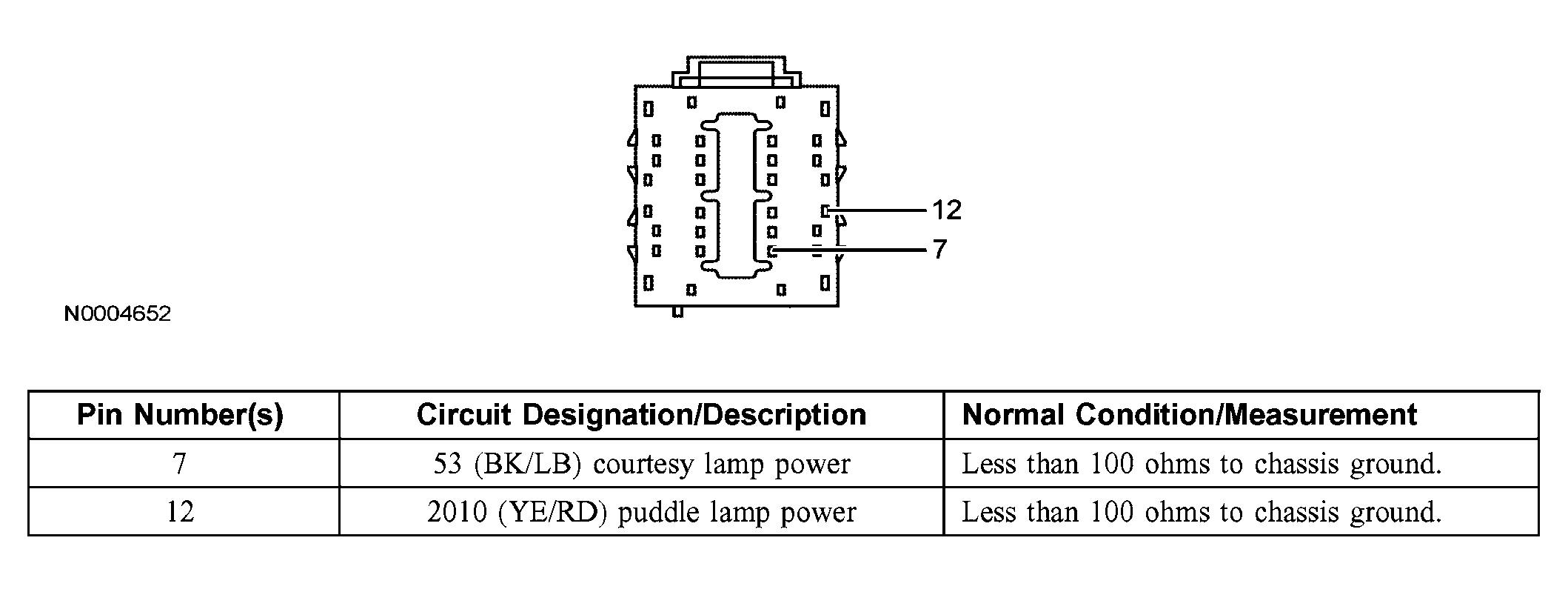

Fig 21: Identifying SJB Connector Pin 2280E
G03992899Courtesy of FORD MOTOR CO.
