Fuel Rail and Fuel Injector - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

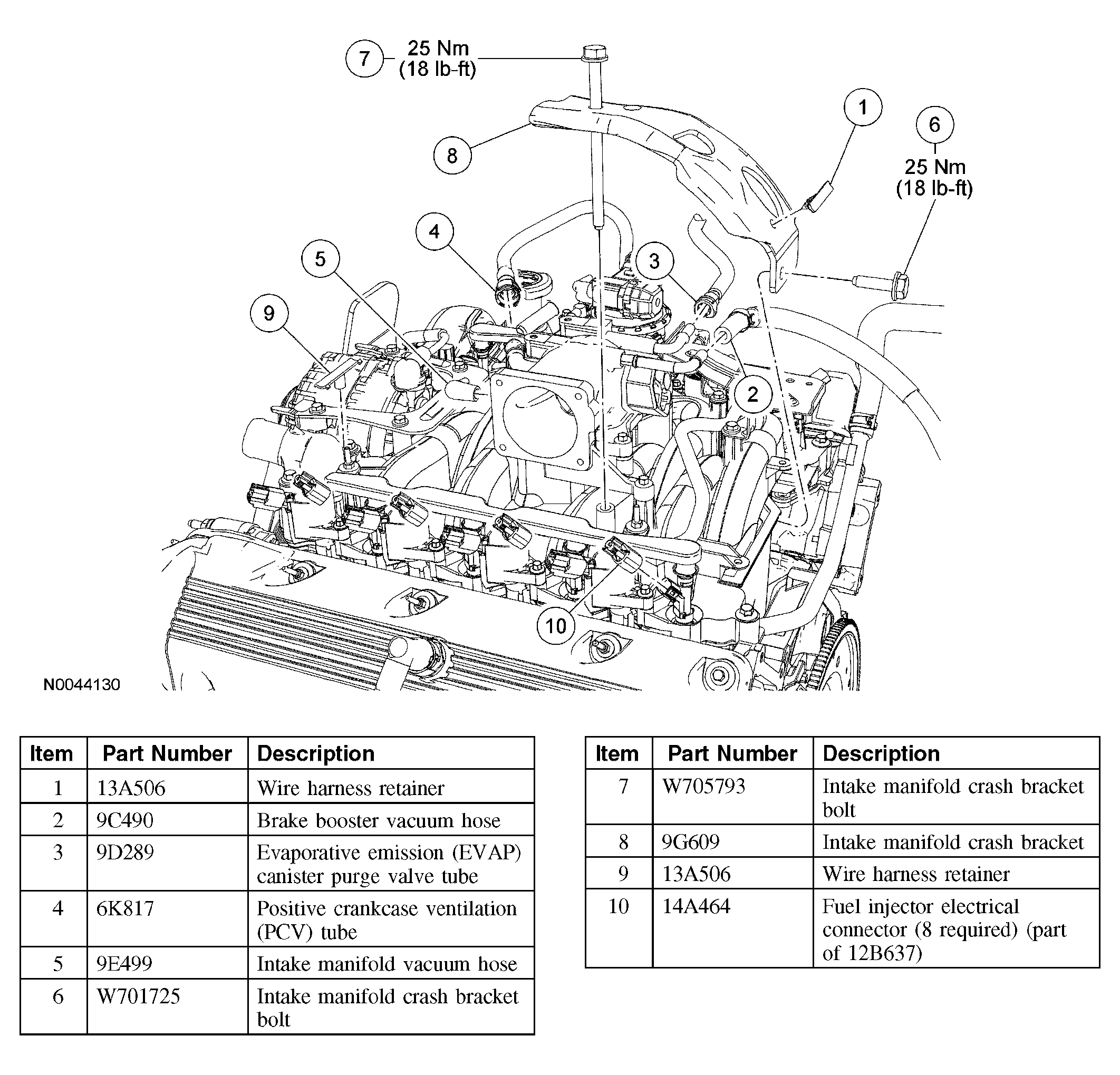

Fig 1: Identifying Fuel Rail And Fuel Injector - Exploded View (1 Of 3)

Courtesy of FORD MOTOR CO.

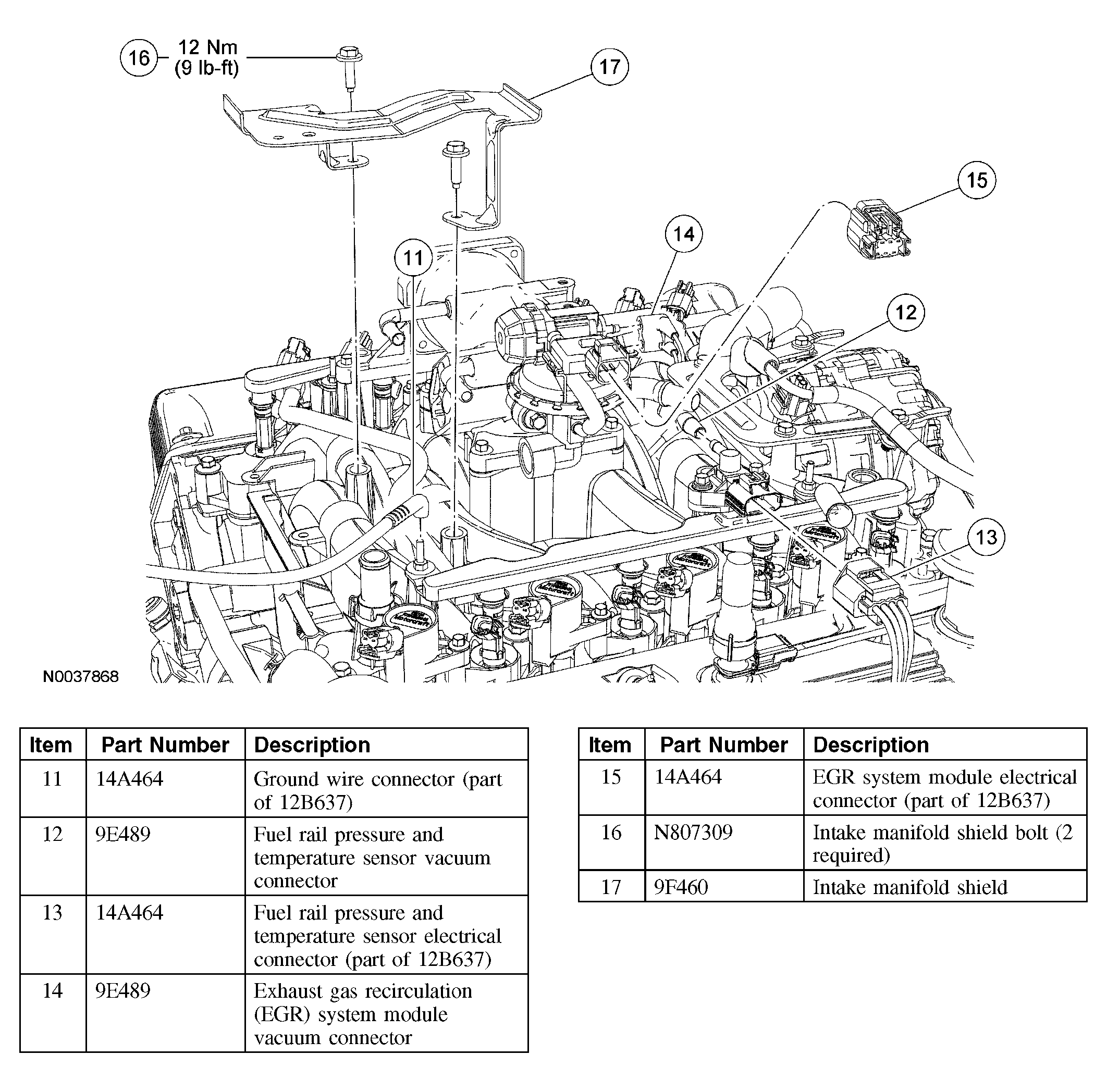

Fig 2: Identifying Fuel Rail And Fuel Injector - Exploded View (2 Of 3)

Courtesy of FORD MOTOR CO.

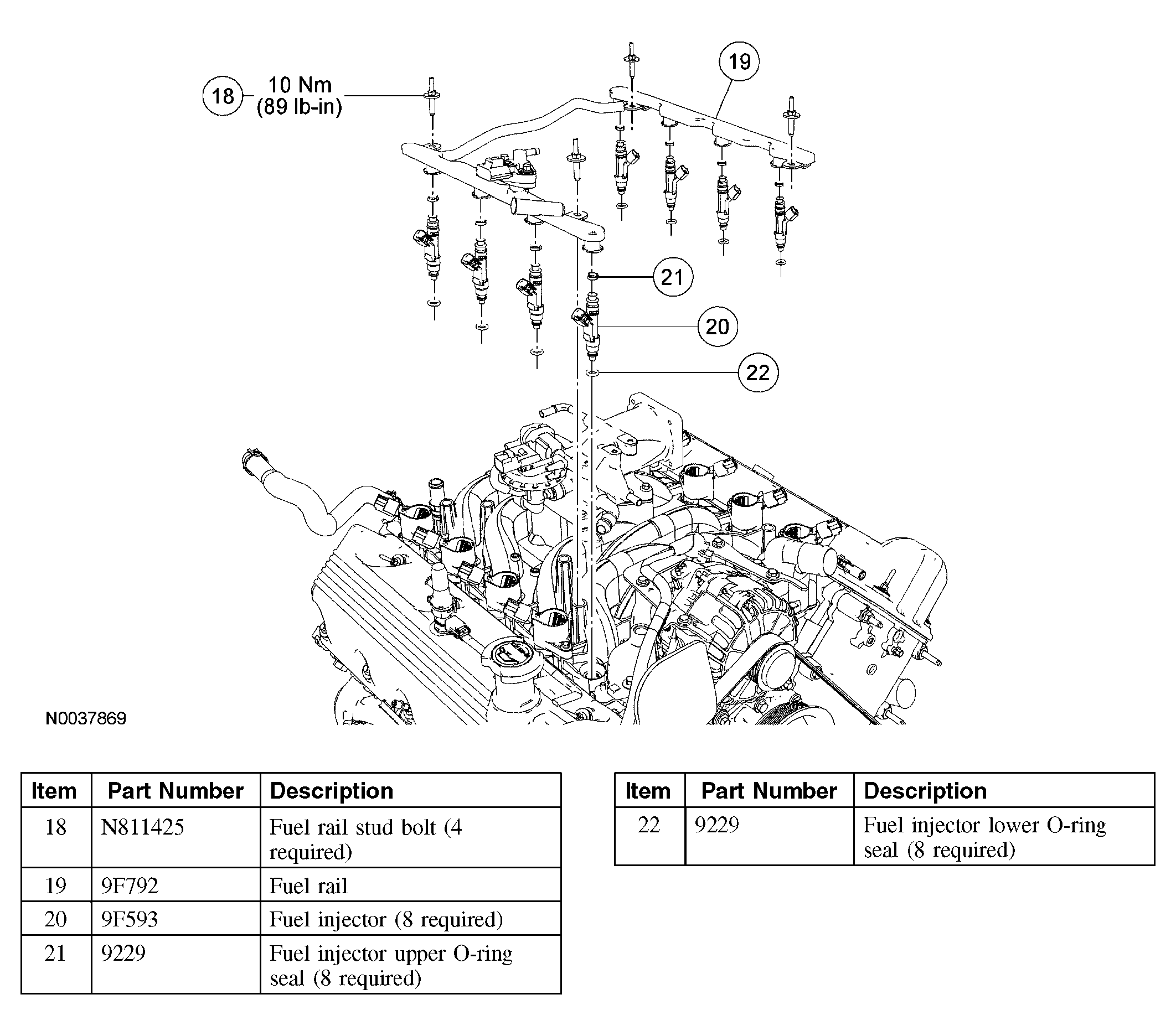

Fig 3: Identifying Fuel Rail And Fuel Injector - Exploded View (3 Of 3)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
