Powertrain Control Module (PCM): Removal
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
- Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation procedure. For additional information, refer to MODULE CONFIGURATION .

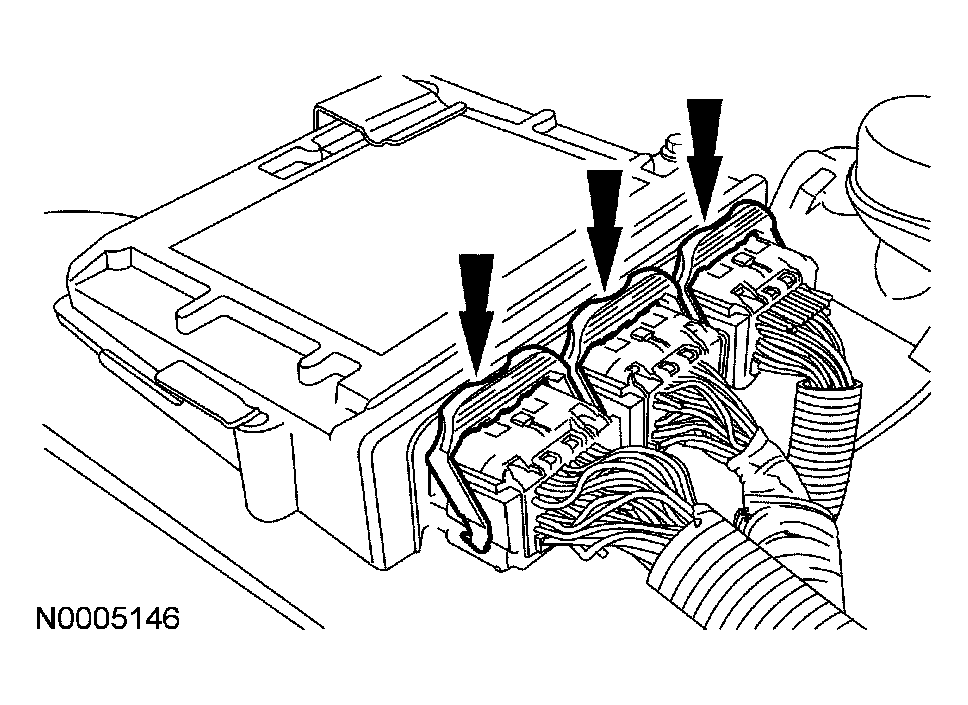

- Release the clips and disconnect the 3 PCM electrical connectors.
- Remove the bolt and the PCM.
NOTE:
Any powertrain control module (PCM) replacement will require that ALL customer keys are available to be programmed at the time of installation. PCM replacement DOES NOT require new keys.
