Compass Display and Module

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

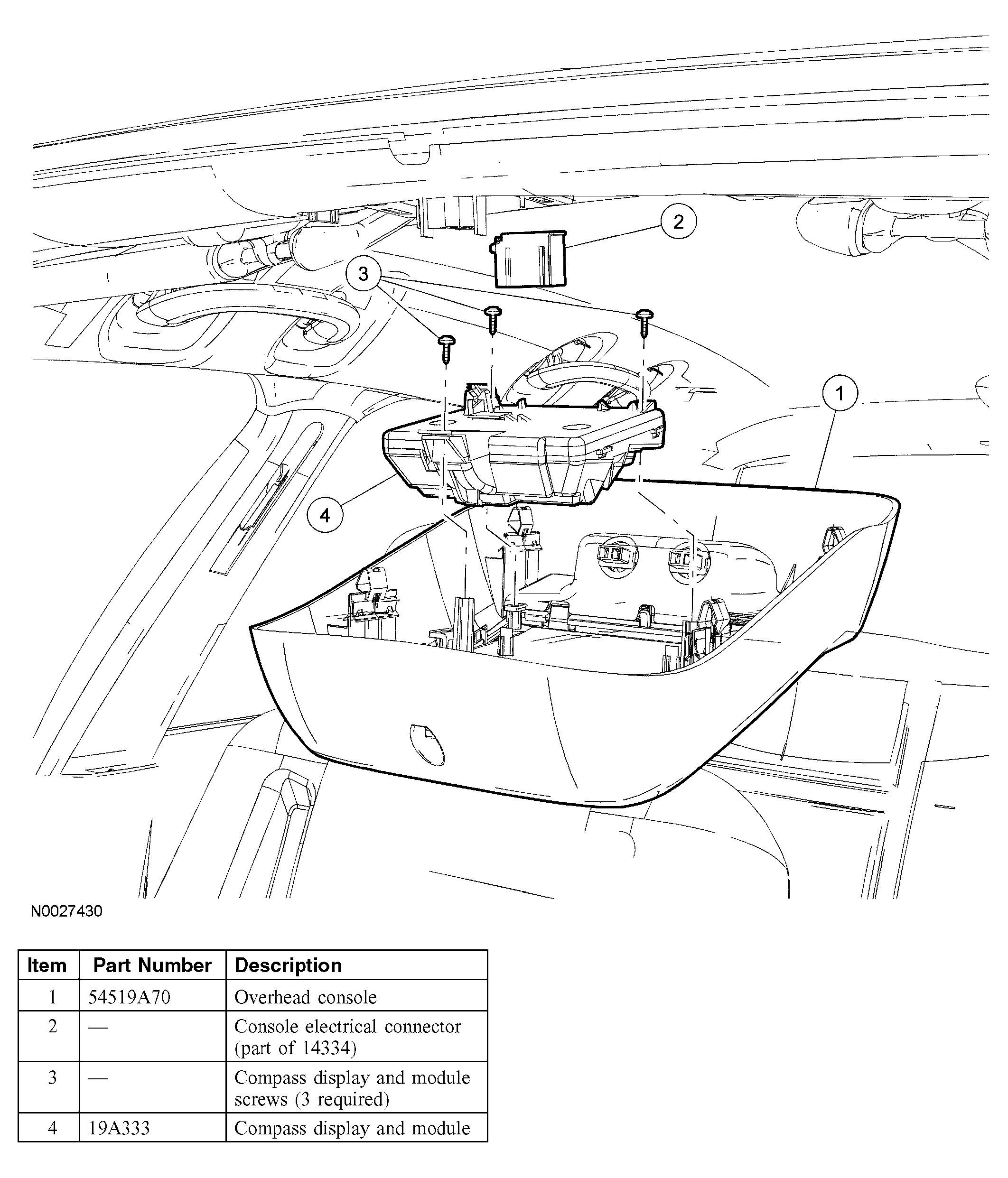

Fig 1: Removing/Installing Compass Display And Module

Courtesy of FORD MOTOR CO.

Remove the overhead console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the 3 screws and the compass display and module.
To install, reverse the removal procedure.
