Heater Hose - 2.3L: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

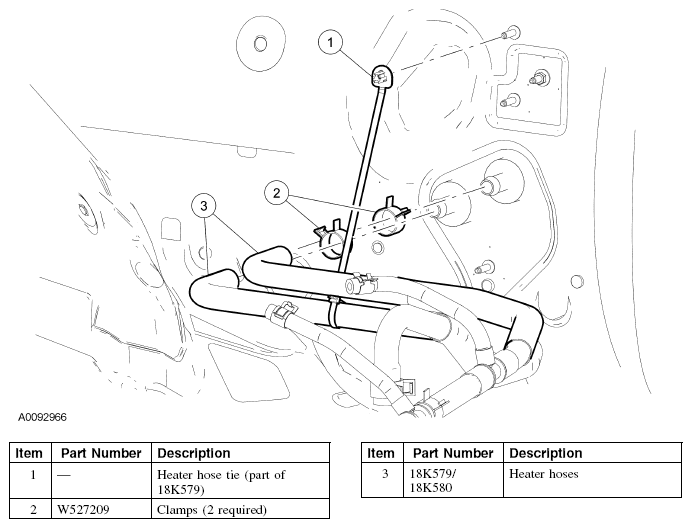

Fig 1: Identifying Heater Hose Components - Heater Hose-To-Heater Core Connections (2.3L)

Courtesy of FORD MOTOR CO.

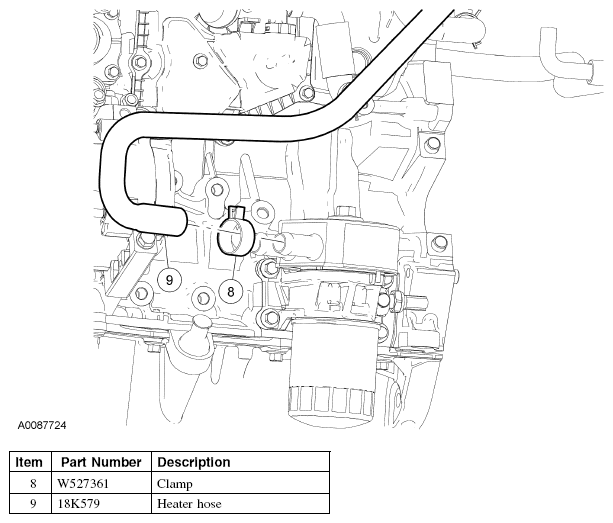

Fig 2: Identifying Heater Hose Components - Heater Hose-To-Block Connection (2.3L)

Courtesy of FORD MOTOR CO.

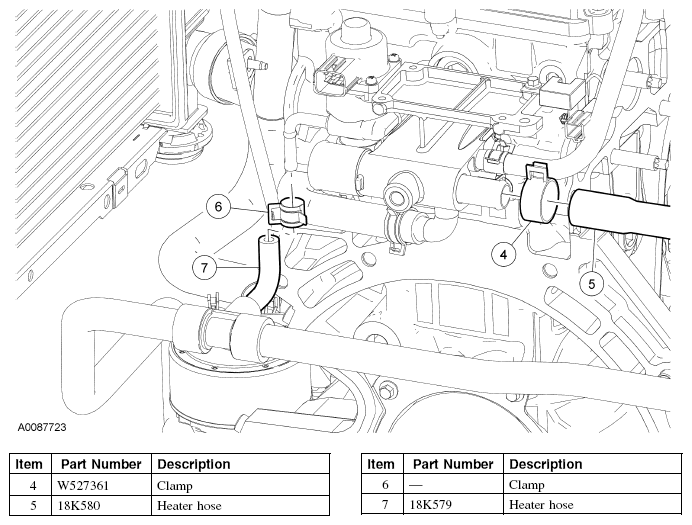

Fig 3: Identifying Heater Hose Components - Heater Hose-To-Oil Cooler Connection (2.3L)

Courtesy of FORD MOTOR CO.
