Engine Front Cover: Installation

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION:
    1. Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    2. Do not damage the oil pan gasket while cleaning the sealant from the cylinder block-to-oil pan joint.
  1. Use a plastic scraping tool to remove all traces of sealant.
    • Clean all sealing surfaces with silicone gasket remover and metal surface prep.
    2. NOTE:
    1. Install 3 new gaskets in the front cover.
    2. The engine front cover must be installed and the bolts tightened within 4 minutes of applying sealant.
    Fig 1: Locating Diameter Dot Of Silicone Gasket
    G04655649Courtesy of FORD MOTOR CO.
  2. Apply a 6 mm (0.23 in) diameter dot of silicone gasket and sealer to the cylinder block, lower cylinder block, cylinder head and oil pan mating surfaces.
  3. Position the engine front cover and install the 15 bolts and stud bolt.
    • Tighten in the sequence shown to 25 N.m (18 lb-ft).
    Fig 2: Identifying Tightening Sequence Of Bolts & Stud Bolt
    G04655650Courtesy of FORD MOTOR CO.
  4. Install the 2 oil pan-to-front cover bolts.
    • Tighten to 25 N.m (18 lb-ft).

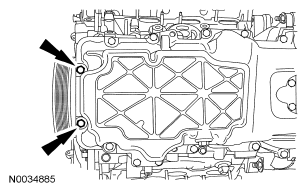

    Fig 3: Locating Oil Pan-To-Front Cover Bolts
    G04655651Courtesy of FORD MOTOR CO.
  5. Remove the oil pan plug and drain the engine oil.
    • Install the plug and tighten to 26 N.m (19 lb-ft).
  6. Attach the ground wire to the engine front cover stud bolt and install the nut.
    • Tighten to 20 N.m (15 lb-ft).
  7. Install the 2 A/C compressor bracket-to-engine front cover bolts.
    • Tighten to 25 N.m (18 lb-ft).
  8. Position the A/C compressor and install the 2 bolts and 2 nuts.
    • Tighten to 25 N.m (18 lb-ft).
  9. Position the radiator splash shield and install the 3 pin-type retainers.
  10. Install the 2 generator-to-engine front cover studs.
    • Tighten to 8 N.m (71 lb-in).
  11. Install the 2 generator-to-engine front cover stud nuts.
    • Tighten to 48 N.m (35 lb-ft).
  12. Connect the camshaft position (CMP) sensor electrical connector.
  13. Connect the crankshaft position (CKP) sensor electrical connector.
  14. Position the power steering pump and fluid reservoir. Install the 3 power steering pump nuts.
    • Tighten to 25 N.m (18 lb-ft).
  15. Install the accessory drive belt tensioner and the bolt.
    • Tighten to 45 N.m (33 lb-ft).
  16. Install the LH and RH valve covers. For additional information, refer to VALVE COVER - LH  and VALVE COVER - RH .
  17. Install the crankshaft front seal. For additional information, refer to LOWER END COMPONENTS - EXPLODED VIEW, CRANKSHAFT PULLEY AND CRANKSHAFT FRONT SEAL  and CRANKSHAFT FRONT SEAL .
  18. Fill the engine with clean engine oil.
  19. Connect the battery ground cable. For additional information, refer to REMOVAL AND INSTALLATION .
