Engine Front Cover: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Fig 1: Exploded View Of Engine Front Cover Components (1 Of 2) With Torque Specifications
G04655646Courtesy of FORD MOTOR CO.

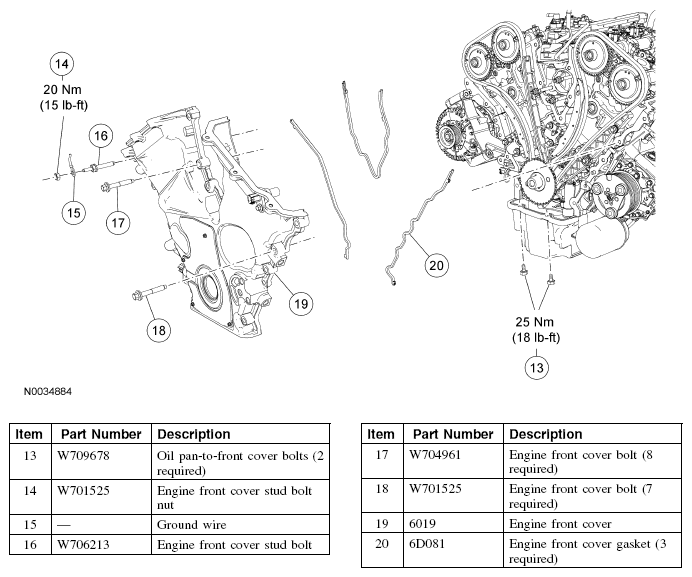

Fig 2: Exploded View Of Engine Front Cover Components (2 Of 2) With Torque Specifications
G04655647Courtesy of FORD MOTOR CO.
