Thermostatic Expansion Valve: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

Fig 1: Thermostatic Expansion Valve Replacement Components (1 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

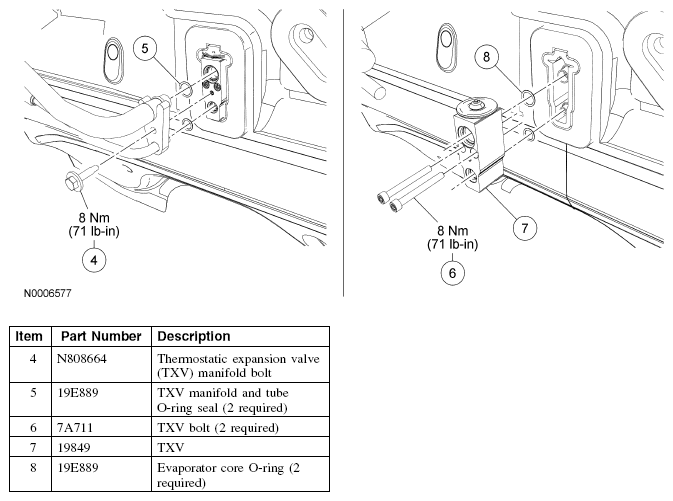

Fig 2: Thermostatic Expansion Valve Replacement Components (2 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.
