Speed Control Switch: Notes

WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

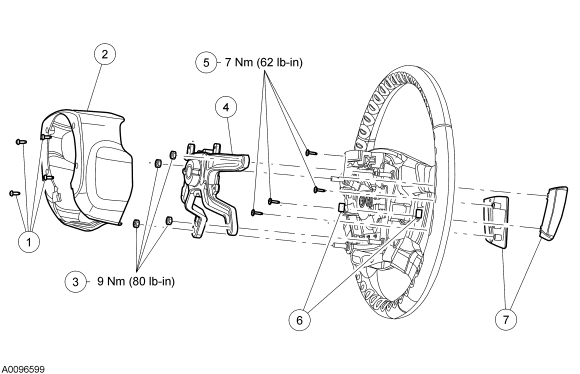

Fig 1: Exploded View Of Speed Control Switch With Torque Specifications
GF0025572Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Steering wheel cover screws (part of 3600) (4 required)
2 - Steering wheel cover (part of 3600)
3 - Steering wheel brace nuts (part of 3600) (4 required)
4 - Steering wheel brace (part of 3600)
5 - Speed control switch screws (part of 3600) (4 required)
6 - Speed control switch electrical connectors (part of the speed control jumper harness)
7 9C888 Speed control switches
