Speed Control Cable: Notes

WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

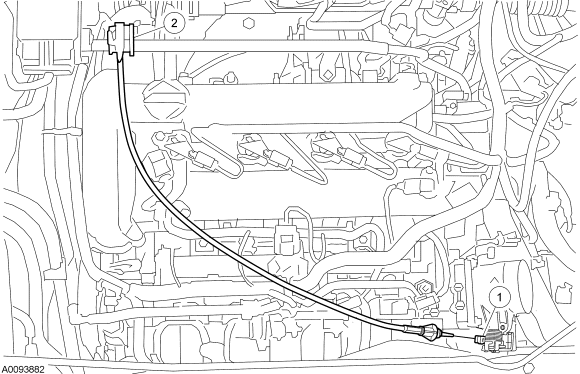

Fig 1: Speed Control Cable Components - 2.3L
GF0025564Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Speed control cable (throttle lever end part of 9A825)
2 9A825 Speed control cable

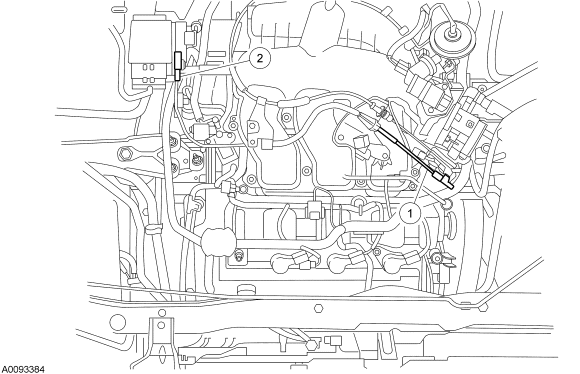

Fig 2: Speed Control Cable Components - 3.0L
GF0025565Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Speed control cable (throttle lever end part of 9A825)
2 9A825 Speed control cable
