RCM Does Not Respond
WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Check circuit for open

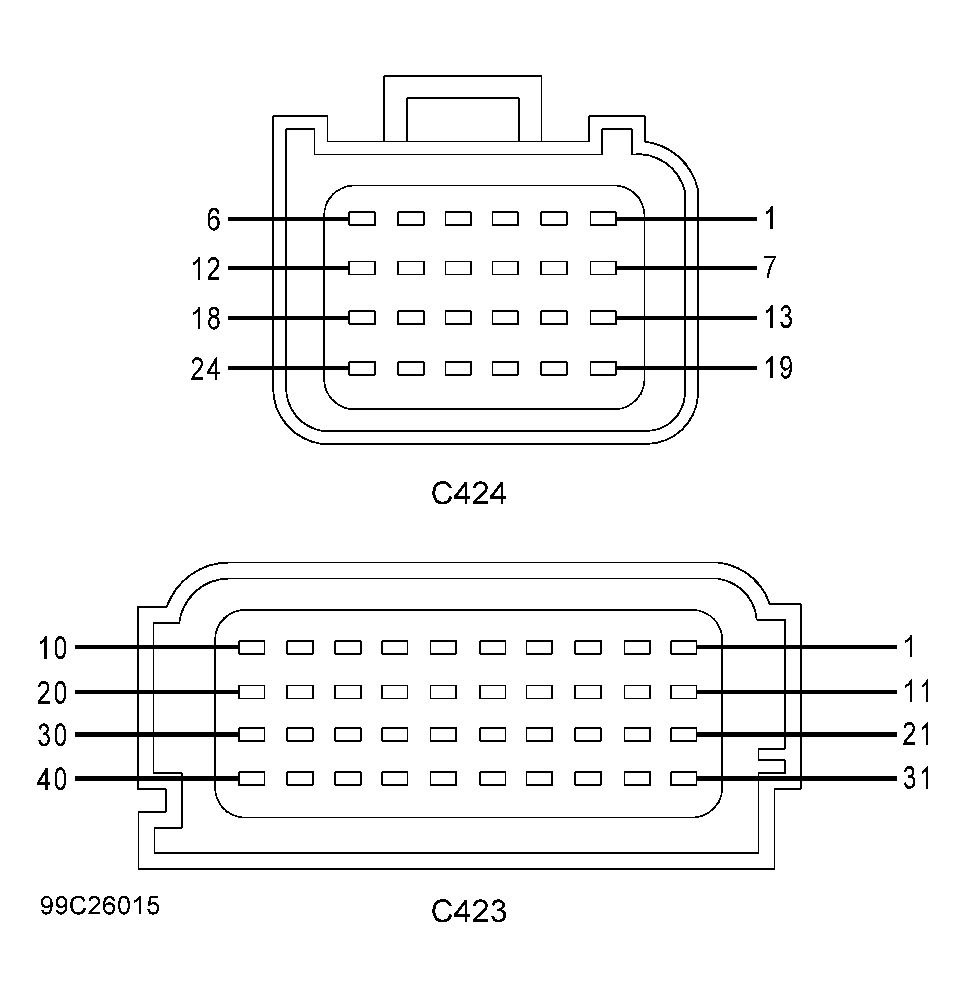

Turn ignition switch to OFF position. Access RCM and disconnect harness connector C424. See RESTRAINTS CONTROL MODULE (RCM) under REMOVAL & INSTALLATION. Measure resistance between RCM harness connector C424, terminal No. 15 and Data Link Connector (DLC) terminal No. 7 (White/Red wire, circuit No. 8-EE7). See Fig 1 & Figure . If resistance is less than 5 ohms, replace RCM. If resistance is more than 5 ohms, repair open in White/Red wire. See WIRING DIAGRAMS . Recheck system operation.
