Ambient Lighting Module: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

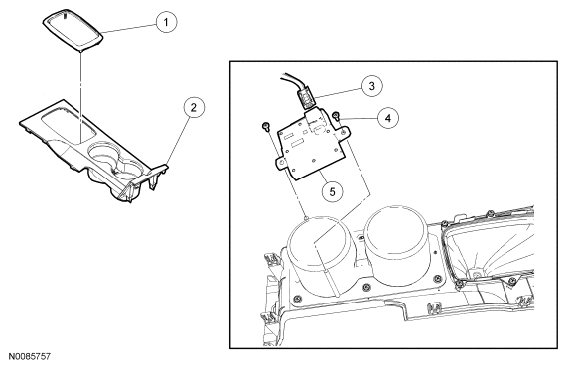

| Item |
Part Number |
Description |
| 1 |
061A16 |
Selector lever trim ring |
| 2 |
045A76 |
Floor console finish panel |
| 3 |
- |
Ambient lighting module electrical connector (part of 14D375) |
| 4 |
W701679 |
Ambient lighting module screws (2 required) |
| 5 |
13C788 |
Ambient lighting module |
