Actuator-Speed Control Servo: Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Insert the speed control cable slug into the speed control servo pulley slot.
1. Gently push the retaining spring.
2. Insert the speed control cable slug completely into the speed control servo pulley slot.

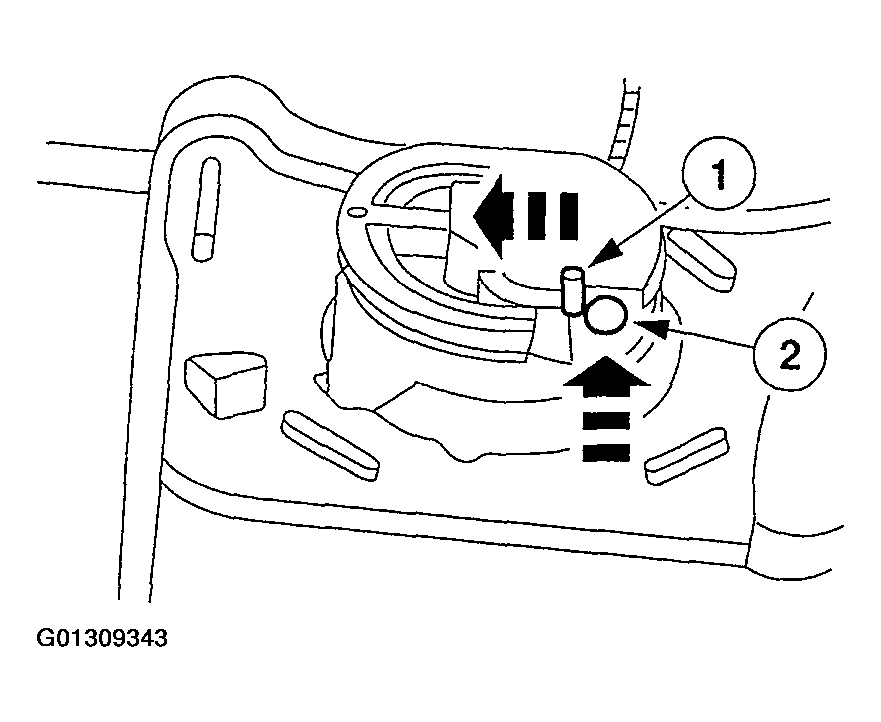

  Fig 1: Inserting Speed Control Cable Slug Into Speed Control Servo Pulley Slot
  Courtesy of FORD MOTOR CO.

NOTE: Make sure the rubber seal is correctly seated onto the speed control actuator cable cap.

NOTE: Incorrect wrapping of the speed control actuator cable core wire around the speed control servo pulley may result in a high idle condition.

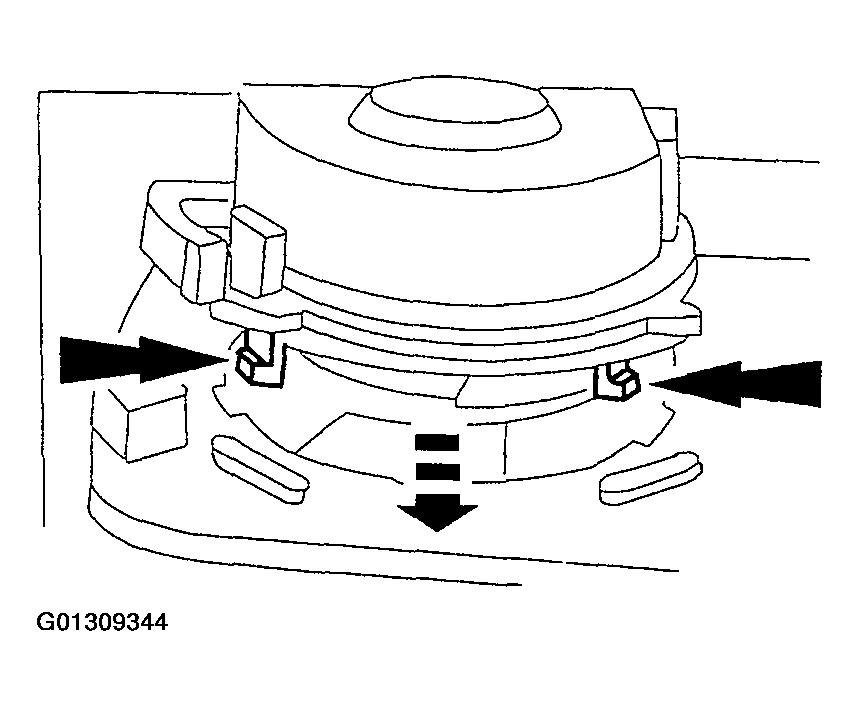

Fig 2: Aligning Speed Control Actuator Cable Cap Tabs

Courtesy of FORD MOTOR CO.

Align the speed control actuator cable cap tabs with the slots in the speed control servo housing and seat the speed control cable cap.
Rotate the speed control actuator cable cap clockwise until the locking tab engages.

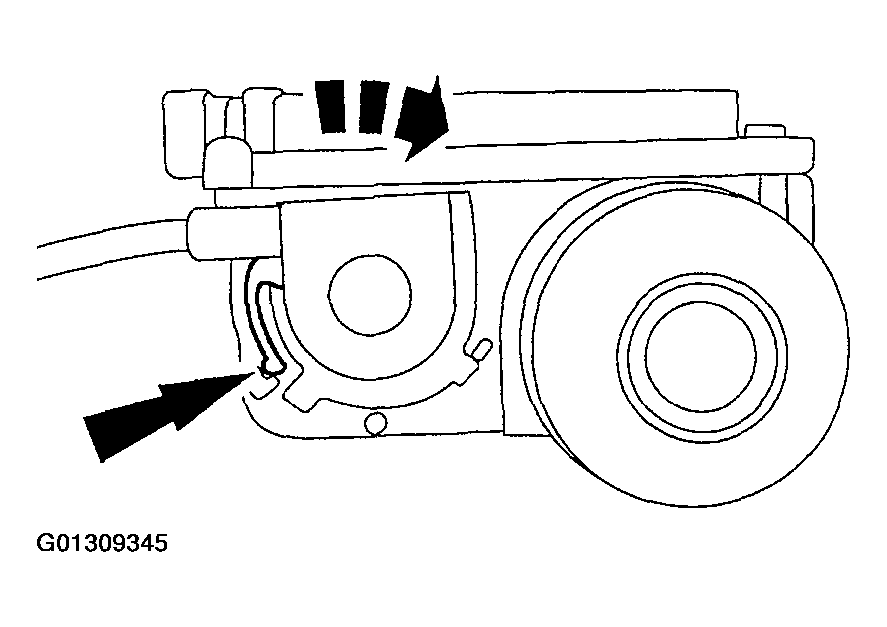

Fig 3: Rotating Speed Control Actuator Cable Cap
Courtesy of FORD MOTOR CO.
Install the speed control servo bracket screws.

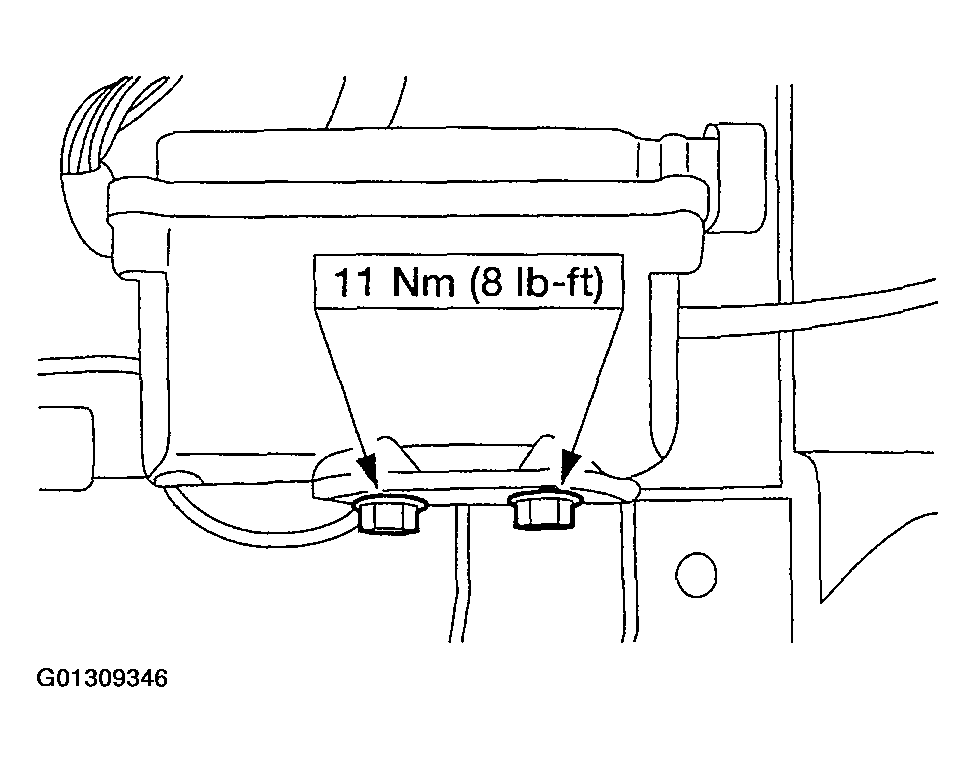

Fig 4: Installing Speed Control Servo Bracket Screws
Courtesy of FORD MOTOR CO.
Connect the speed control servo electrical connector.

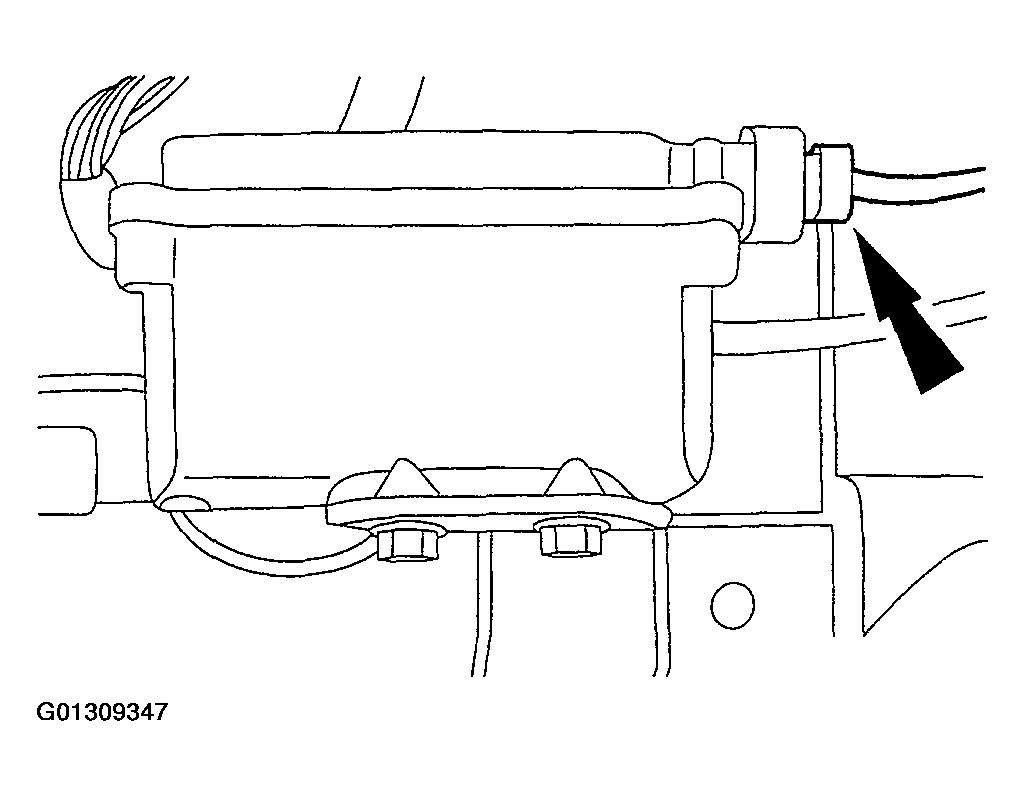

Fig 5: Connecting Speed Control Servo Electrical Connector
Courtesy of FORD MOTOR CO.
Install the engine air cleaner assembly.
Connect the speed control actuator cable end to the throttle nailhead.

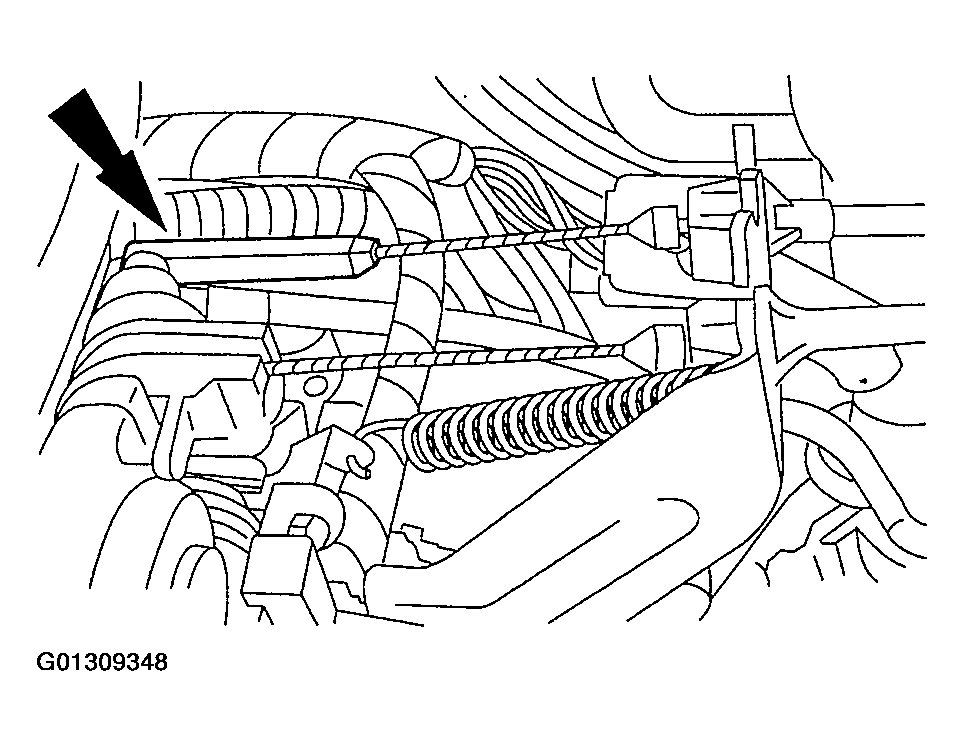

Fig 6: Connecting Speed Control Actuator Cable End To Throttle Nailhead
Courtesy of FORD MOTOR CO.
Connect the battery ground cable.
