Pinpoint Test A: No Communication With The Front Electronic Control Module (Fem)
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

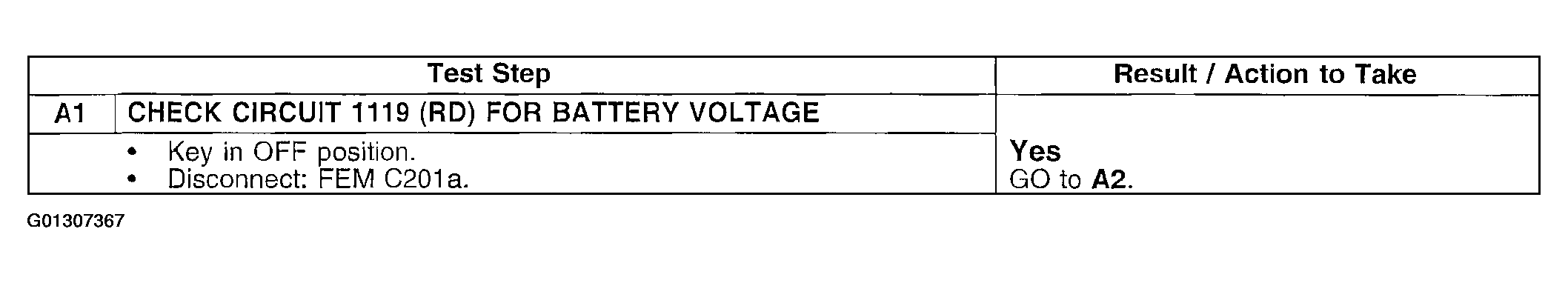

Fig 1: Pinpoint Test A: No Communication With Front Electronic Control Module (FEM) (Steps A1)
Courtesy of FORD MOTOR CO.

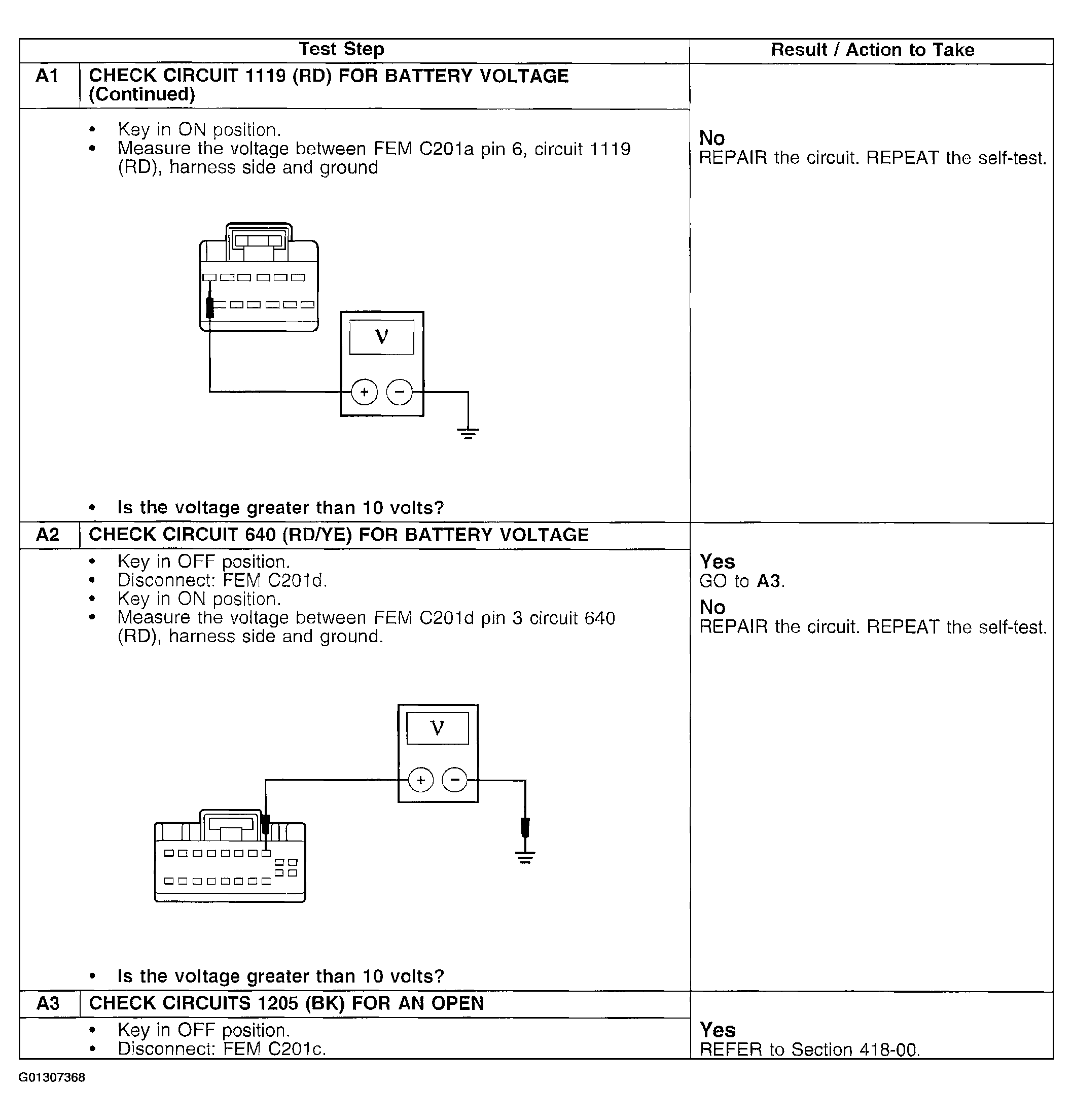

Fig 2: Pinpoint Test A: No Communication With Front Electronic Control Module (FEM) (Steps A1 Continued-A2)
Courtesy of FORD MOTOR CO.

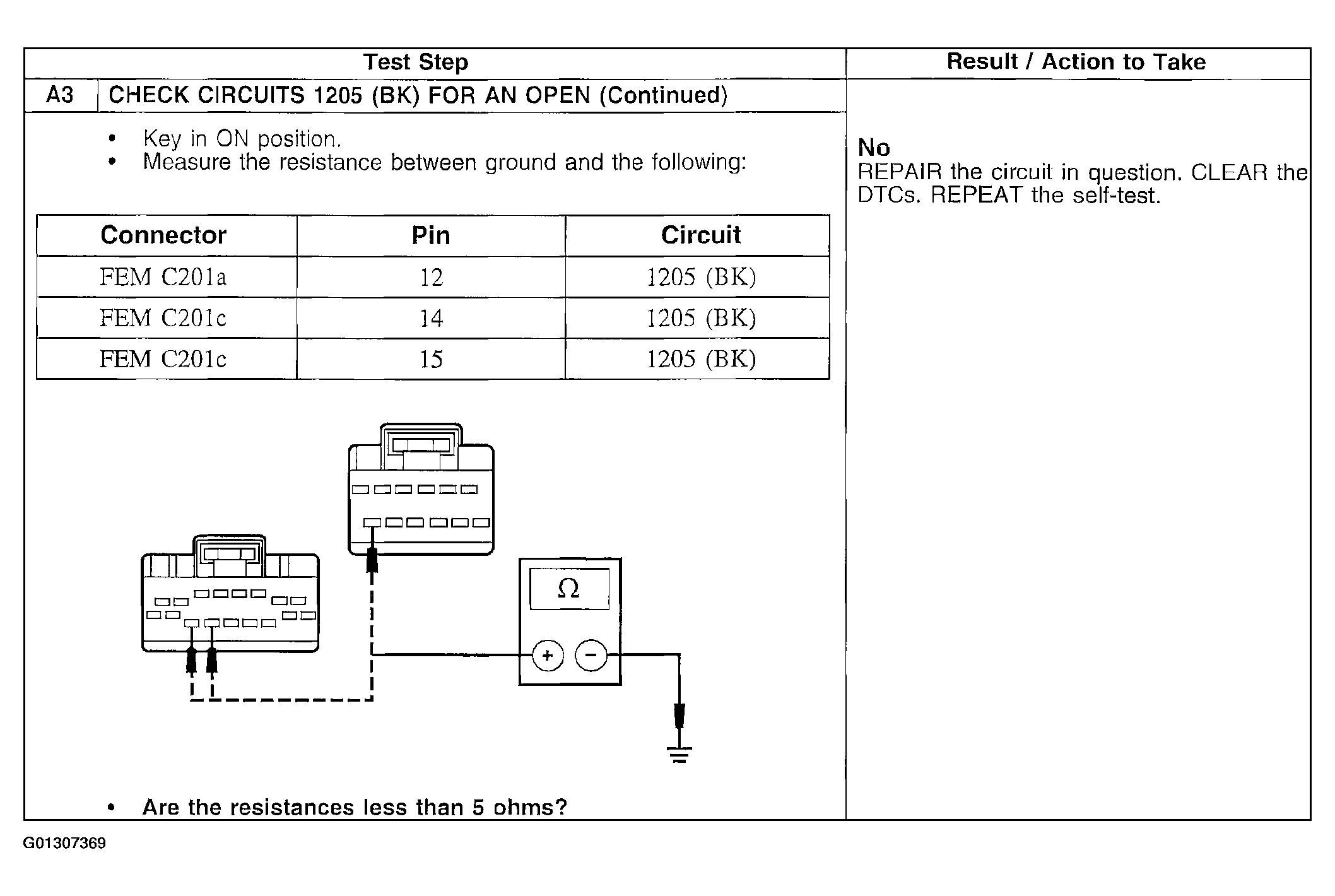

Fig 3: Pinpoint Test A: No Communication With Front Electronic Control Module (FEM) (Steps A3)
