Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to removal of the RKE module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into a new module once installed. For additional information, refer to MODULE CONFIGURATION .

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

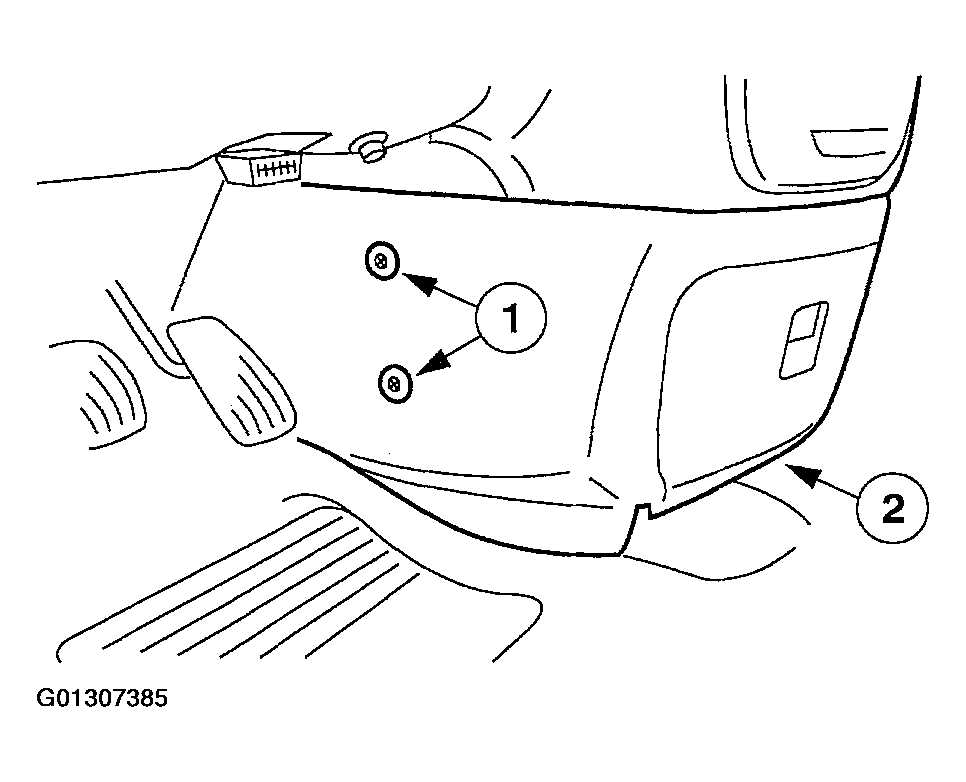

Remove the utility compartment.
1. Remove the four pin-type retainers.
2. Remove the utility compartment.
  - If equipped, disconnect the power point electrical connector.

    Fig 1: Removing Utility Compartment
    Courtesy of FORD MOTOR CO.

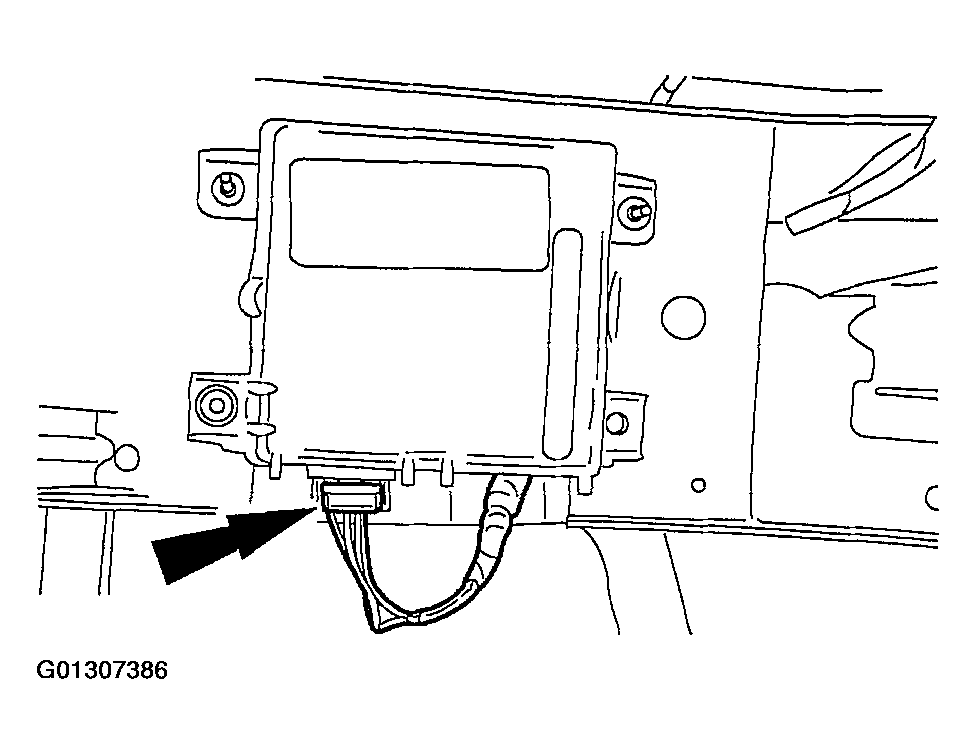

Disconnect the electrical connector.

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

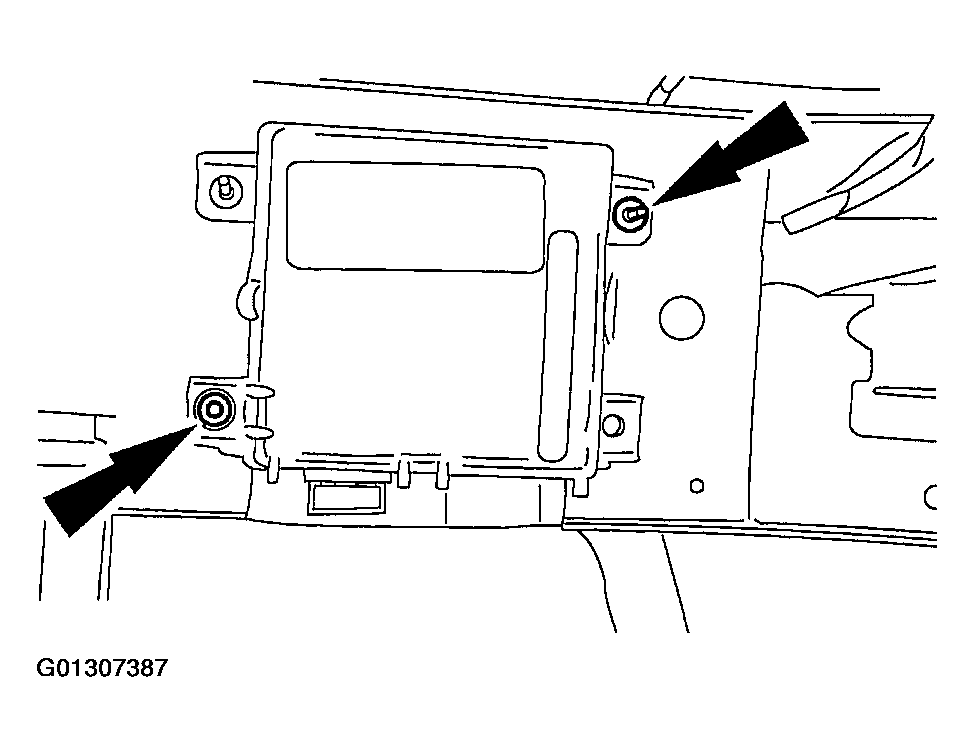

Remove the nuts and the remote keyless entry module.

Fig 3: Removing Nuts And Remote Keyless Entry Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
