Engine Mount - Lower: Installation

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower motor mount.
    1. Install the motor mount.
    2. Install the two bolts.

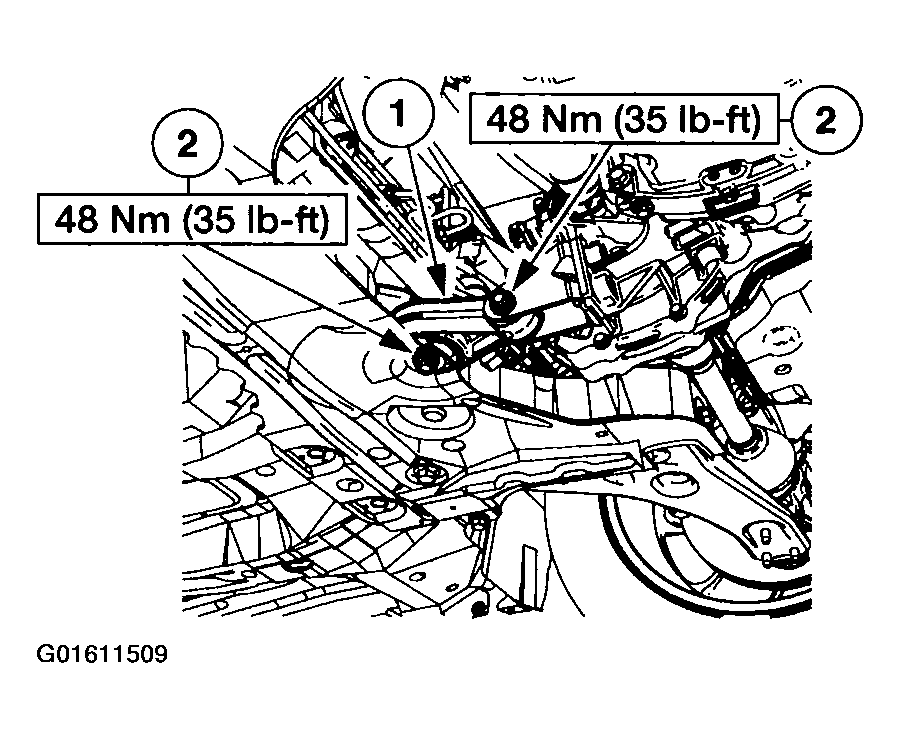

      Fig 1: Installing Lower Motor Mount Bolts
      G01611509Courtesy of FORD MOTOR CO.
