In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Engine balancing is not required. Balance weights should not be installed on the new flywheel.

NOTE: Special nuts are used for installation. Do not use standard nuts.

Install the flexplate. Tighten the nuts in the sequence shown in three stages:
- Stage 1: Tighten to 50 Nm (37 lb-ft).
- Stage 2: Tighten to 80 Nm (50 lb-ft).
- Stage 3: Tighten to 112 Nm (83 lb-ft).

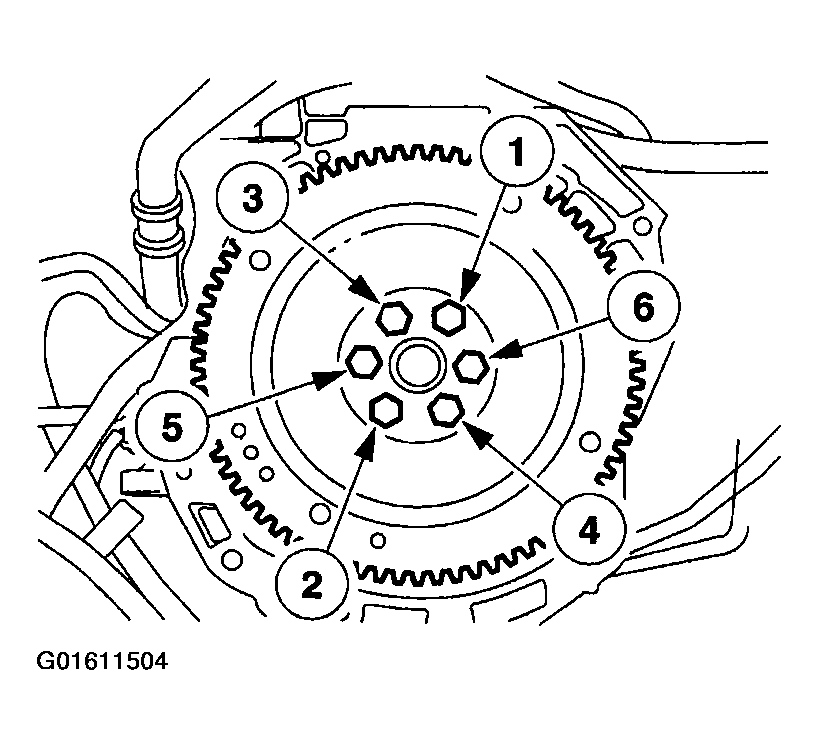

  Fig 1: Flexplate Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
