In-Vehicle Repair: Flywheel: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

With vehicle in NEUTRAL, position it on a hoist. For additional information, refer to RIDING HEIGHT ADJUSTMENT .
Remove the transmission. For additional information, refer to MANUAL TRANSAXLE EXTERNAL CONTROLS-MTX75 TRANSAXLE .
Remove the clutch assembly. For additional information, refer to CLUTCH-MTX75 TRANSAXLE .
Remove the bolts and the flywheel.

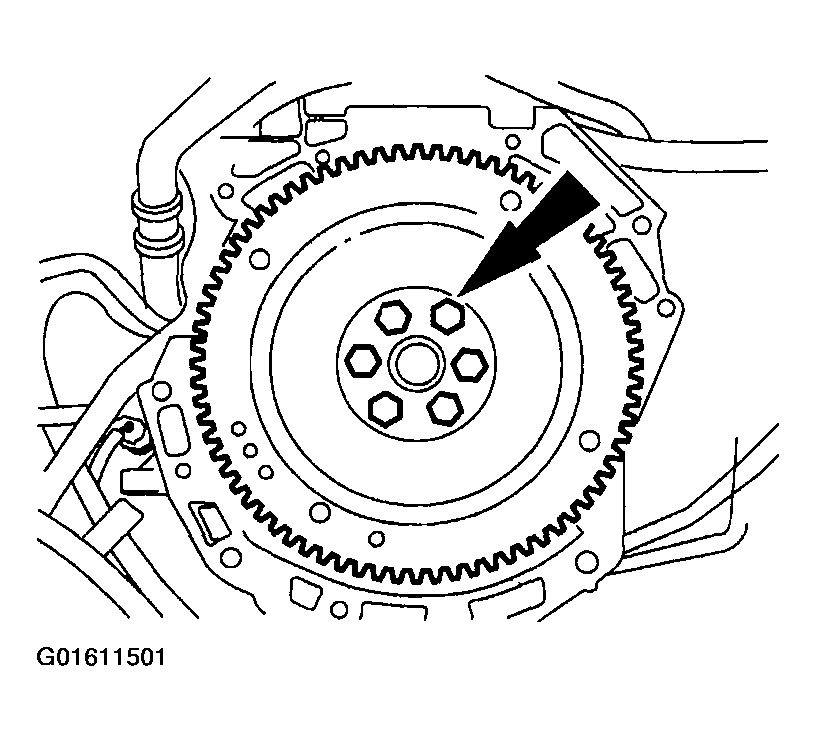

Fig 1: Removing Flywheel Bolts
Courtesy of FORD MOTOR CO.
