Oil Pan: Installation

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Clean and inspect all mating surfaces.

NOTE: If the oil pan is not secured within four minutes of sealant application the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or four minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

NOTE: The oil pan must be installed and the bolts tightened within four minutes of applying the silicone gasket and sealant.

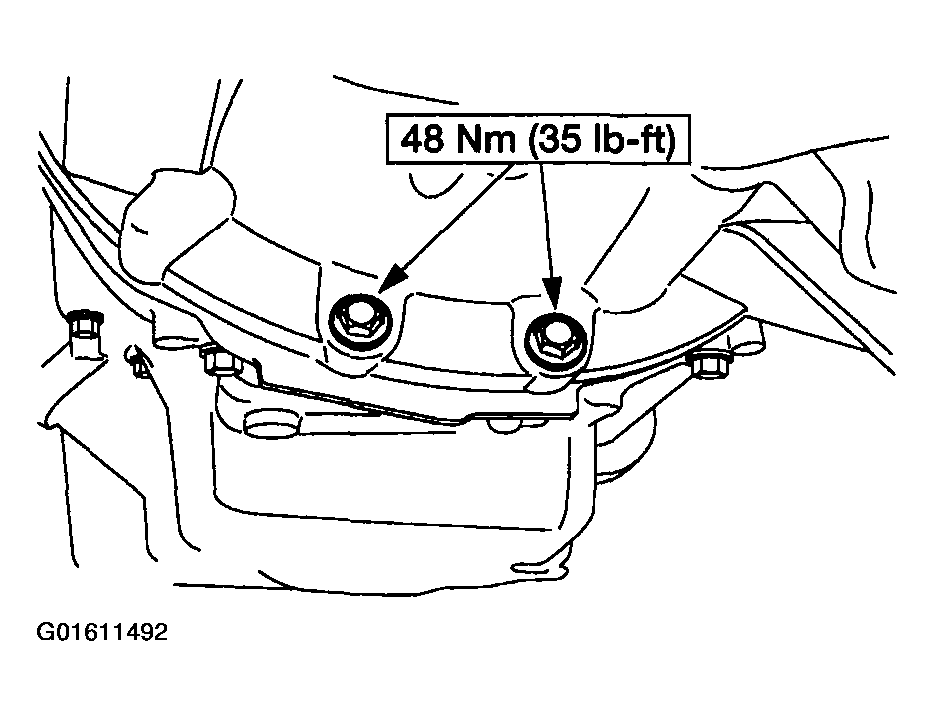

Fig 1: Removing Oil Pan-To-Bellhousing Bolts

Courtesy of FORD MOTOR CO.

Apply a 2.5 mm bead of silicone gasket and sealant to the oil pan. Install the oil pan. Install the oil pan-to-bellhousing bolts.
Install the nuts and the studs.

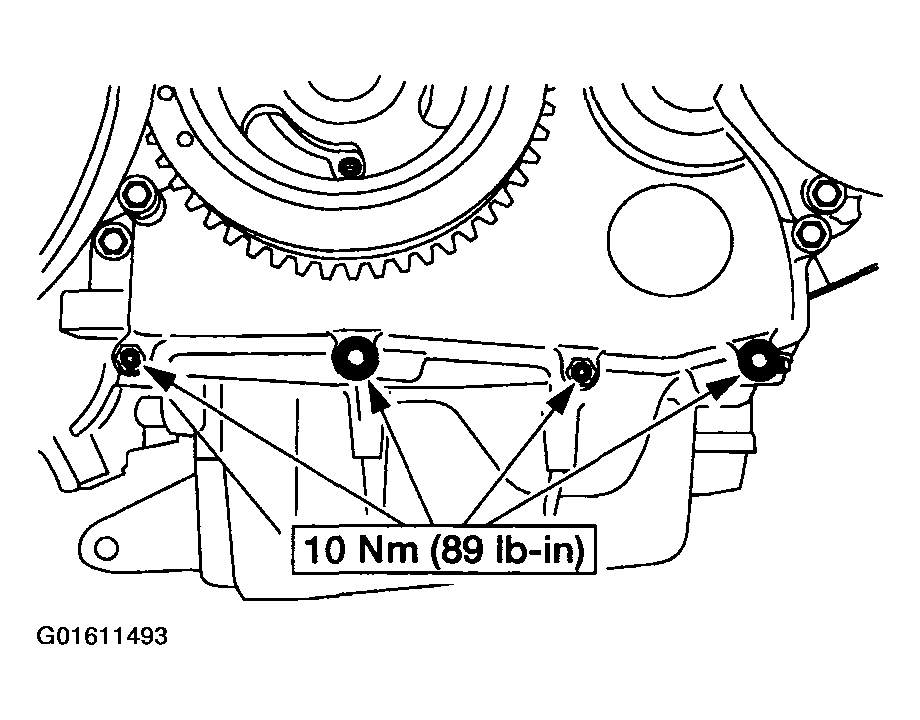

Fig 2: Removing Nuts And Studs
Courtesy of FORD MOTOR CO.
Install the wiring harness.
1. Install the wiring harness onto the studs.
2. Install the nuts.

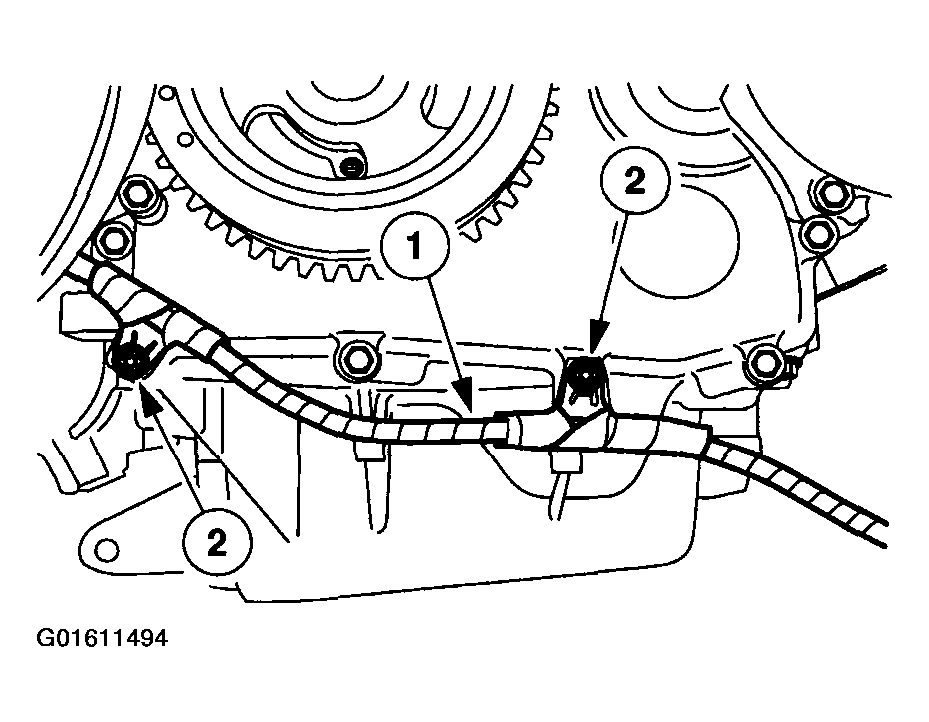

  Fig 3: Installing Wiring Harness
  Courtesy of FORD MOTOR CO.
Install the oil pan-to-bellhousing bolts.

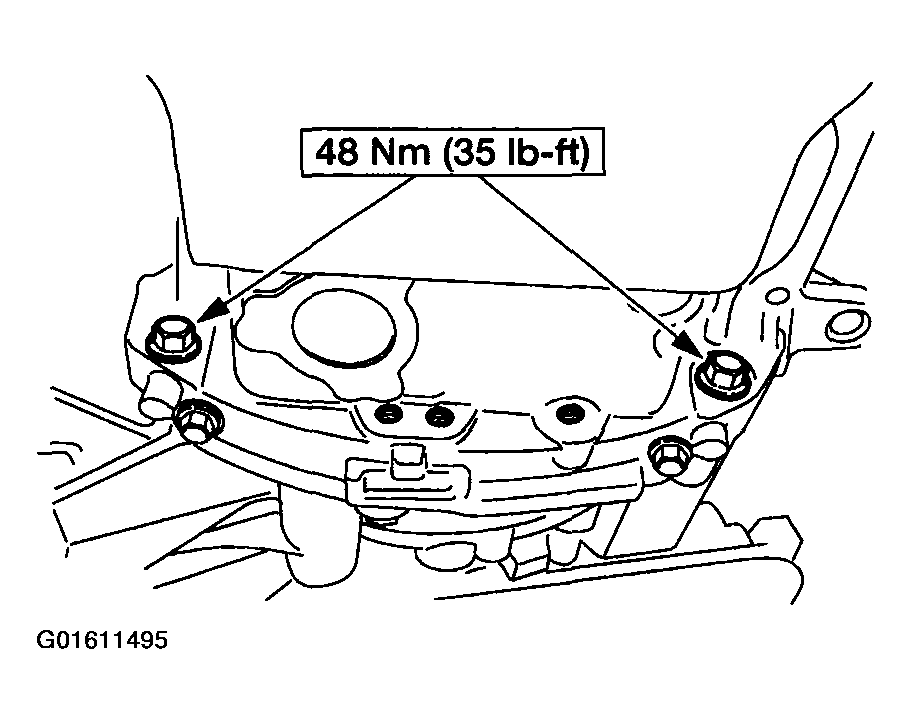

Fig 4: Installing Oil Pan-To-Bellhousing Bolts
Courtesy of FORD MOTOR CO.
Tighten the oil pan in the sequence shown.

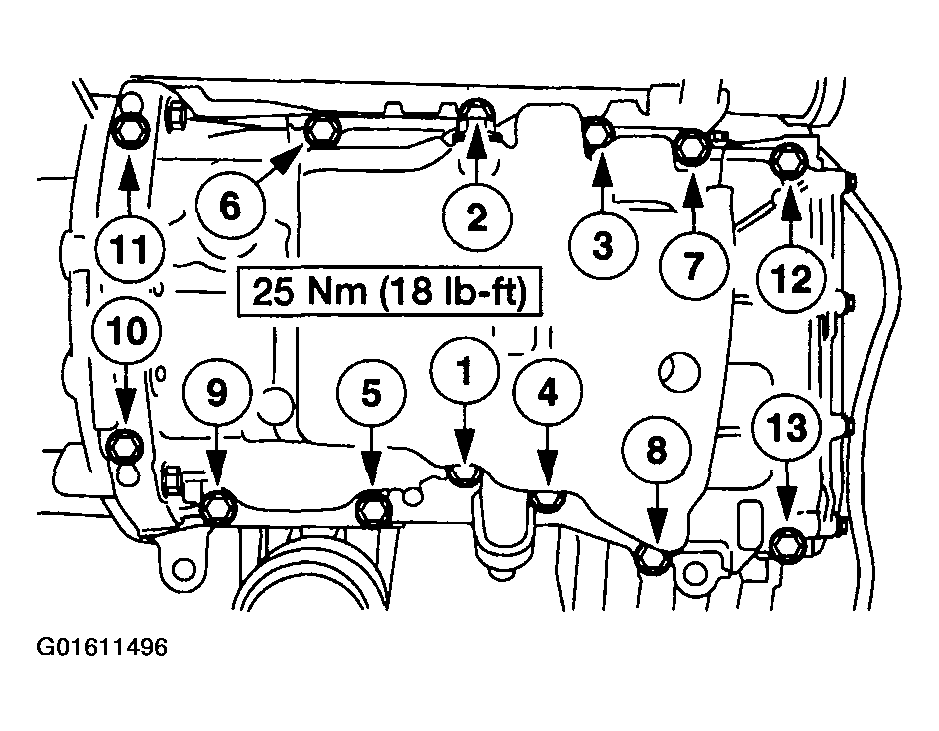

Fig 5: Oil Pan Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.

NOTE: Lubricate the O-ring with clean engine oil.

Install the engine oil level indicator tube and the bolt.
1. Install the engine oil level indicator tube.
2. Install the bolts.
3. Install the oil level indicator.

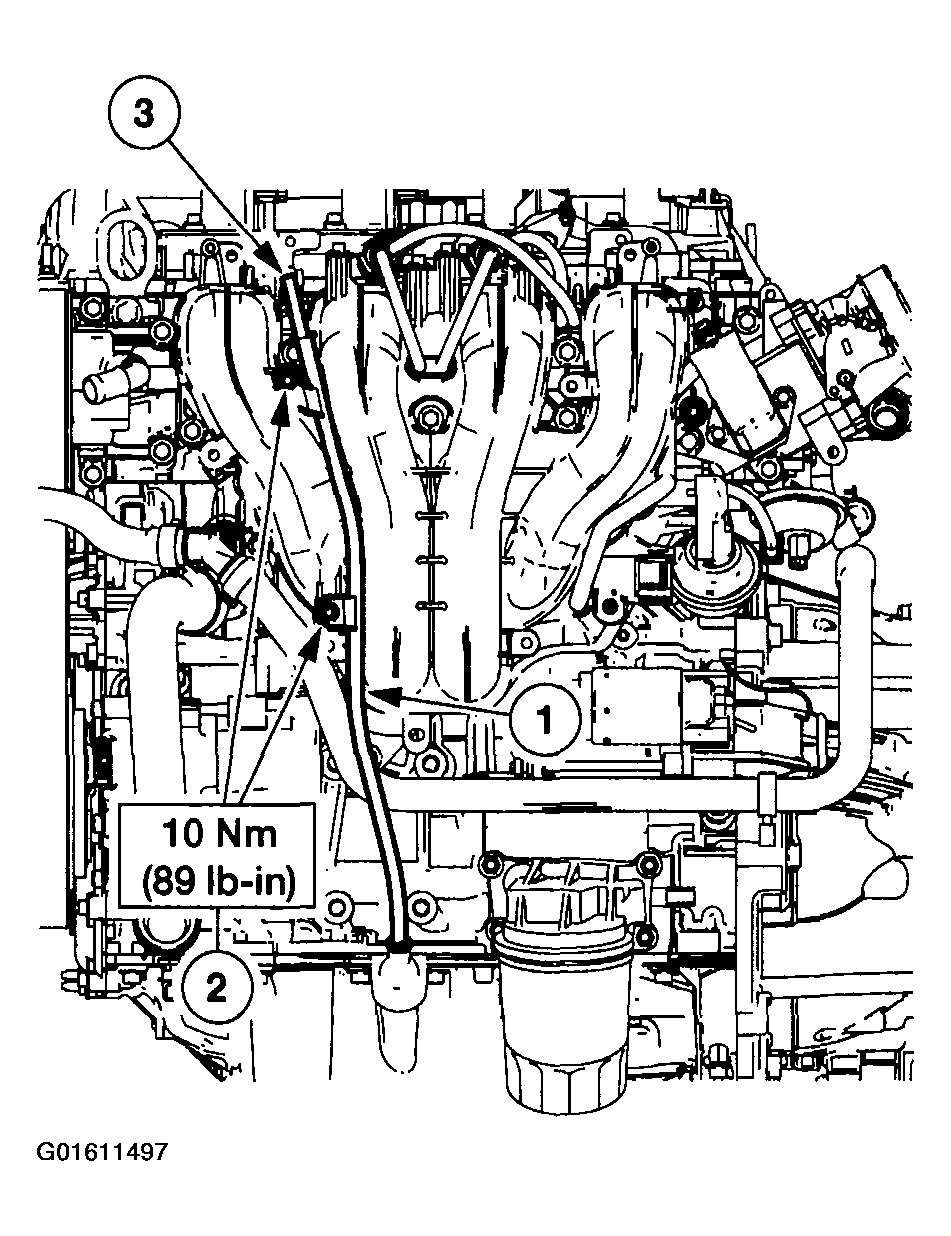

  Fig 6: Installing Engine Oil Level Indicator Tube And Bolt
  Courtesy of FORD MOTOR CO.
Fill the engine with clean engine oil.
