Climate Control Assembly: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio unit. For additional information, refer to AUDIO .
Remove the instrument panel console bezel retaining screws.

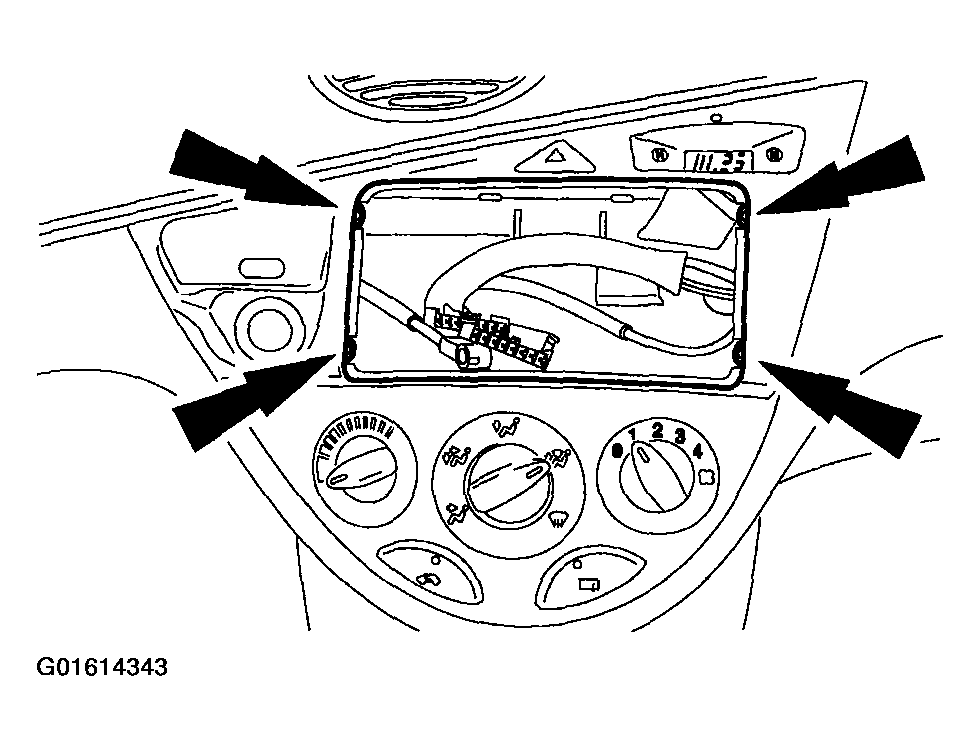

Fig 1: Removing Instrument Panel Console Bezel Retaining Screws
Courtesy of FORD MOTOR CO.
Pull the instrument panel console bezel forwards and disconnect the electrical connectors.

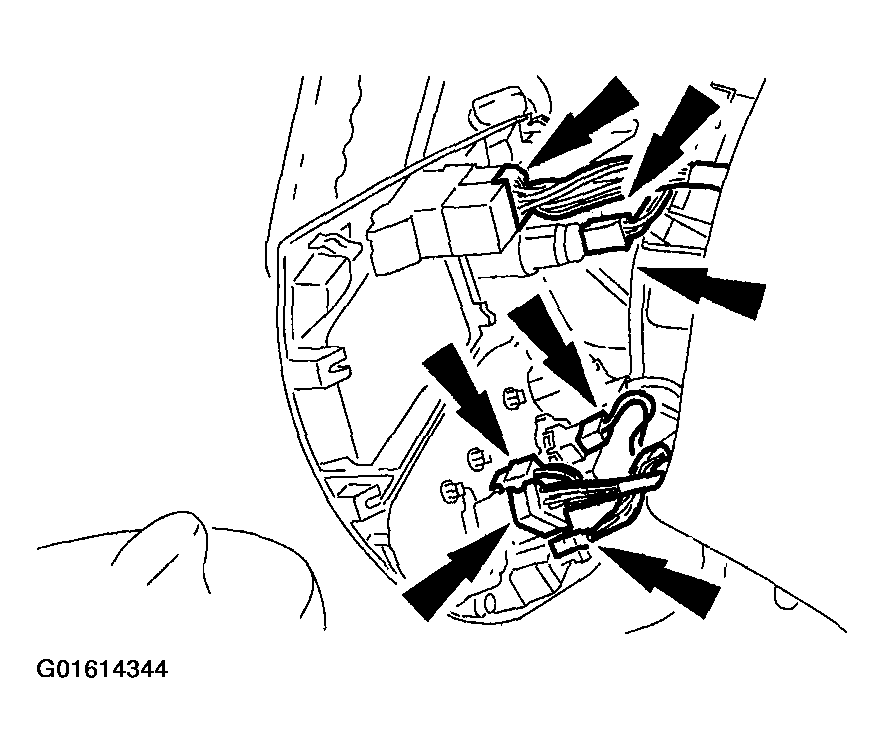

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Detach the temperature and air distribution blend door bowden cables from the climate control assembly.

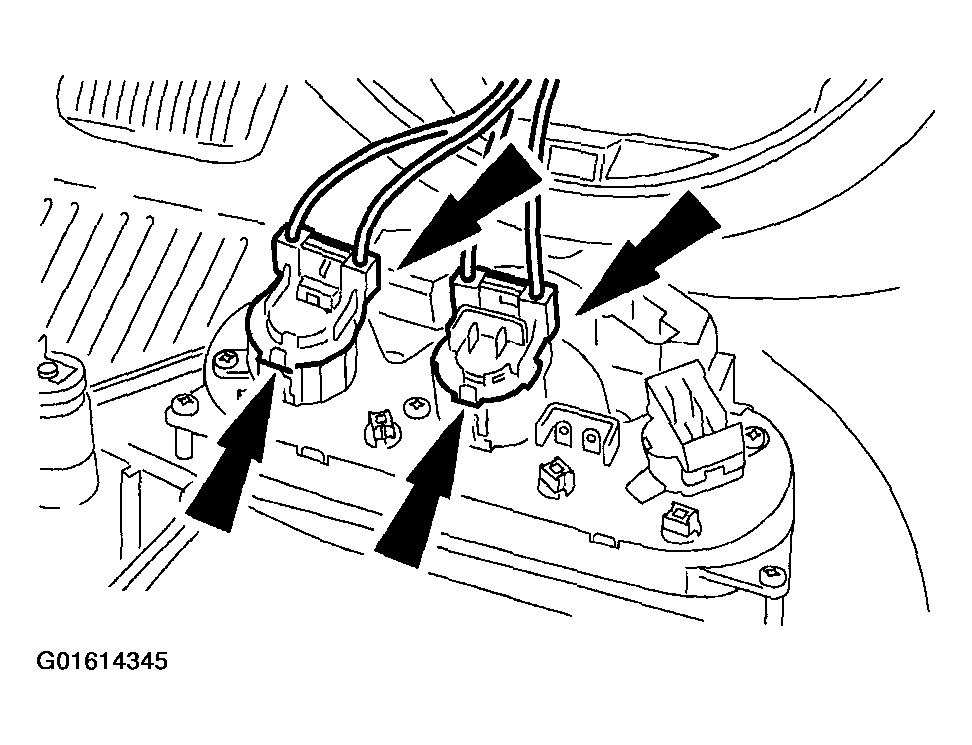

Fig 3: Detaching Temperature And Air Distribution Blend Door Bowden Cables
Courtesy of FORD MOTOR CO.
Remove the climate control assembly.

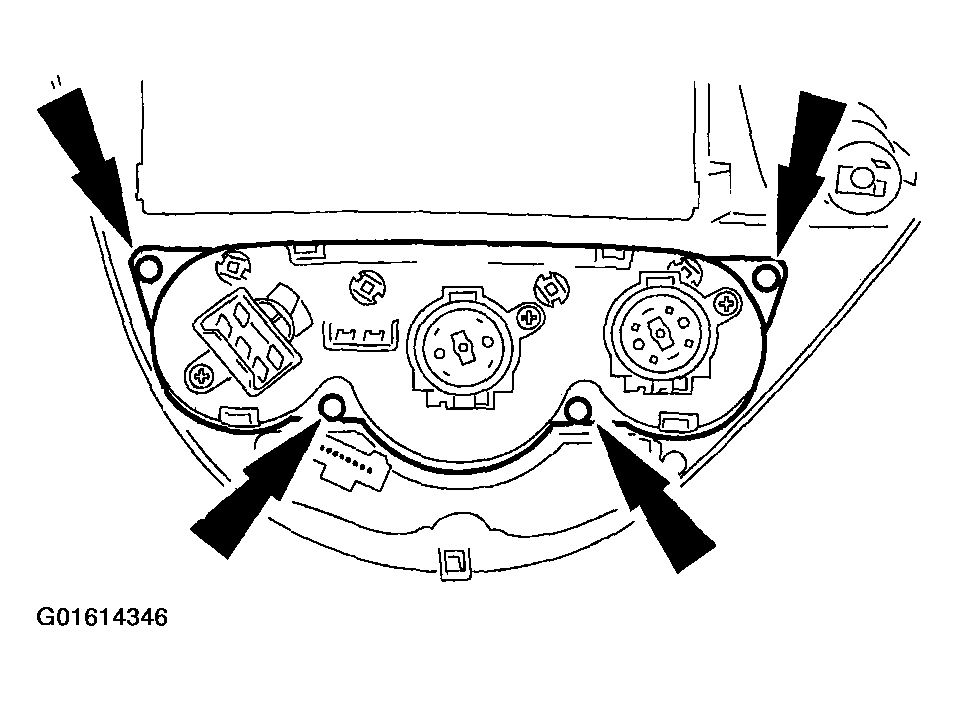

Fig 4: Removing Climate Control Assembly
Courtesy of FORD MOTOR CO.
