Audio Unit: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tools, remove the audio unit.
1. Insert the special tools into the locating holes. Pull the tools gently to the left and right of the audio unit to release the locking tangs.
2. Slide the audio unit out of the instrument panel.

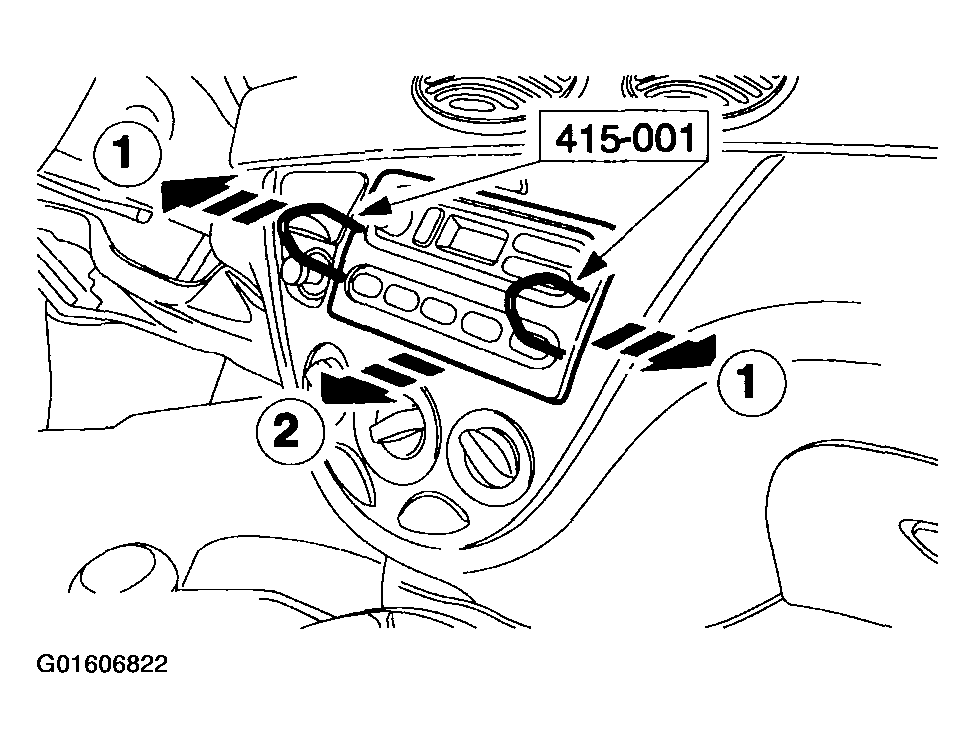

Fig 1: Removing Audio Unit
Courtesy of FORD MOTOR CO.
Remove the audio unit.
- Disconnect the audio unit electrical connectors.
- Disconnect the subwoofer amplifier electrical connector (if equipped).

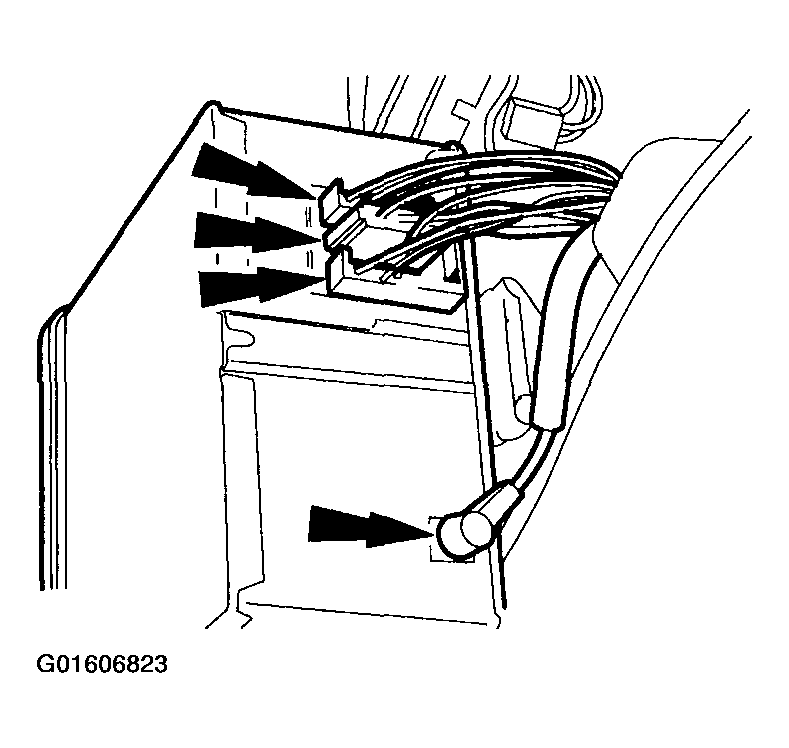

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
