Connecting Rod - Twist

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the measurement is within specification.
- If out of specification, install new components as necessary. Refer to ENGINE for the procedure .

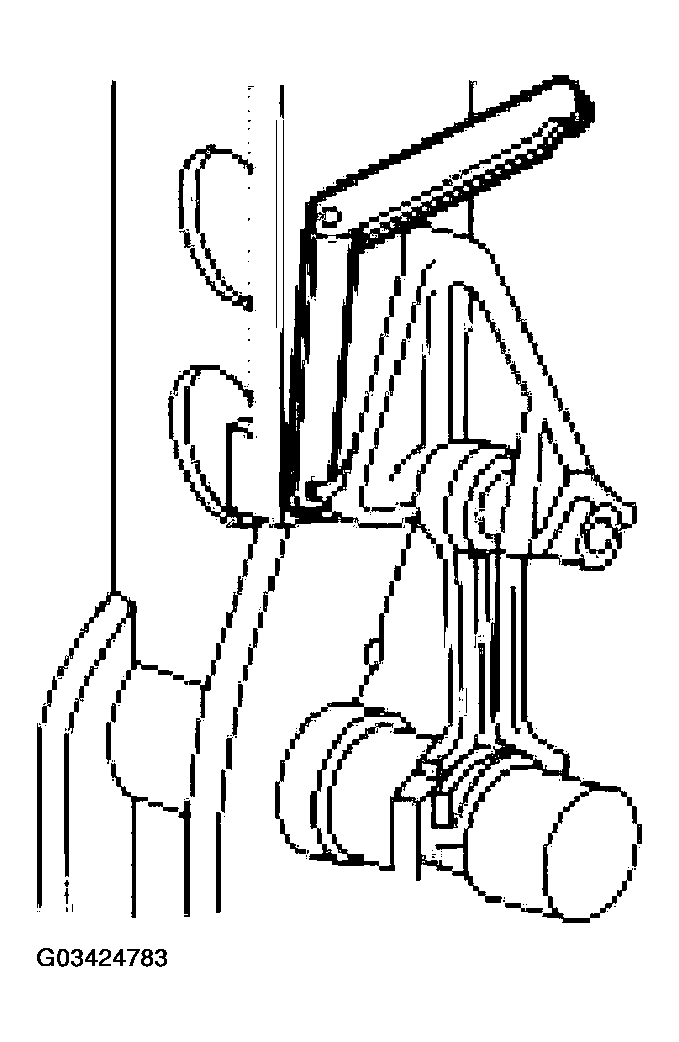

  Fig 1: Measuring Connecting Rod Twist On A Suitable Alignment Fixture
  Courtesy of FORD MOTOR CO.
