Pinpoint Test M: The Off Switch Is Inoperative

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

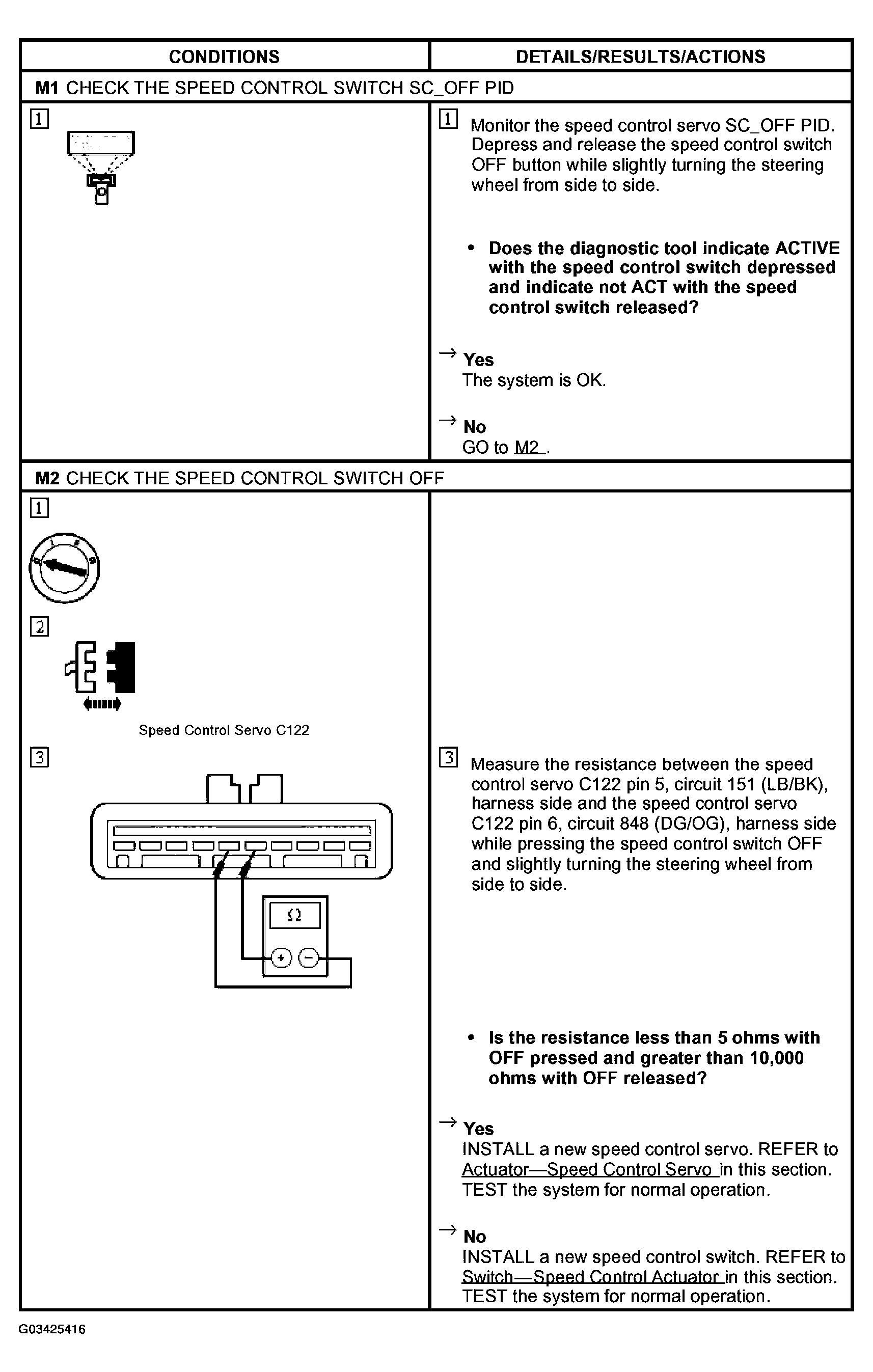

Fig 1: Pinpoint Test M: Off Switch Is Inoperative (M1 & M2)
G03425416Courtesy of FORD MOTOR CO.
