Inspection Procedure

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a straight edge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, install a new cylinder head.

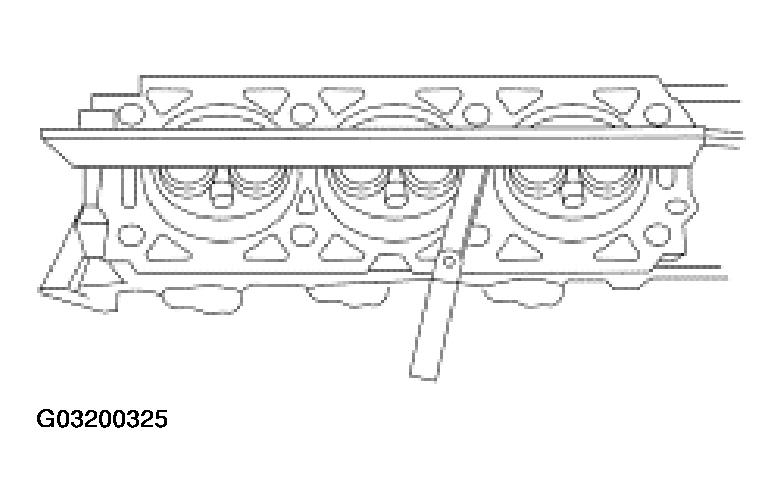

    Fig 1: Inspecting Cylinder Head For Flatness Using straight edge and feeler gauge
    G03200325Courtesy of FORD MOTOR CO.
