Parking Aid Module C4014b
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

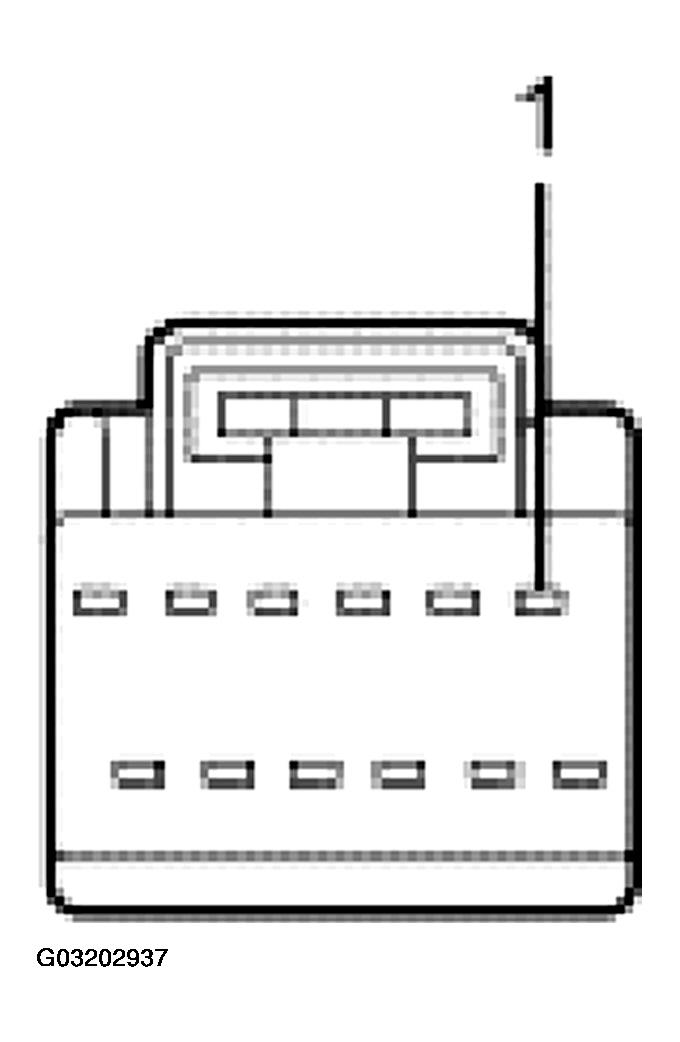

Courtesy of FORD MOTOR CO. PARKING AID MODULE C4014B PINS DESCRIPTION
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 1 |
4-GN10 (GY) UBP communication circuit. |
Less than 5 ohms between the DLC and the parking aid module. Greater than 10,000 ohms to ground with all network modules disconnected. |
