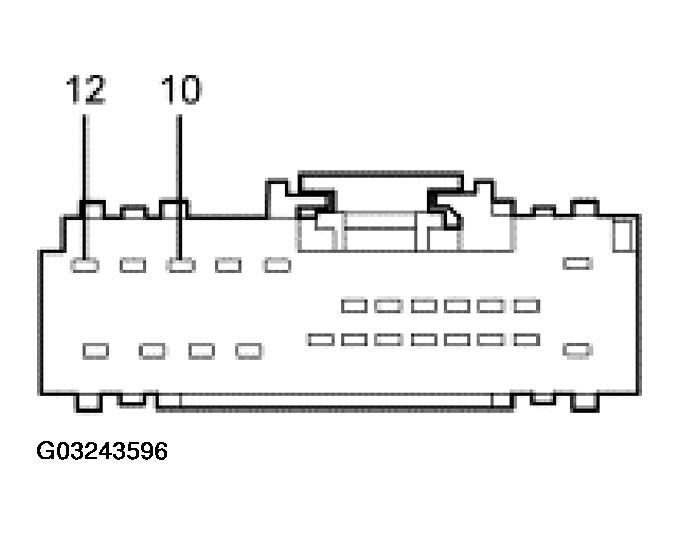

Driver Seat Module C341b
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
PIN NUMBER (S) AND CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 10 | 1490 (LB/OG) adjustable pedal motor power feed or ground (switched) | Greater than 10 volts with motor in one direction and ground when in opposite direction. Less than 5 ohms resistance between the DSM and the adjustable pedal motor connectors (both disconnected). |
| 12 | 1489 (LB/BK) adjustable pedal motor ground or power feed (switched) | Ground with motor in one direction and greater than 10 volts when in opposite direction. Less than 5 ohms resistance between the DSM and the adjustable pedal motor connectors (both disconnected). |
