Memory Set Switch C9023
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

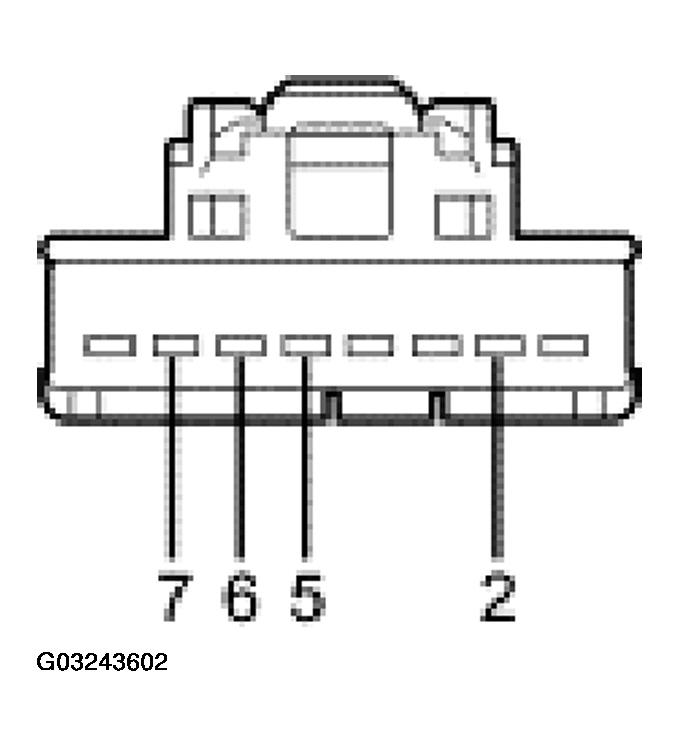

PIN NUMBER (S) AND CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | 267 (BN/LG) memory set switch No. 1 | Less than 5 ohms resistance between the memory set switch and the DSM connectors (both disconnected). |
| 5 | 270 (BN/OG) memory set switch (set) | Less than 5 ohms resistance between the memory set switch and the DSM connectors (both disconnected). |
| 6 | 268 (BK/OG) memory set switch No. 2 | Less than 5 ohms resistance between the memory set switch and the DSM connectors (both disconnected). |
| 7 | 1205 (BK) Memory set switch ground circuit | Less than 5 ohms resistance between the memory set switch connector and ground. |
