A/C Cycling Switch C130
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

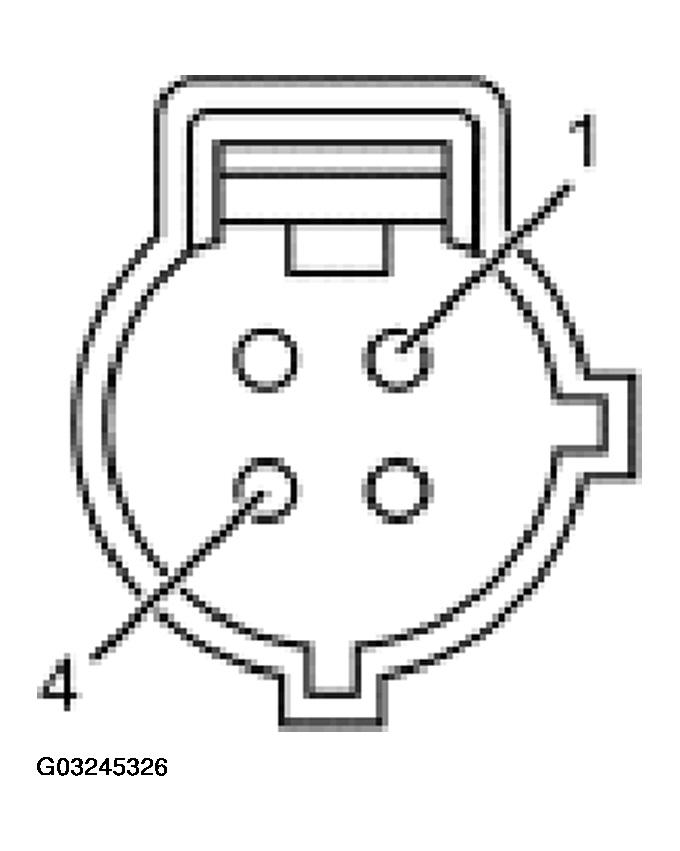

Courtesy of FORD MOTOR CO. A/C CYCLING SWITCH C130 CIRCUIT REFERENCE
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 4 |
CKT 347 (BK/YE) input to PCM |
Greater than 10,000 ohms to chassis ground and 0 volts. |
| 1 |
CKT 298 (VT/OG) A/C cycling switch voltage |
Greater than 10 volts with the ignition on. |
