Speed Control Deactivator Switch Adjustment

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the switch.
    1. Pull the switch plunger out to its full extent.
    2. Fully press the pedal.
    3. Install the switch.
    4. Slowly release the pedal.

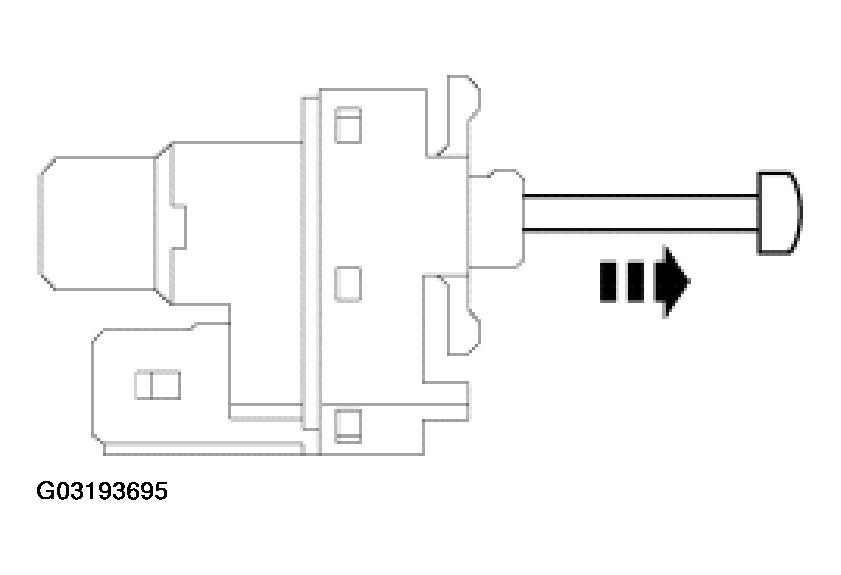

    Fig 1: Adjusting Speed Control Deactivator Switch
    G03193695Courtesy of FORD MOTOR CO.
