Speed Control Cable - 2.0L: Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

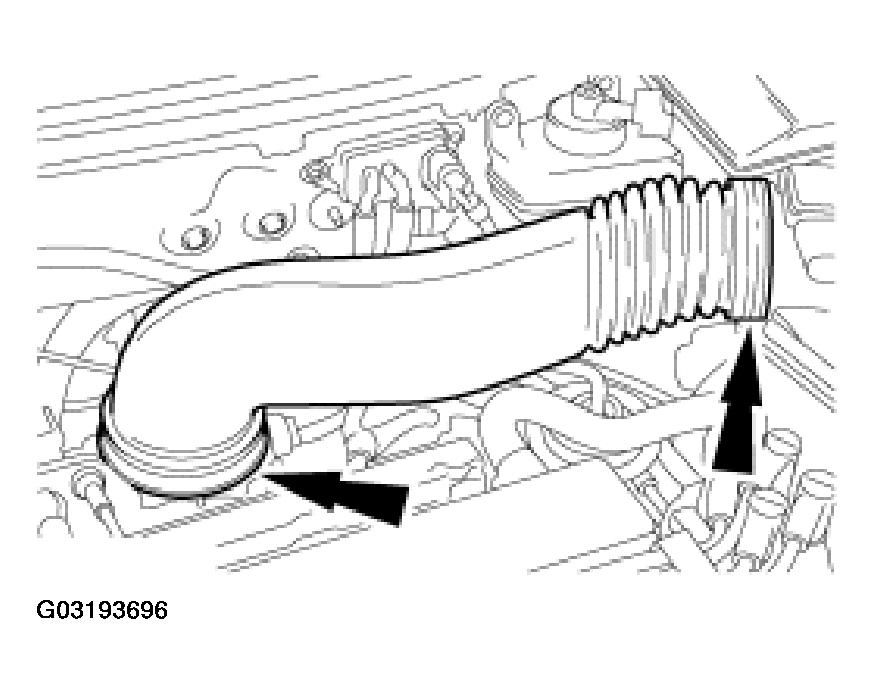

Remove the air cleaner outlet tube.

Fig 1: Removing Air Cleaner Outlet Tube
Courtesy of FORD MOTOR CO.

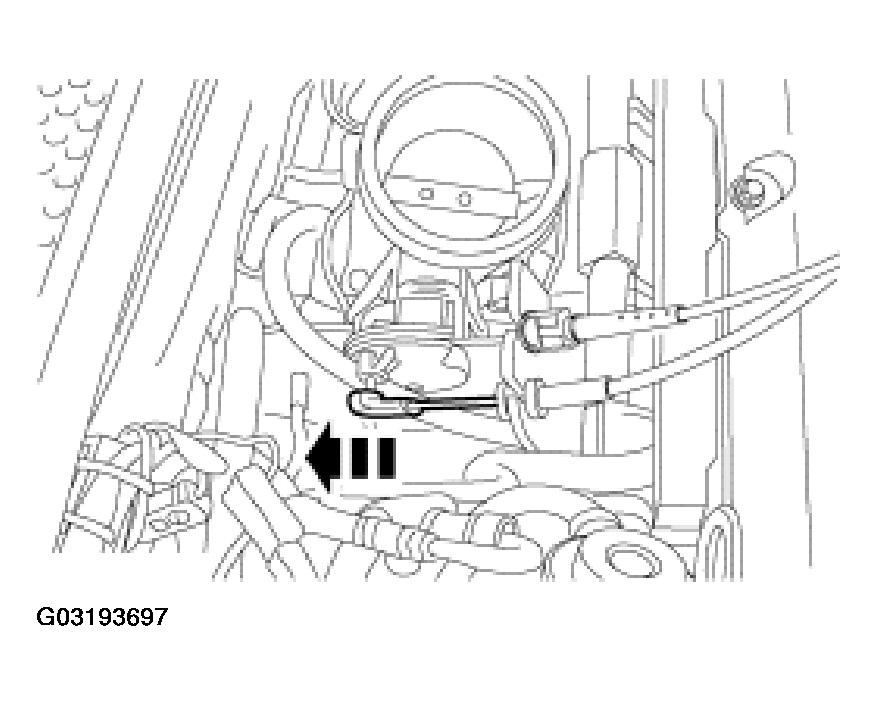

Disconnect the speed control cable from the throttle body.

Fig 2: Disconnecting Speed Control Cable From Throttle Body
Courtesy of FORD MOTOR CO.

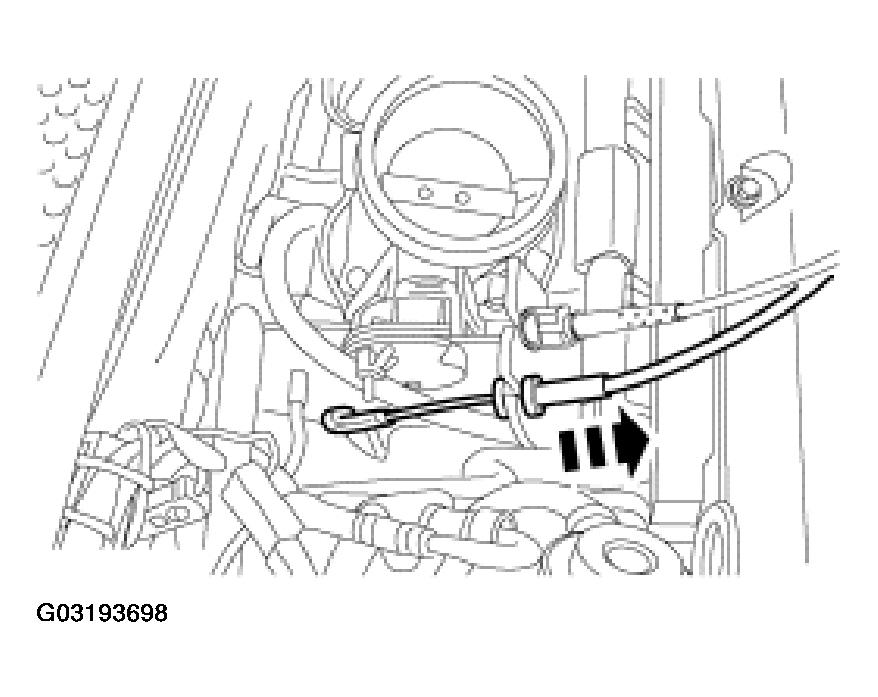

Disconnect the speed control cable from the throttle body bracket.

Fig 3: Disconnecting Speed Control Cable From Throttle Body Bracket
Courtesy of FORD MOTOR CO.

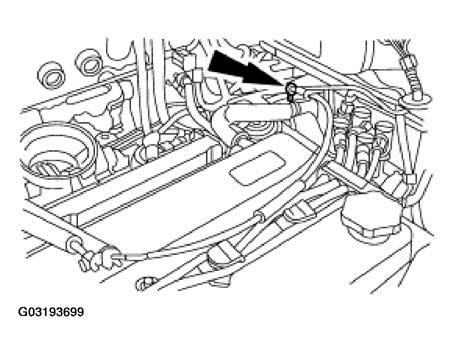

Disconnect the speed control cable from the two clips.

Fig 4: Disconnecting Speed Control Cable From Two Clips
Courtesy of FORD MOTOR CO.

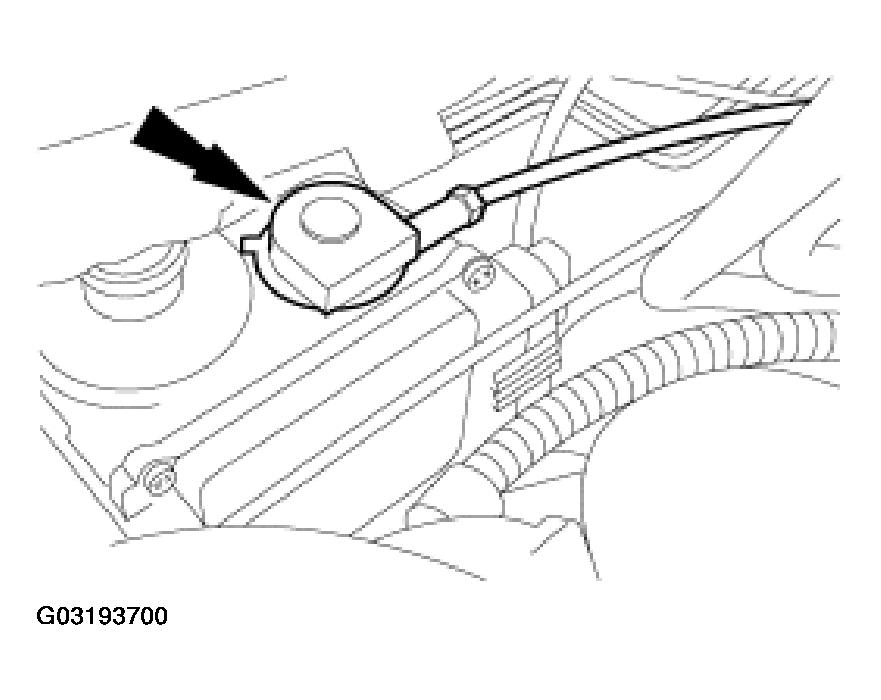

Disconnect the speed control actuator cable cover.
- Rotate the speed control actuator cable cover counterclockwise.
Fig 5: Disconnecting Speed Control Actuator Cable Cover
Courtesy of FORD MOTOR CO.

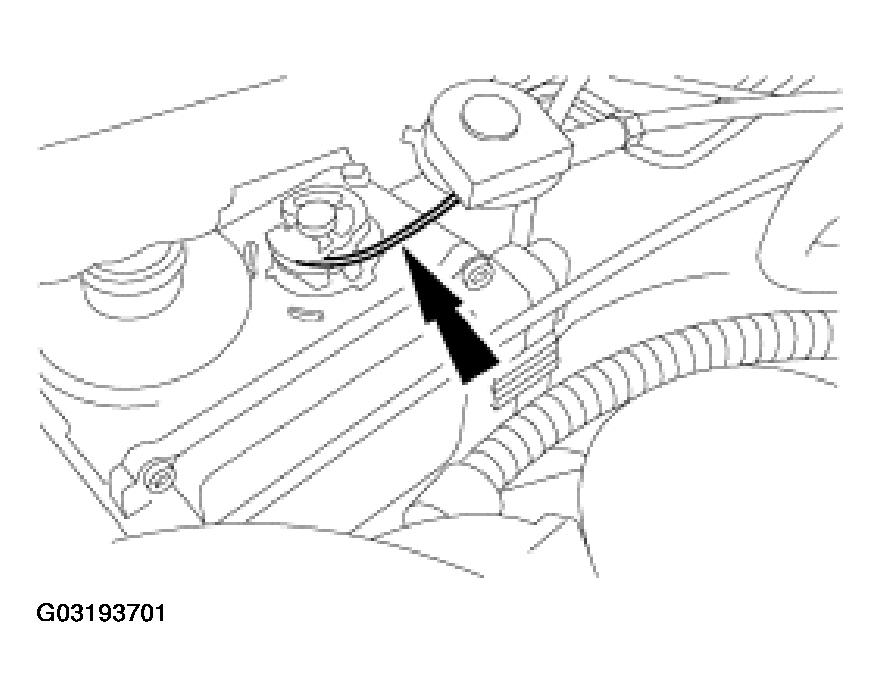

Remove the speed control cable from the speed control actuator pulley.

Fig 6: Removing Speed Control Cable
Courtesy of FORD MOTOR CO.
