Speed Control Cable - 2.3L: Removal

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

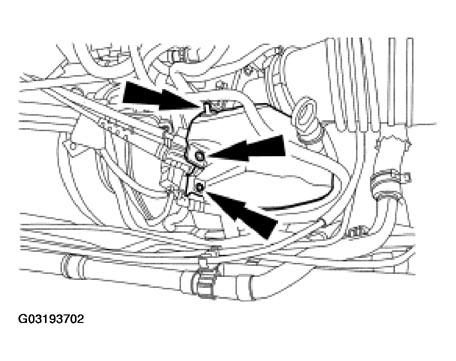

Remove the watershield, if equipped.
- Remove the screw.
- Remove the pin-type retainers.
Fig 1: Removing Pin-Type Retainers Of Watershield
Courtesy of FORD MOTOR CO.

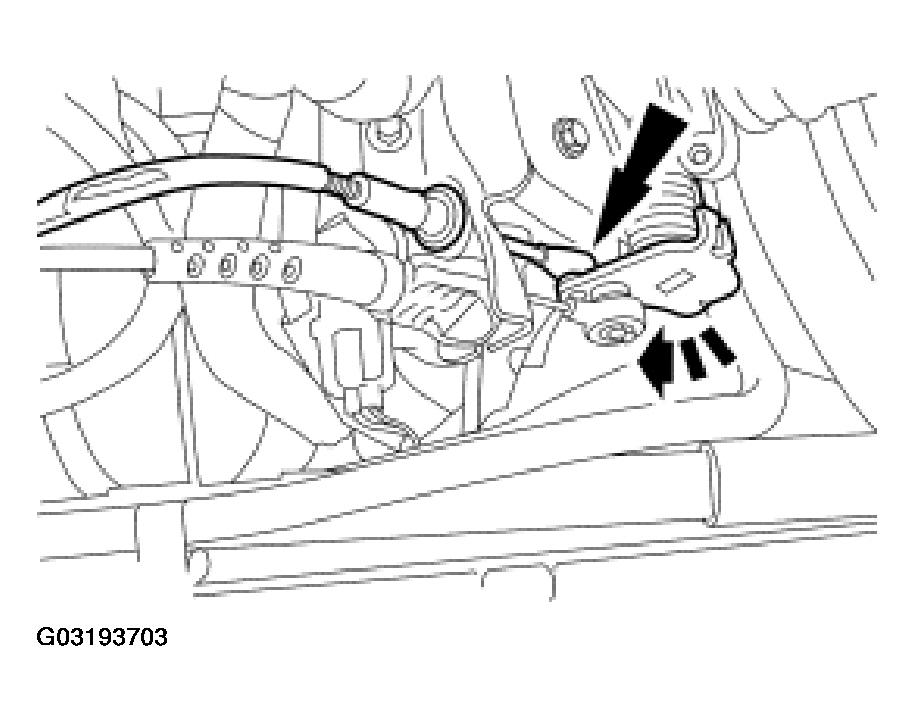

Disconnect the speed control cable from the throttle body linkage.
- Rotate the throttle body linkage and disconnect the speed control cable end by pushing forward.
Fig 2: Disconnecting Speed Control Cable
Courtesy of FORD MOTOR CO.

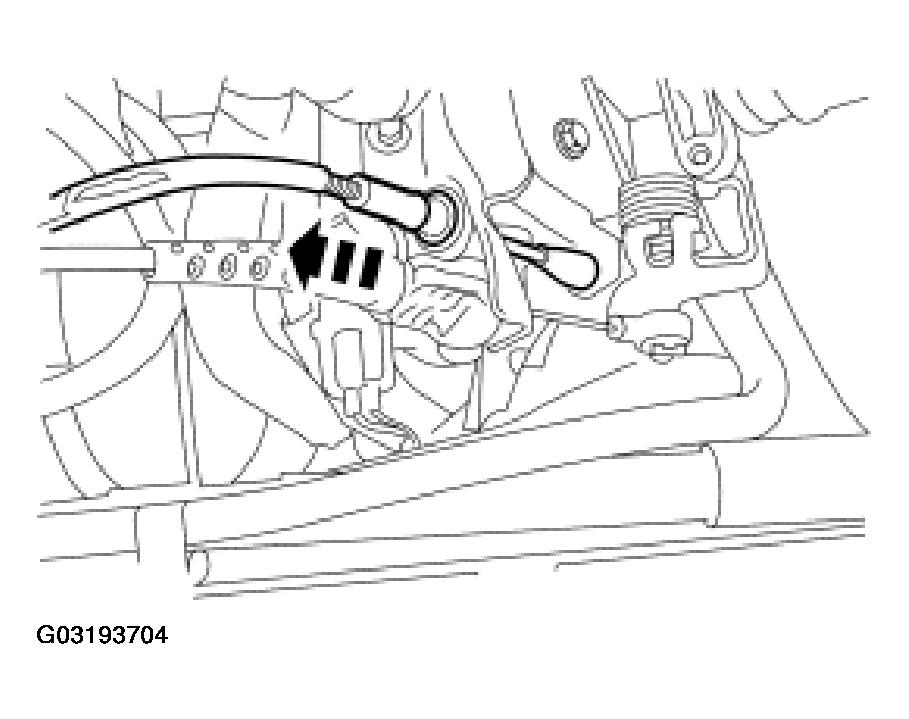

Position the speed control cable away from the throttle body bracket retaining ring.

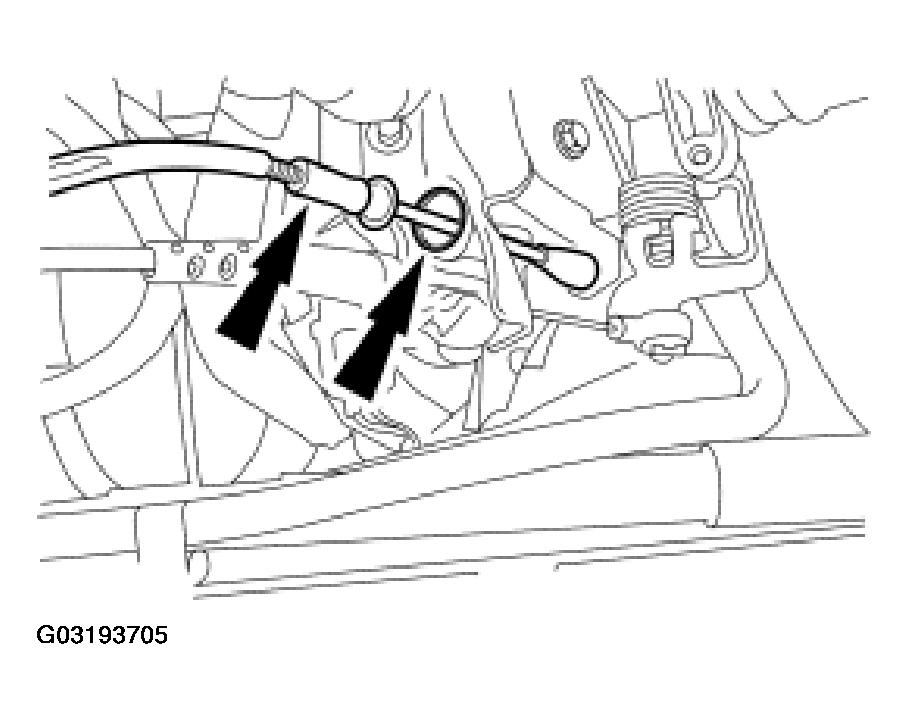

Fig 3: Positioning Speed Control Cable
Courtesy of FORD MOTOR CO.
Remove the speed control cable from the throttle body bracket.
- Using a suitable tool remove the retaining ring from the throttle body bracket.
Fig 4: Removing Retaining Ring From Throttle Body Bracket
Courtesy of FORD MOTOR CO.

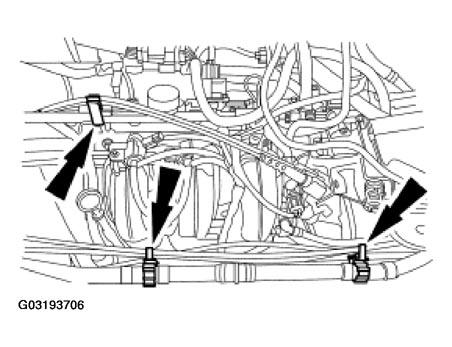

Remove the speed control cable from the retaining clips.

Fig 5: Removing Speed Control Cable From Retaining Clips
Courtesy of FORD MOTOR CO.

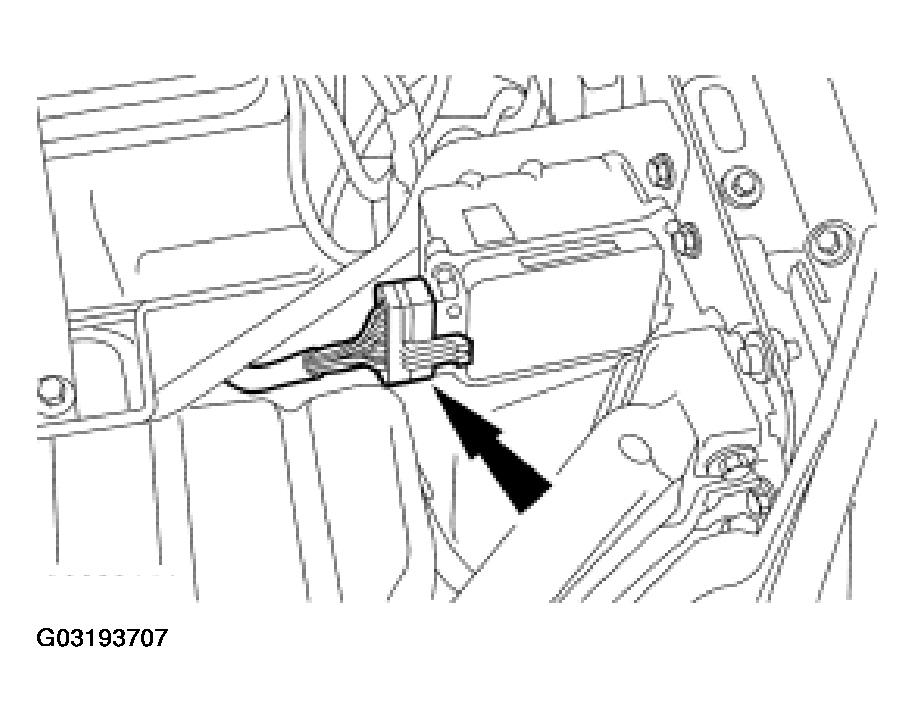

Disconnect the speed control actuator electrical connector.

Fig 6: Disconnecting Speed Control Actuator Electrical Connector
Courtesy of FORD MOTOR CO.

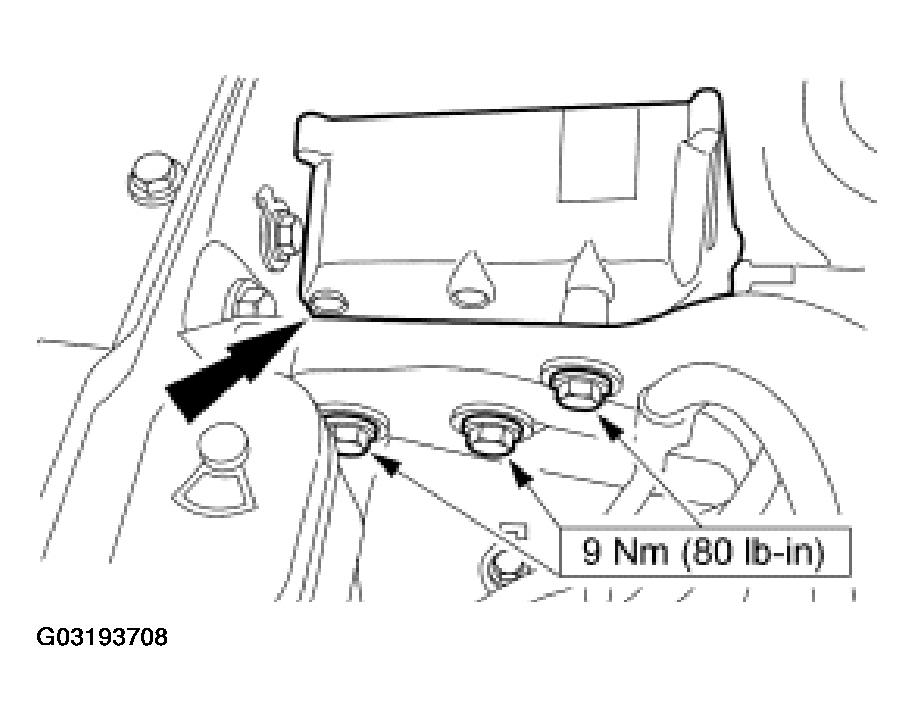

Remove the speed control actuator.
- Remove the bolts.
Fig 7: Removing Speed Control Actuator
Courtesy of FORD MOTOR CO.

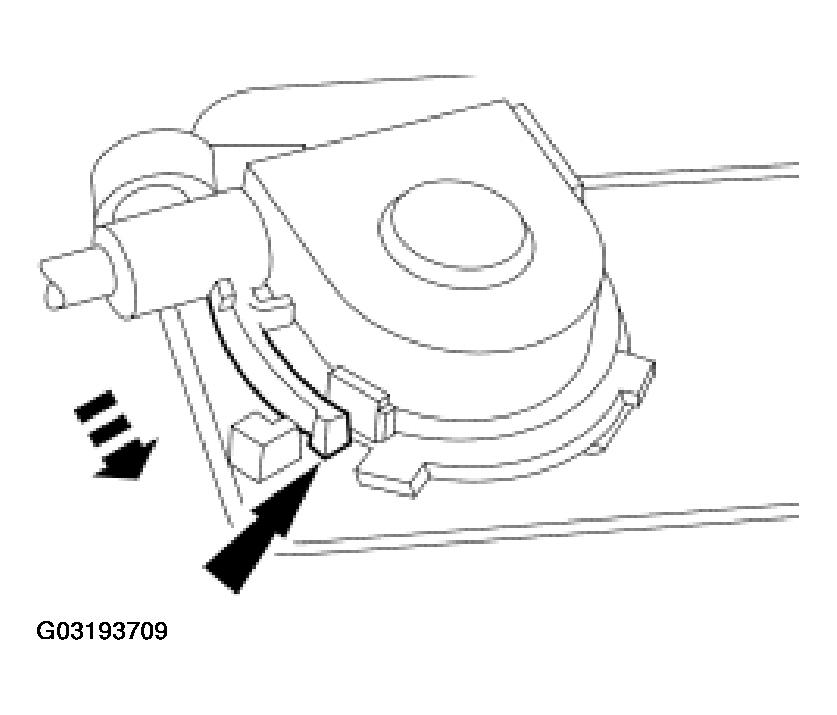

Press the locking tab and rotate the speed control cable cover to remove.

Fig 8: Removing Speed Control Cable Cover
Courtesy of FORD MOTOR CO.

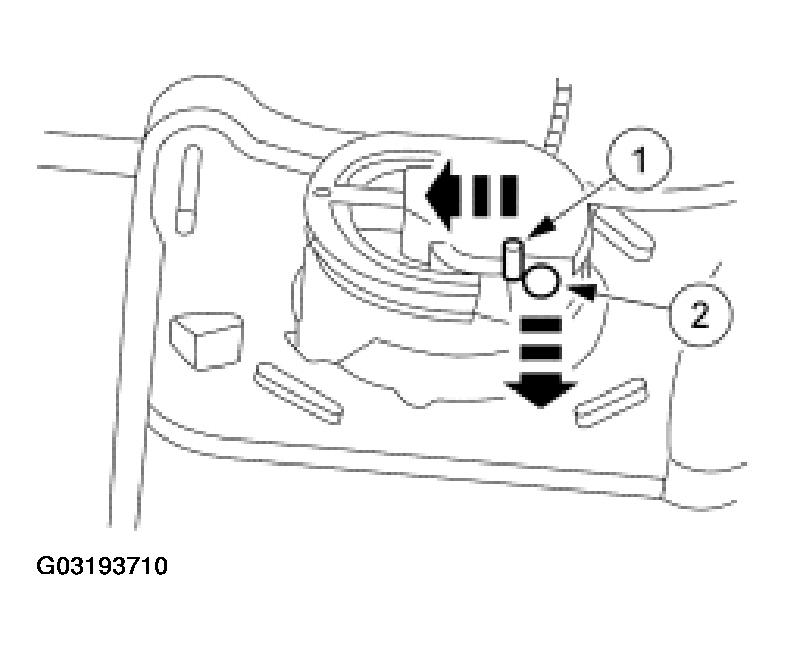

Remove the speed control cable from the speed control actuator pulley.

Fig 9: Removing Speed Control Cable From Speed Control Actuator Pulley
Courtesy of FORD MOTOR CO.
